Cable Tray Making Machine

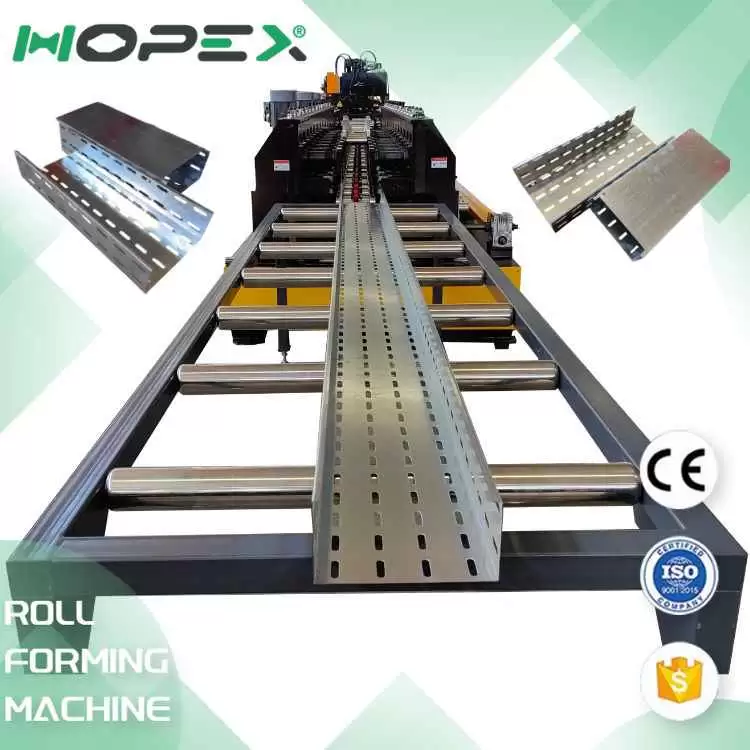

Your Ultimate Custom Cable Tray Making Machine Solution
In the world of electrical infrastructure, precision and efficiency are paramount. Our state-of-the-art Cable Tray Making Machine is engineered to meet these exacting standards, providing a comprehensive production solution for manufacturers worldwide. This all-in-one production line seamlessly integrates multiple critical processes to transform raw coil material into high-quality, custom-designed cable trays with exceptional consistency and speed.
Workflow Diagram

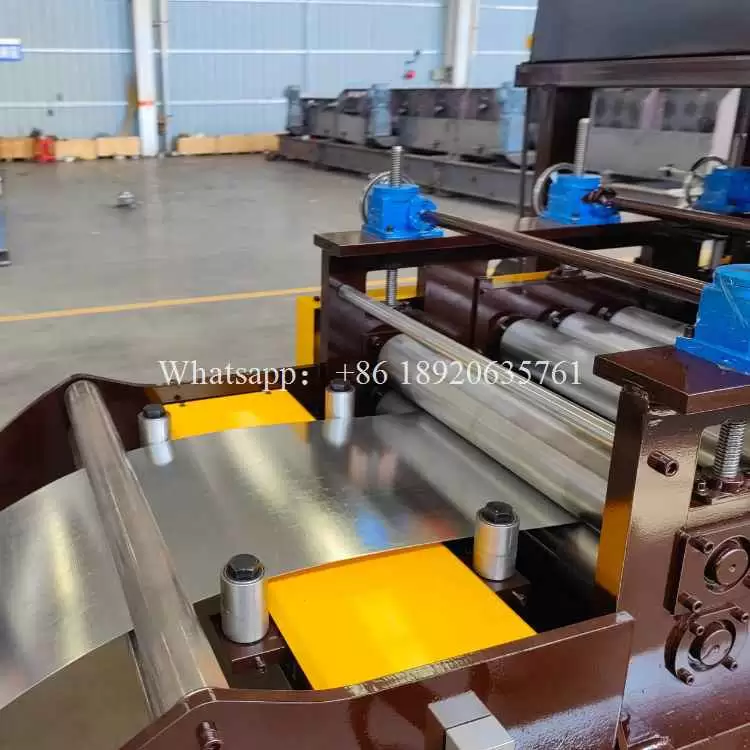

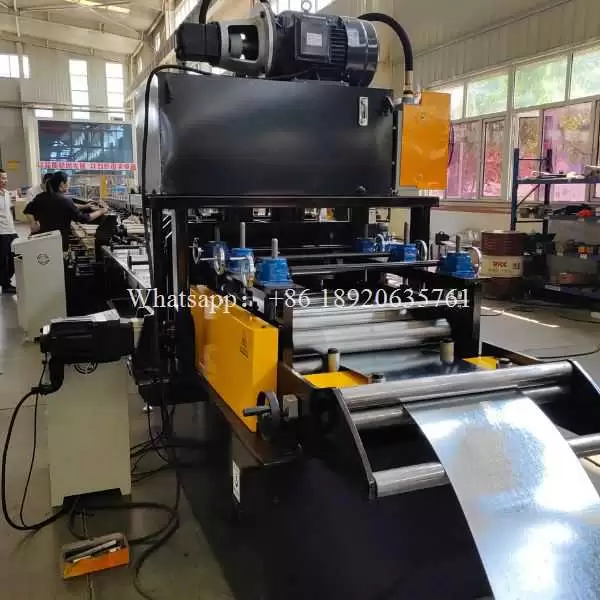

The journey begins with an automatic decoiler, ensuring a continuous and stable supply of material. This is followed by a precision leveling system that meticulously flattens the steel strip, guaranteeing a perfect surface for subsequent operations. A robust hydraulic cutting unit then delivers clean, burr-free shearing, preparing the blank for the next crucial stage: punching. Our Cable Tray Making Machine excels in customization, allowing for complete flexibility in hole patterns, shapes, and precise locations to meet any project specification.

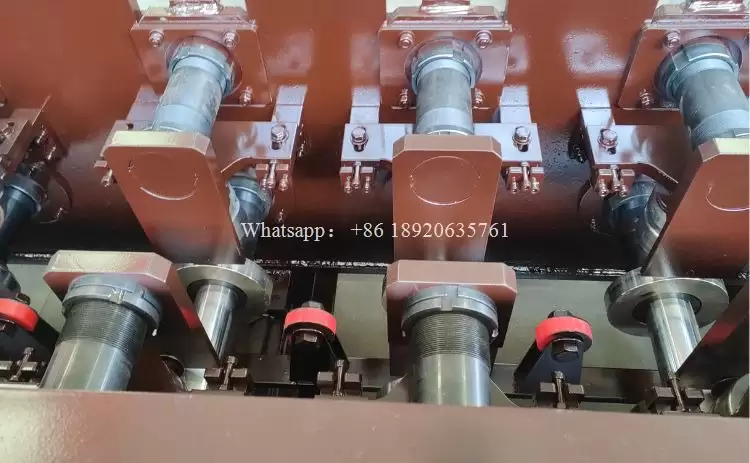

The heart of the line is our advanced roll forming station. Utilizing a meticulously designed set of hardened rolls, it gradually shapes the pre-punched material into the desired cable tray profile. A key advantage of our system is its adaptability; the profile geometry, feed width, and material thickness (within capacity) can all be customized to your exact needs. We understand that time is critical, which is why our engineering team commits to delivering detailed layout drawings within just three days.
Furthermore, we back our machinery with unparalleled support. Our engineers provide remote warranty service and real-time video guidance for setup, operation, and maintenance, ensuring your Cable Tray Making Machine operates at peak performance from day one. Choose our生产线 for a reliable, customizable, and expertly supported partnership in cable tray manufacturing. Contact us today to discuss your specific requirements.
More parameters
| Product Name | Cable Tray Making Machine Production Line |
| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |

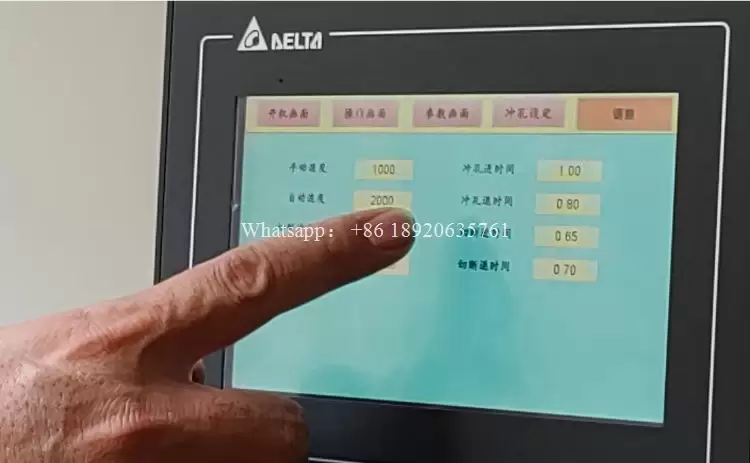

| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
