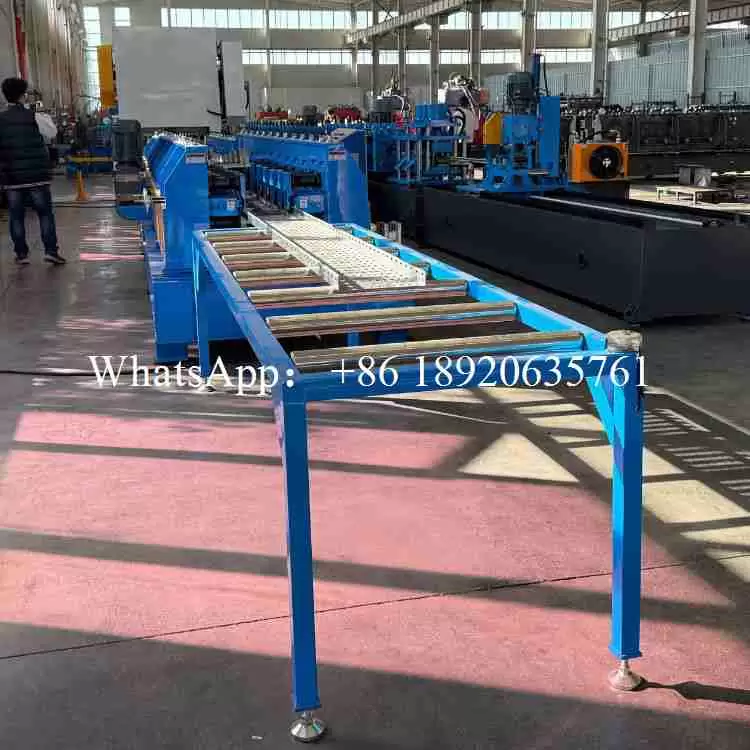

Customizable Trough Cable Tray Roll Forming Machine Line
Customizable Trough Cable Tray Roll Forming Machine Line

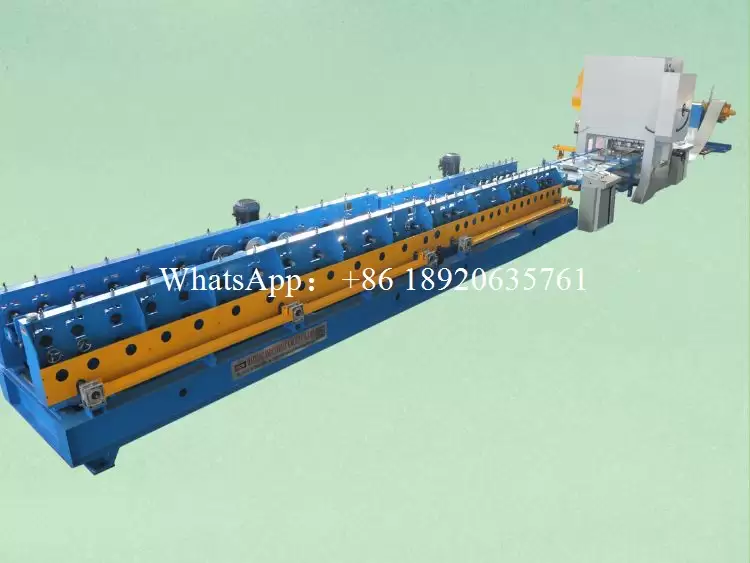

For manufacturers in the electrical infrastructure and construction industries, producing high-quality cable trays efficiently is crucial to meeting project demands and maintaining competitiveness. A state-of-the-art Customizable Trough Cable Tray Roll Forming Machine Line represents the pinnacle of automated production for these essential components. This integrated system transforms raw steel coils into finished, precise trough-style cable trays in one seamless, continuous operation, offering unparalleled control over specifications and output.
Workflow Diagram
The production journey on a Customizable Trough Cable Tray Roll Forming Machine Line is a marvel of coordinated engineering.

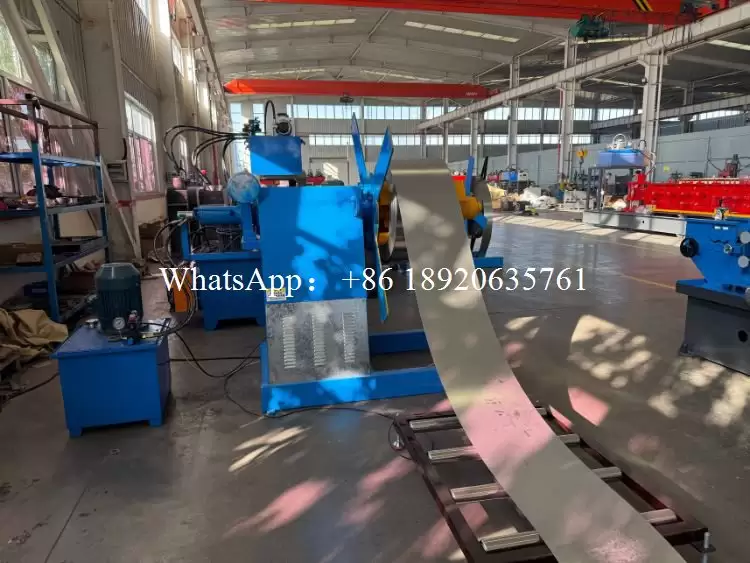

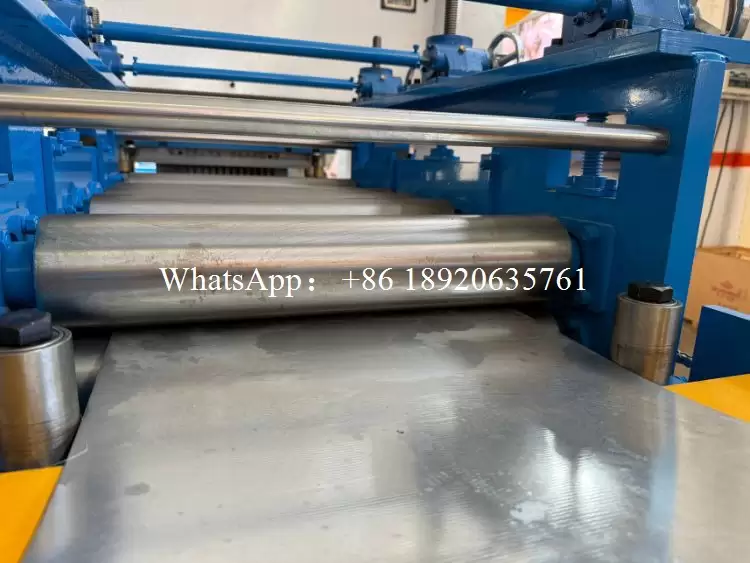

It starts with an automatic decoiler feeding the material strip into the system.

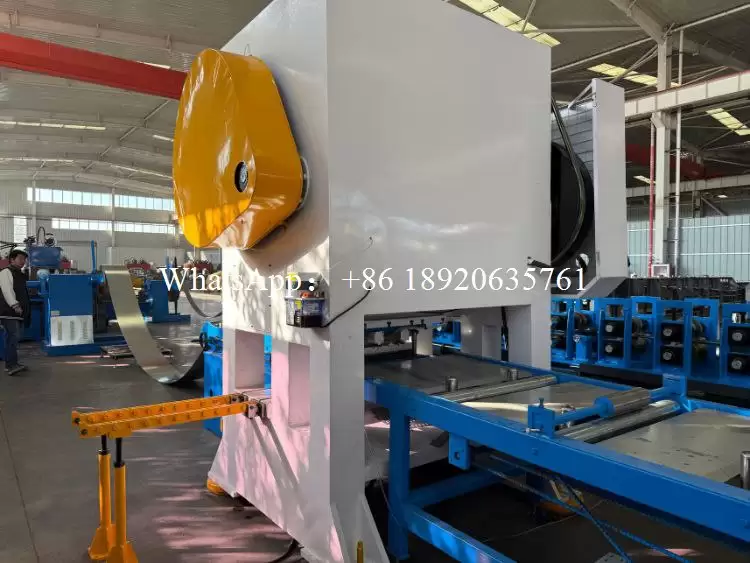

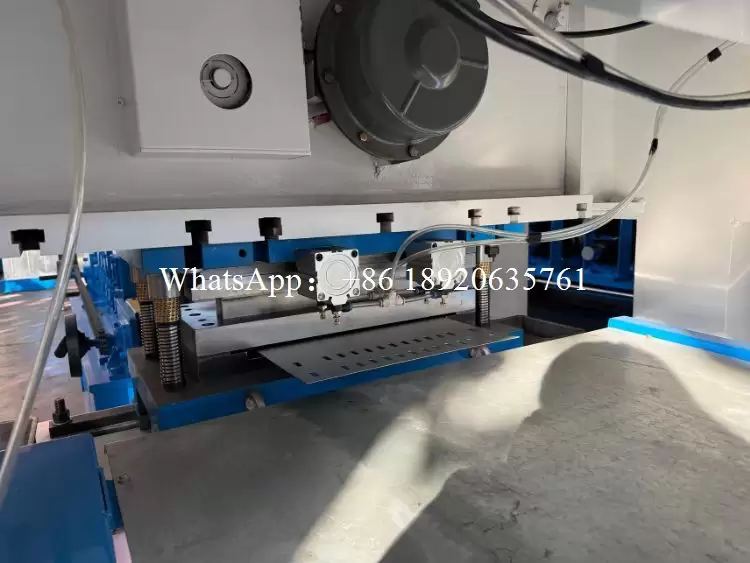

The strip then advances through a precision servo feeder to a combined punching and shearing unit. This innovative station simultaneously punches mounting holes or ventilation patterns and cuts the strip to the required length with exceptional accuracy—all before the forming process, ensuring clean, burr-free edges.

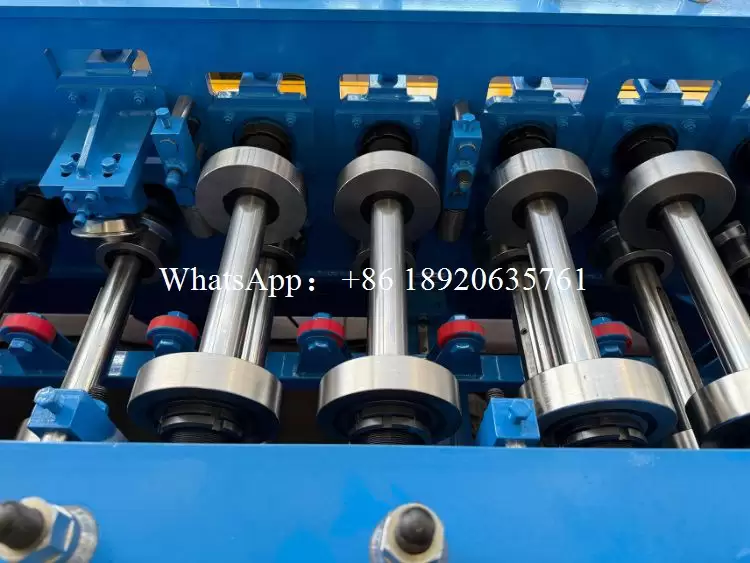

The pre-cut blank then enters the heart of the system: a series of meticulously engineered roll forming stations that progressively shape the metal into a robust trough profile.

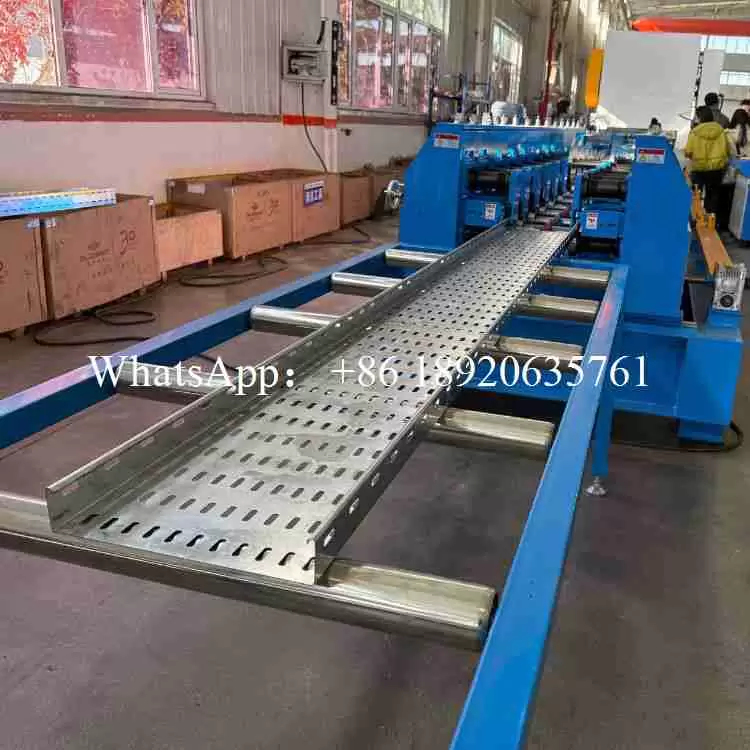

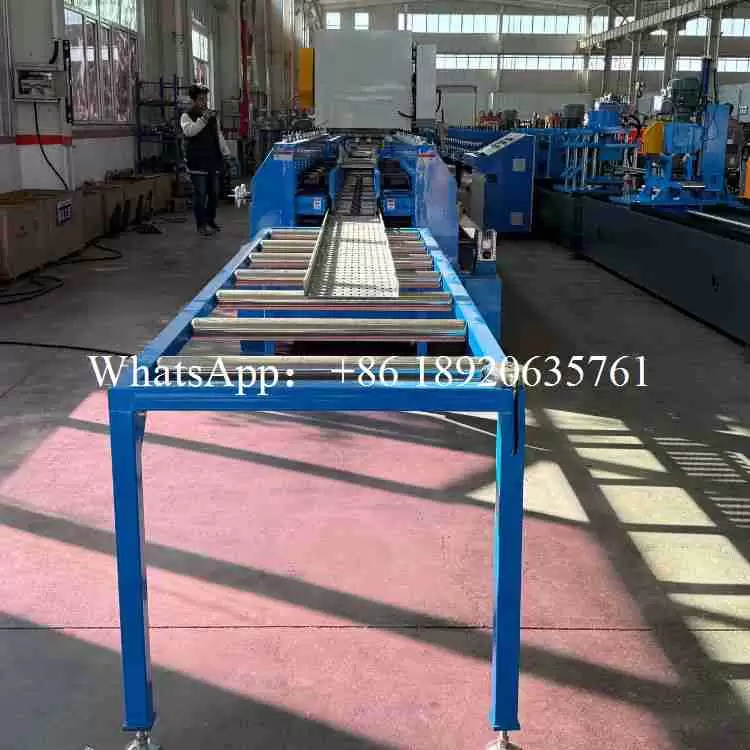

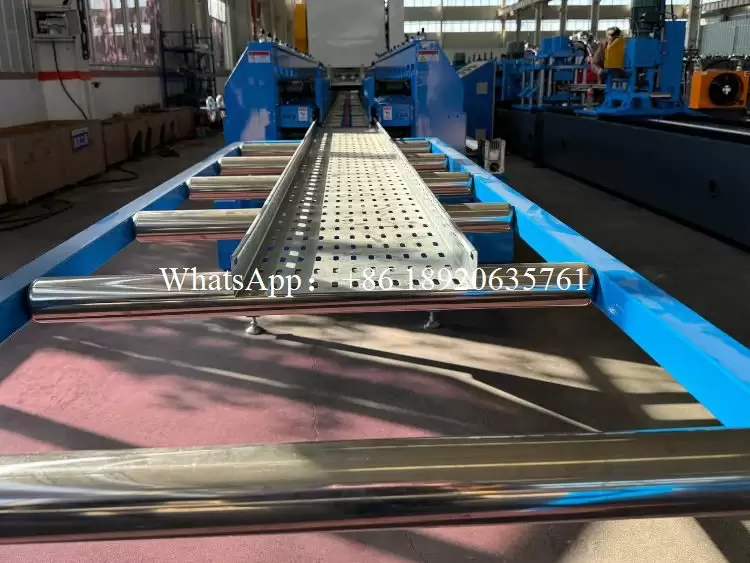

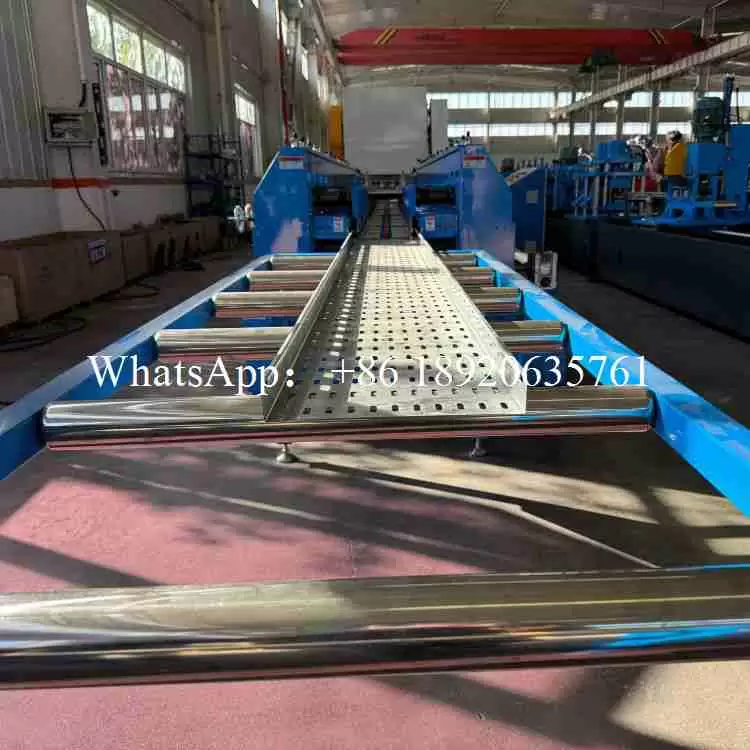

Finally, an automatic stacking or receiving system organizes the finished trays, ready for packaging or further assembly.
More parameters

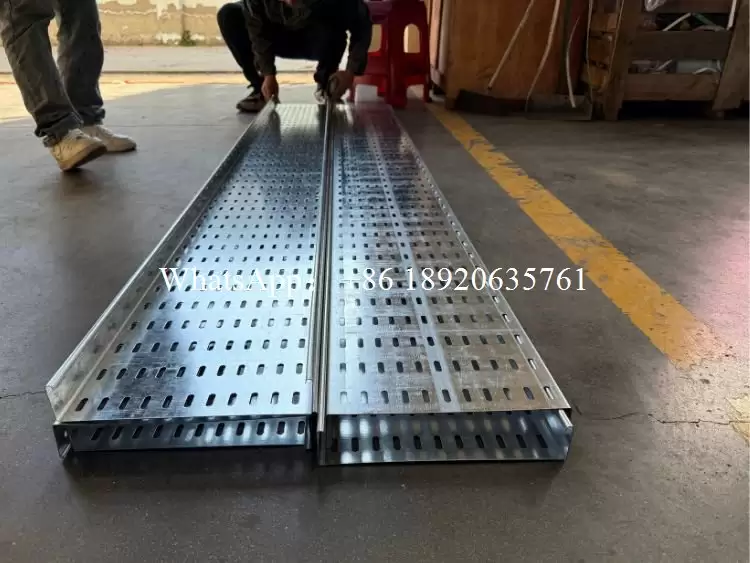

| Product Name | Customizable Trough Cable Tray Roll Forming Machine Line |
| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
The true power of this equipment lies in its inherent flexibility. As a fully Customizable Trough Cable Tray Roll Forming Machine Line, it is engineered to adapt to your specific production needs. Key parameters such as the material entry width, the forming thickness (gauge), and the operational voltage can be tailored. The user-friendly human-machine interface (HMI) with a multi-language touchscreen allows for easy operation and quick changeovers, making the line accessible to operators in diverse markets. Furthermore, we integrate smart industrial connectivity, enabling our engineers to perform remote diagnostics, provide preventive maintenance alerts, and offer real-time video guidance. This remote support ensures maximum uptime and empowers your team to resolve operational queries swiftly, protecting your investment's long-term productivity.
When evaluating the acquisition of a Customizable Trough Cable Tray Roll Forming Machine Line, it is vital to consider its role as a comprehensive production solution. The value extends far beyond the machinery itself, encompassing the ability to produce a wide range of tray dimensions on-demand, reduce material waste through precision engineering, and decrease reliance on skilled manual labor. The high degree of customization ensures the line is not just a generic asset but a core, tailored component of your manufacturing strategy.
