automated perforated cable tray machine
The Backbone of Modern Cable Management: Precision Perforated Cable Tray Machine

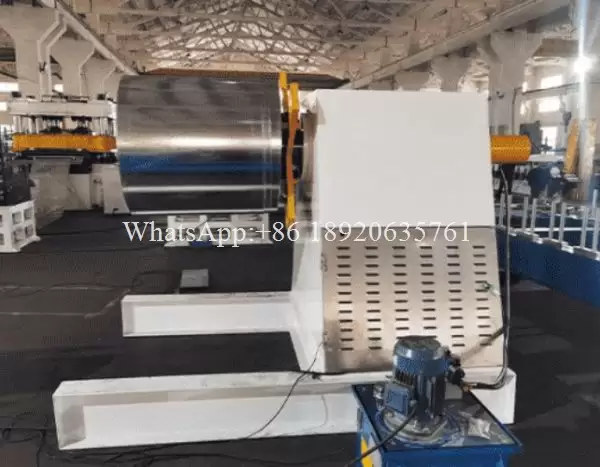

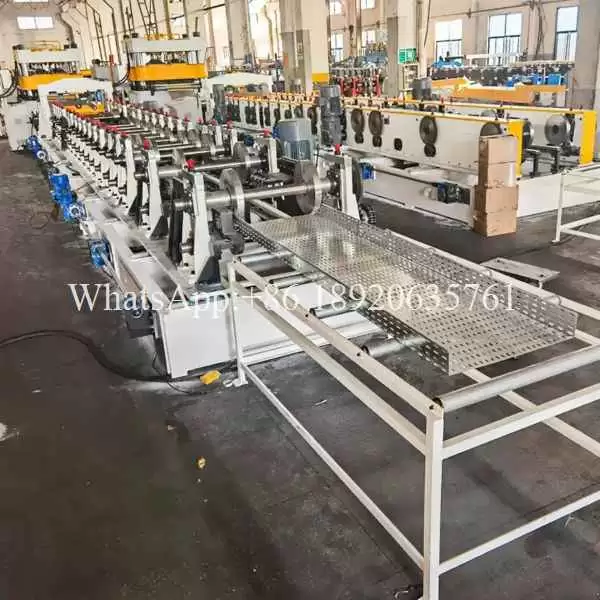

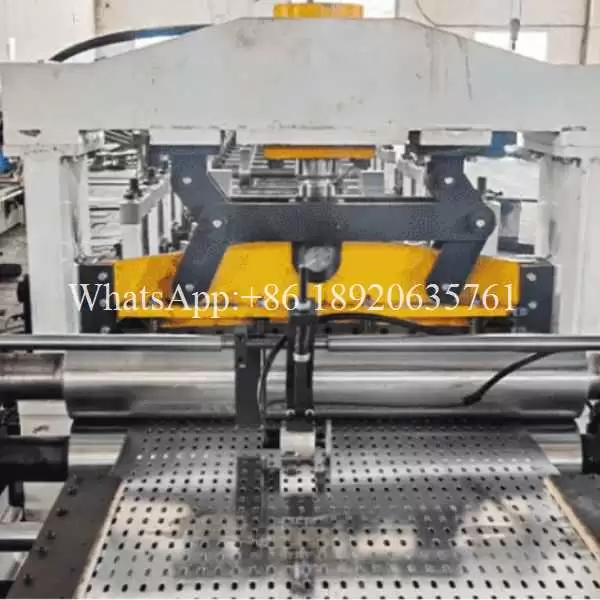

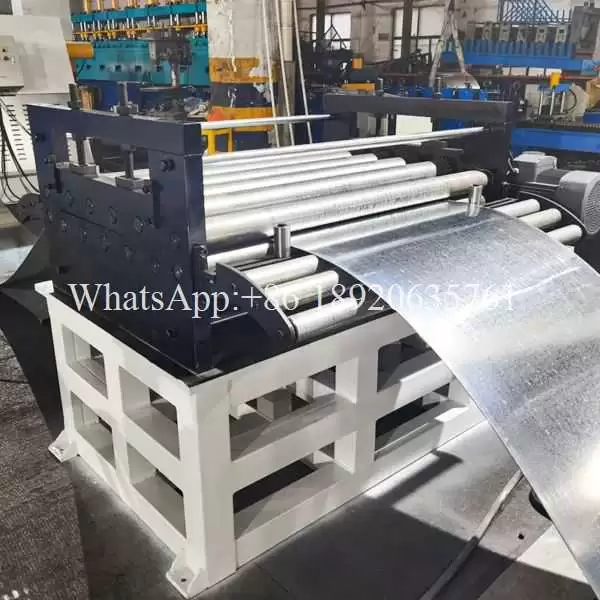

The perforated cable tray machine represents the pinnacle of efficiency in electrical infrastructure manufacturing, transforming raw steel coils into standardized cable management systems with integrated ventilation perforations. This fully automated production line integrates six critical processes—decoiling, leveling, punching, roll forming, cutting, and stacking—to produce cable trays compliant with standards. Capable of outputting 15 meters per minute, the perforated cable tray machine delivers the structural integrity required for heavy industrial applications while ensuring optimal heat dissipation through precision perforations.

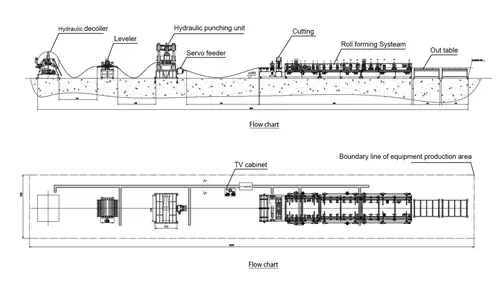

Workflow Diagram
More parameters
| Product Name | perforated cable tray machine |

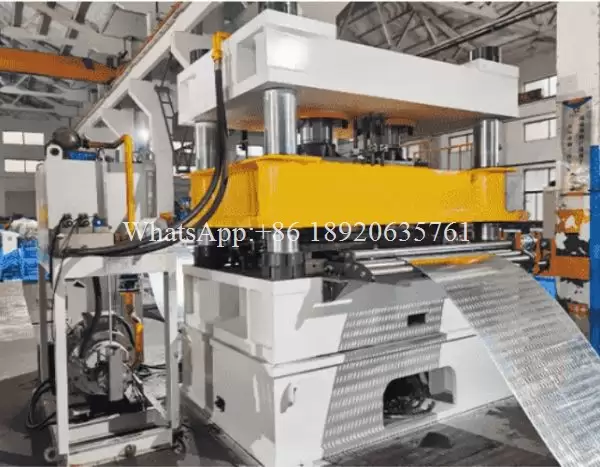

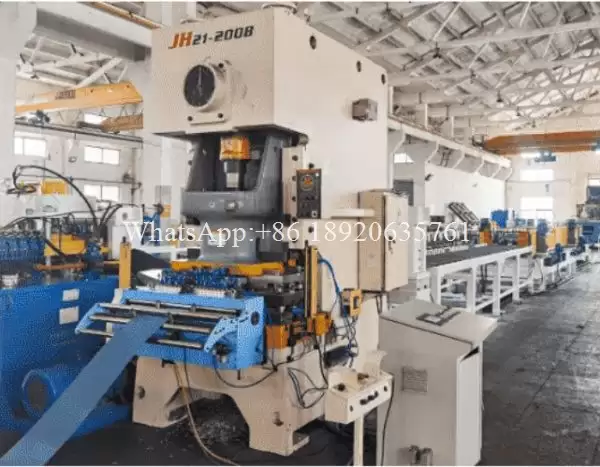

| Punching | Two-station punching machine for punching seven-shaped button holes and marking thickness 0.5-1.5 (optional) |

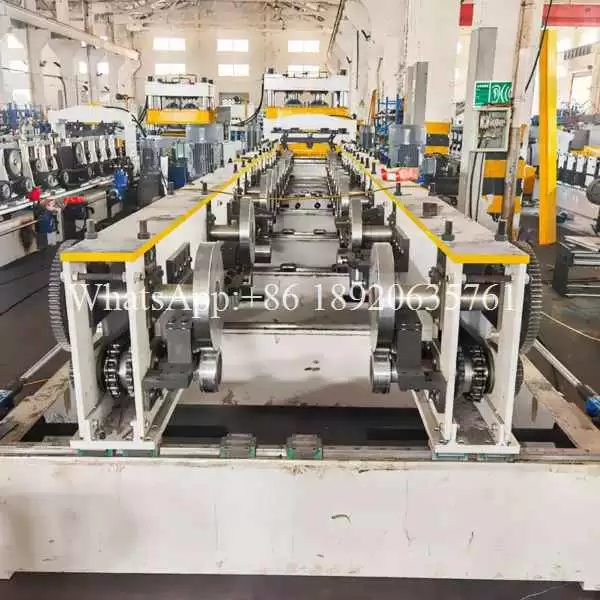

| Flat sheet machine roll forming part | Electric feed port 8-row roller forming Small side leveling Guide scale plate to adjust pressure Pressure spring adjustment Side reinforcement ribs and closing motor power (1.5KW) |
| Main motor power | 7.5 kw |
| Hydraulic components | Hydraulic station 2*7.5KW. Solenoid valve 220V. 3 stations |
| Cutting type | Hydraulic three-piece shear |
| Produce speed | 8-16m/min |
| Shaft material | Cr12 |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 0.5-2.5mm |
| Rows | 26 |
| Hydraulic station | Multiple solenoid valves, solenoid overflow valve, cooling system, motor power (7.5X2) KW, oil tank capacity (450) liters |
| Feeding width | 200-1250mm（200-800） |
Machine Introduction: Precision Engineered for Performance

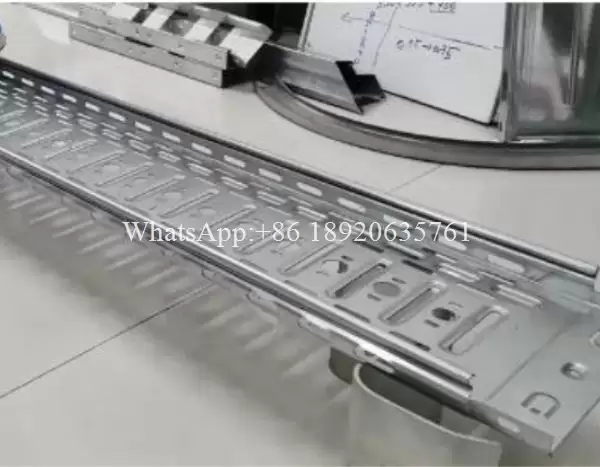

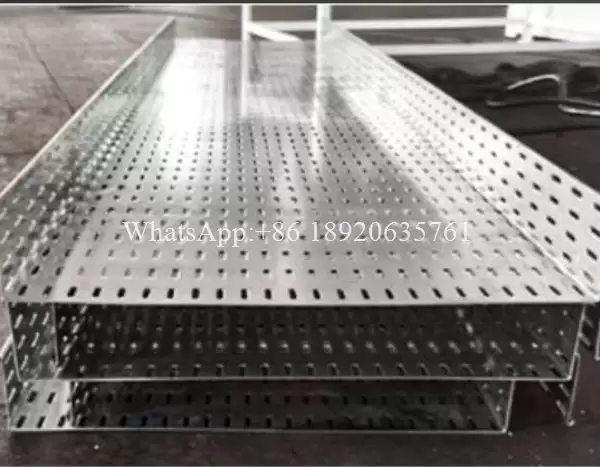

A perforated cable tray machine is not a single unit, but an integrated, sequential system meticulously designed for high-volume, consistent production. Its core purpose is to fabricate continuous lengths of perforated cable tray, characterized by their distinctive U-shaped profile and precisely punched holes that allow for ventilation, cable access, and reduced weight. Modern perforated cable tray machines are marvels of automation, typically featuring CNC (Computer Numerical Control) systems that govern every stage of the process. This ensures exceptional dimensional accuracy, repeatability, and the flexibility to produce various tray widths, heights, side rail configurations, and perforation patterns simply by changing tooling and inputting new parameters.
Constructed from heavy-duty steel frames for stability and vibration resistance, a perforated cable tray machine incorporates powerful servo motors, precision gearboxes, and hardened tooling to withstand the demanding forces involved in shaping thick steel. Safety features like light curtains, emergency stops, and guarding are integral to protect operators. The efficiency and output consistency of a well-tuned perforated cable tray machine are fundamental to meeting the large-scale demands of construction and electrical projects.

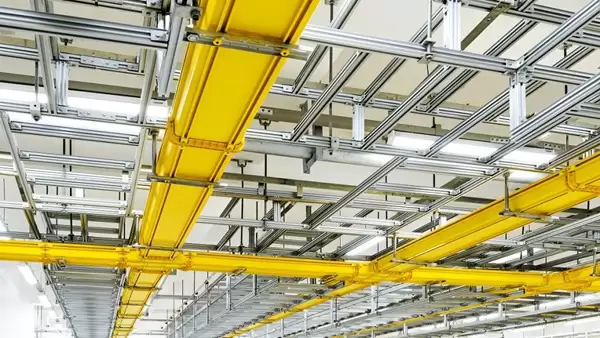

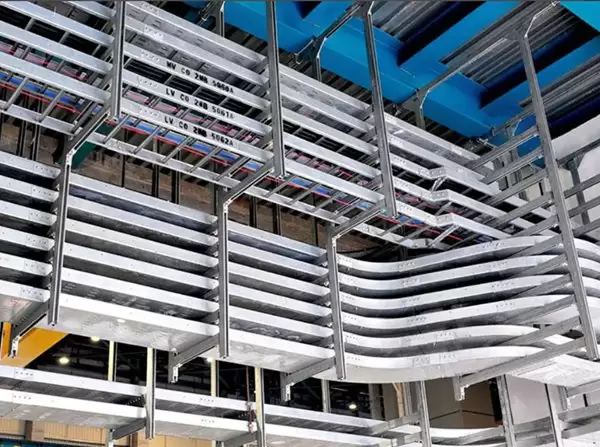

Application Scenario
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
