Cable Tray Making Machine Production Line
Revolutionizing Cable Tray Manufacturing: The Advanced Cable Tray Making Machine Production Line

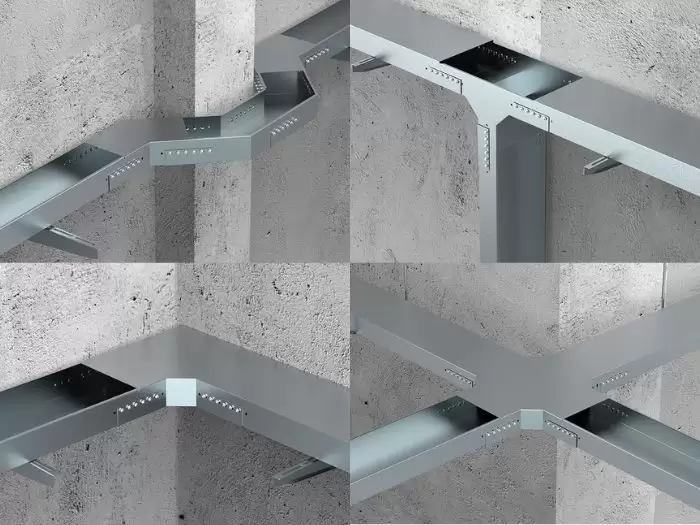

The electrical infrastructure and construction industries rely heavily on high-quality cable management solutions. At the forefront of this essential manufacturing sector is the complete Cable Tray Making Machine Production Line, a symphony of engineering precision and automation designed for unparalleled efficiency and output. Our company, as a specialist manufacturer, provides an integrated solution that transforms raw coil material into finished, customized cable trays in a single, continuous operation. This advanced Cable Tray Making Machine Production Line embodies our commitment to innovation, quality, and customer success, offering a seamless journey from metal coil to packaged product.
Workflow Diagram

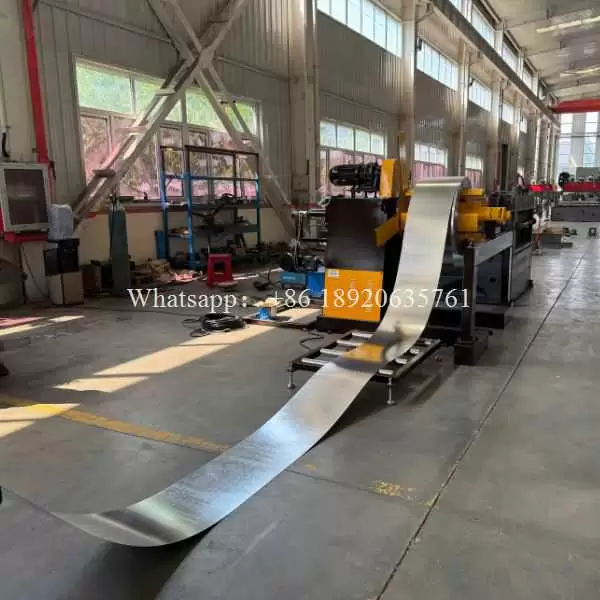

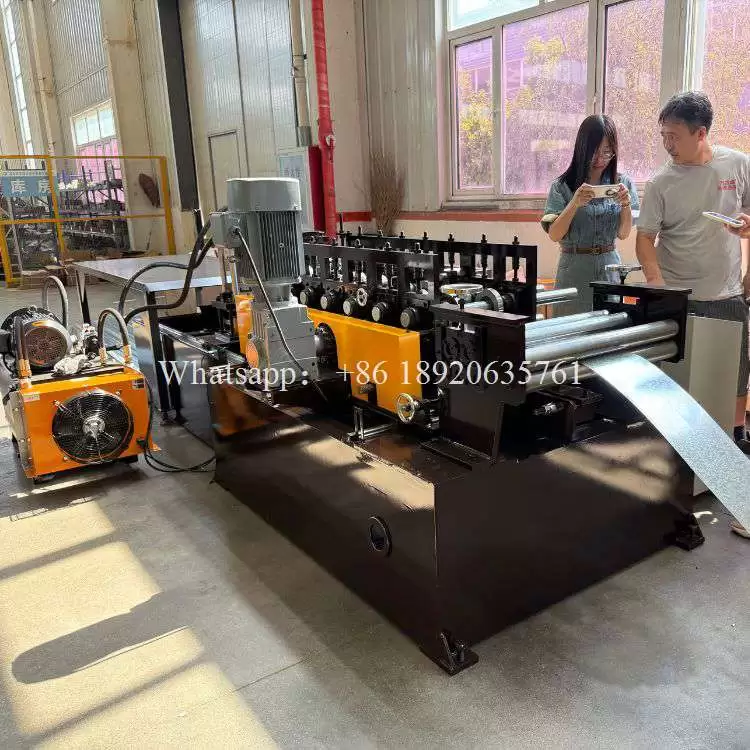

The production process begins with a robust and reliable uncoiling system. This unit is designed to handle heavy steel or aluminum coils, ensuring a steady and consistent feed of material into the line. Stability at this initial stage is critical for preventing production bottlenecks and ensuring the smooth flow of the entire operation. Following the uncoiler, the material passes through a precision leveling machine. This stage is vital for eliminating any internal stresses or imperfections from the coiling process, resulting in perfectly flat and uniform material. This meticulous preparation is what allows the final product to achieve its exceptional structural integrity and flawless appearance.

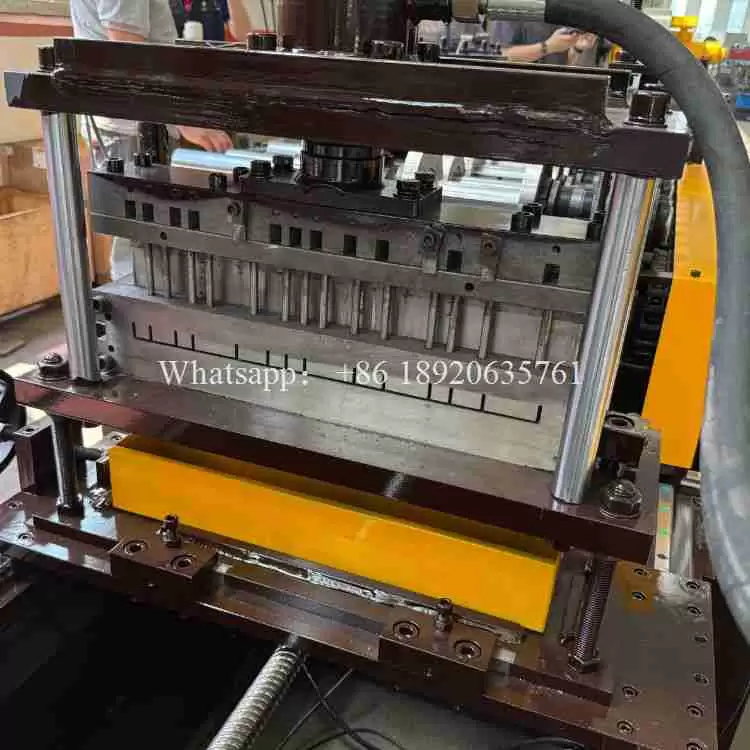

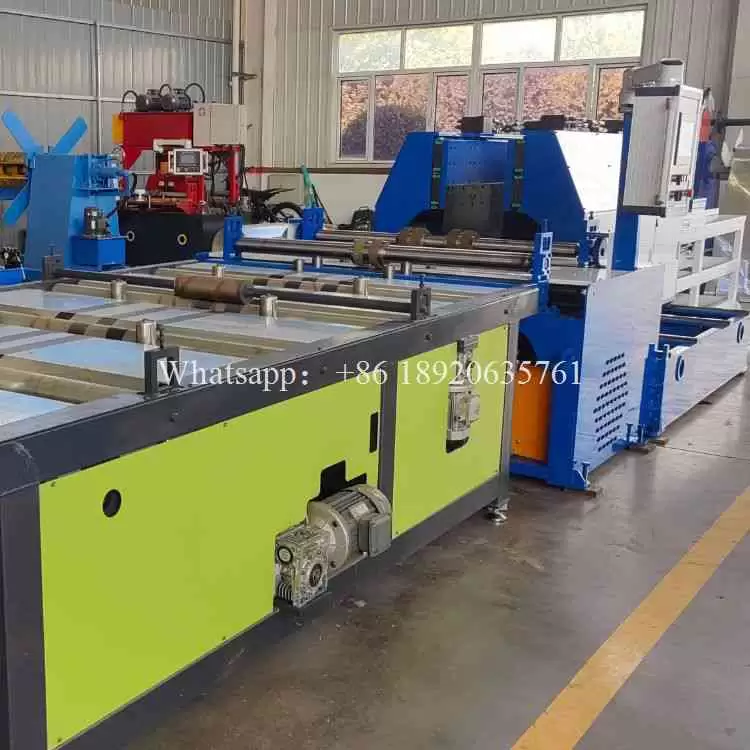

The heart of the Cable Tray Making Machine Production Line often includes a servo-driven feeding system, which advances the material with pinpoint accuracy. This sets the stage for the next critical component: the hydraulic punching station. Here, our line's versatility truly shines. Custom hole patterns, shapes, and sizes—whether for ventilation, cable access, or mounting—are punched into the flat sheet with extreme precision. The flexibility of this station allows for rapid changeovers between different designs, making the entire Cable Tray Making Machine Production Line ideal for both high-volume runs and customized, smaller batches.

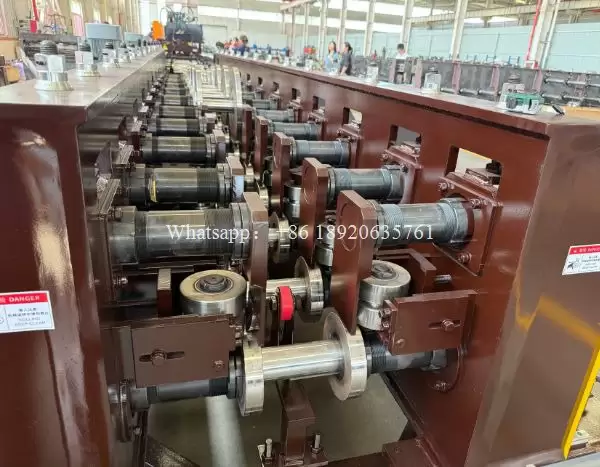

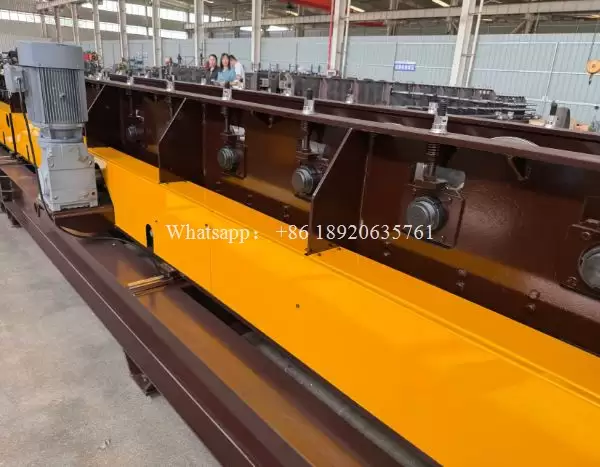

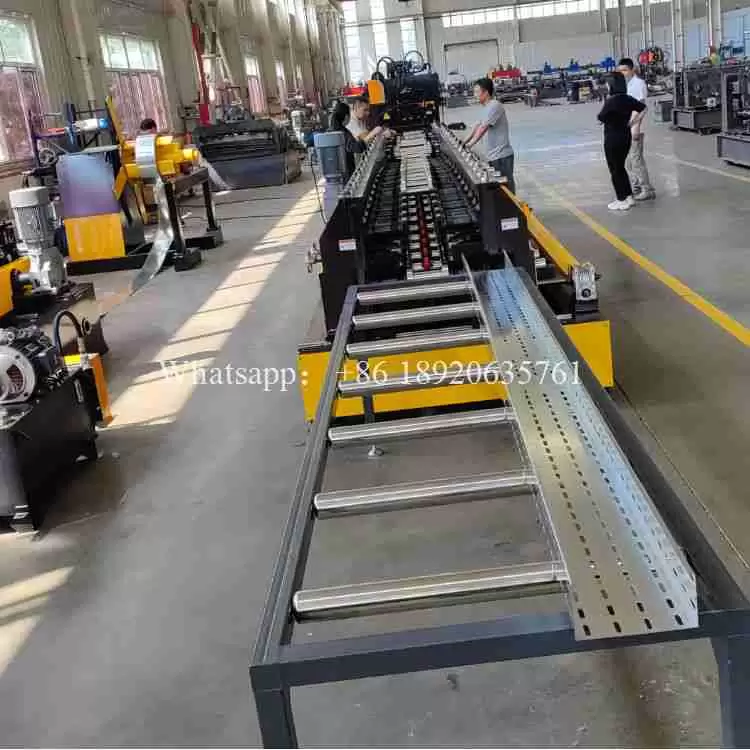

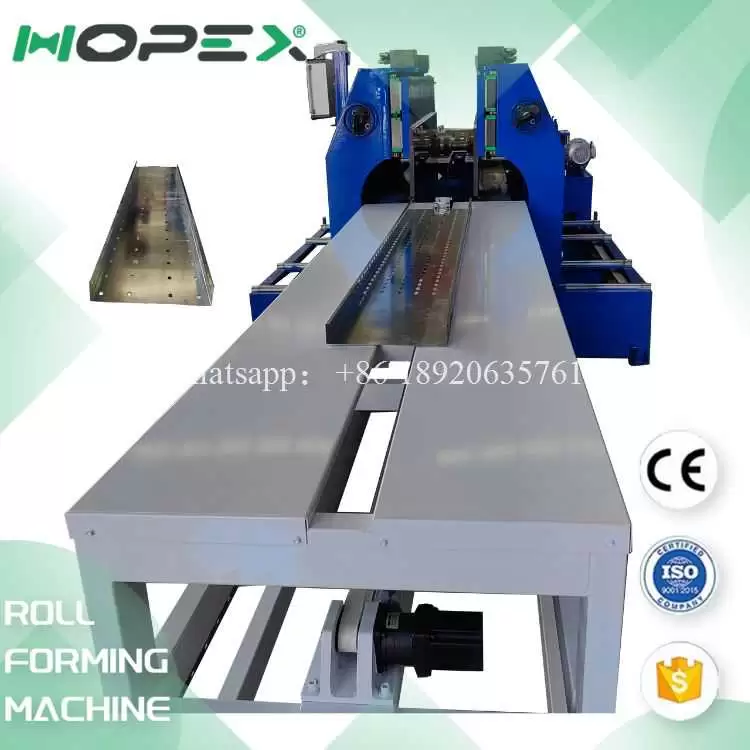

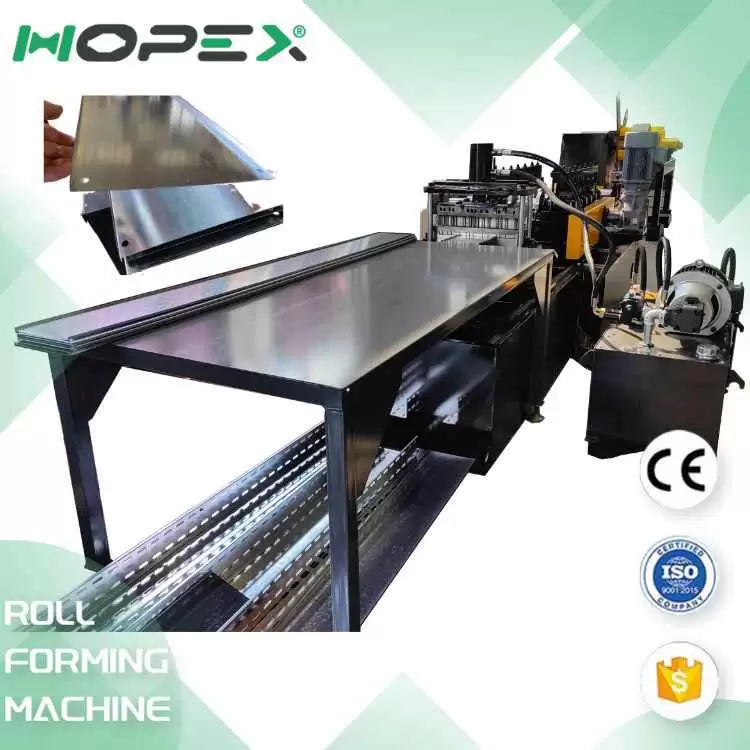

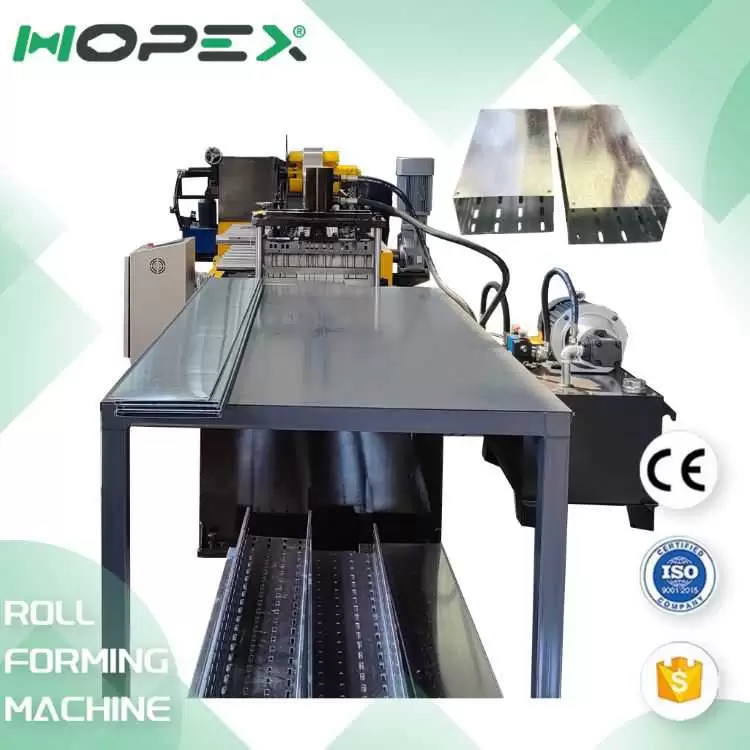

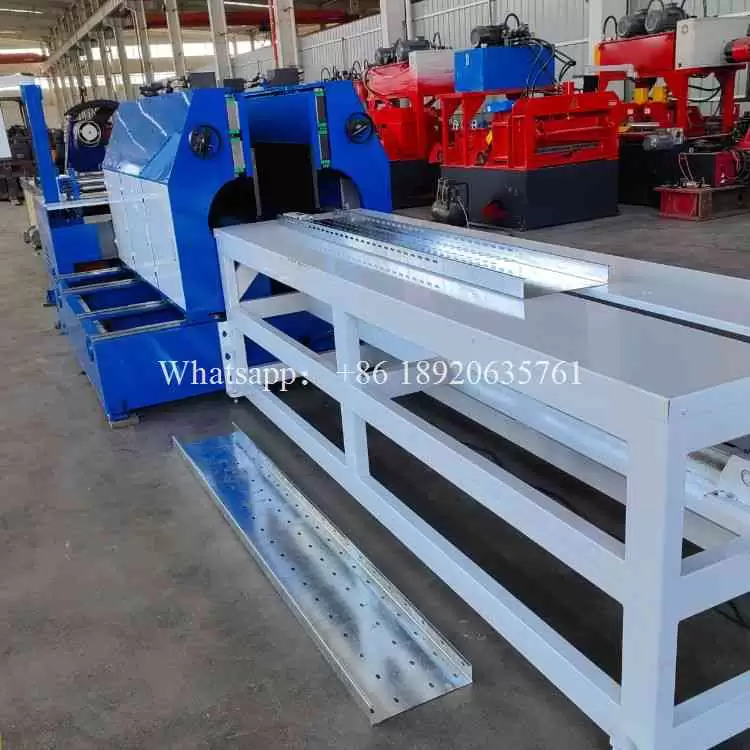

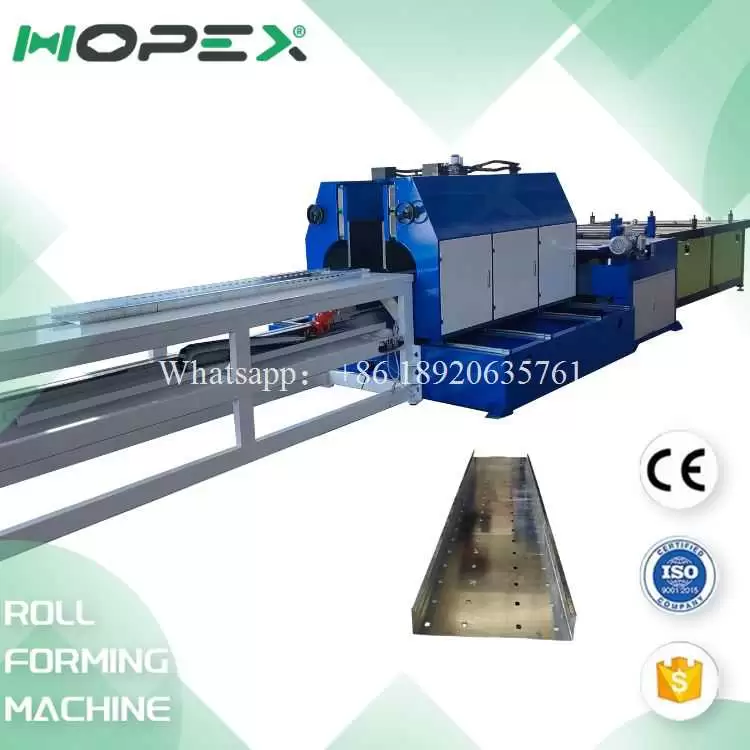

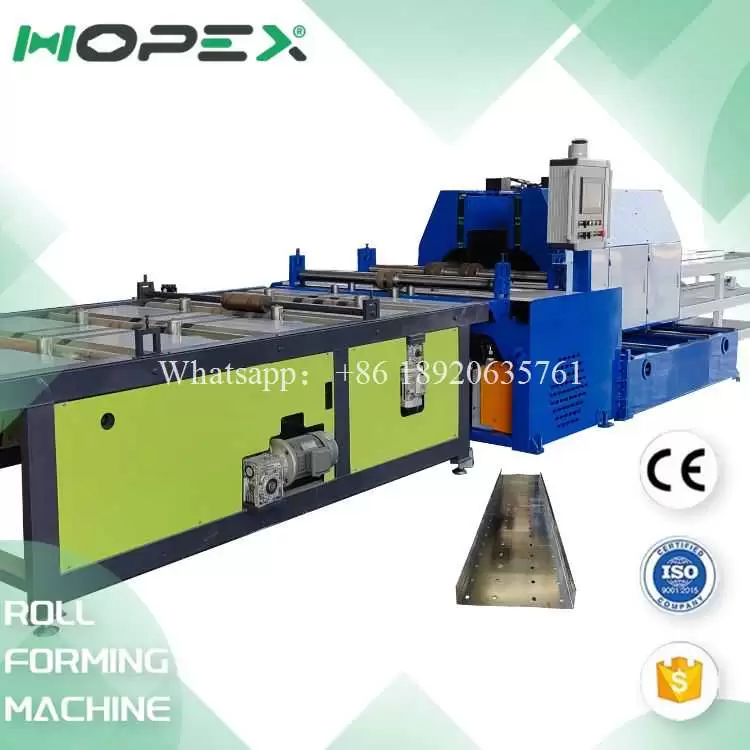

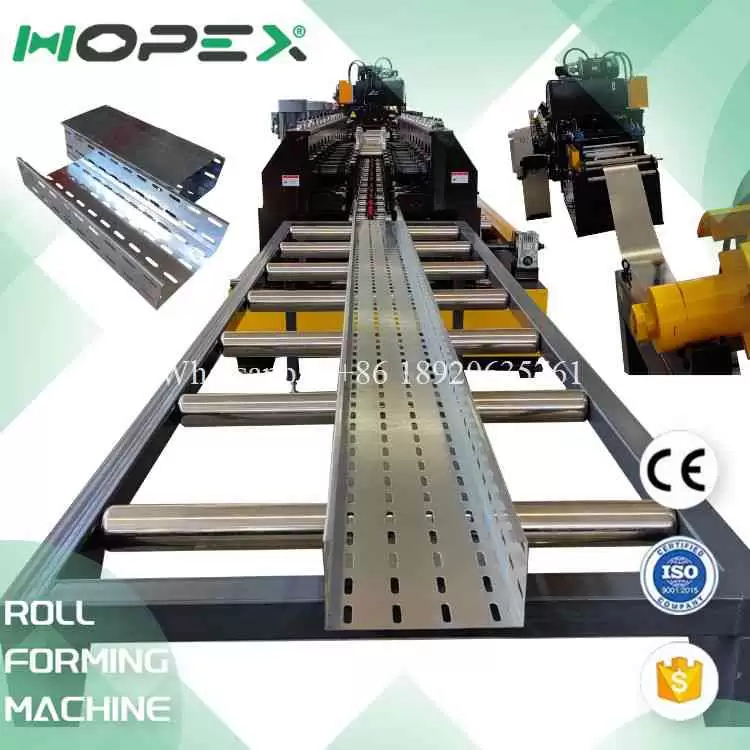

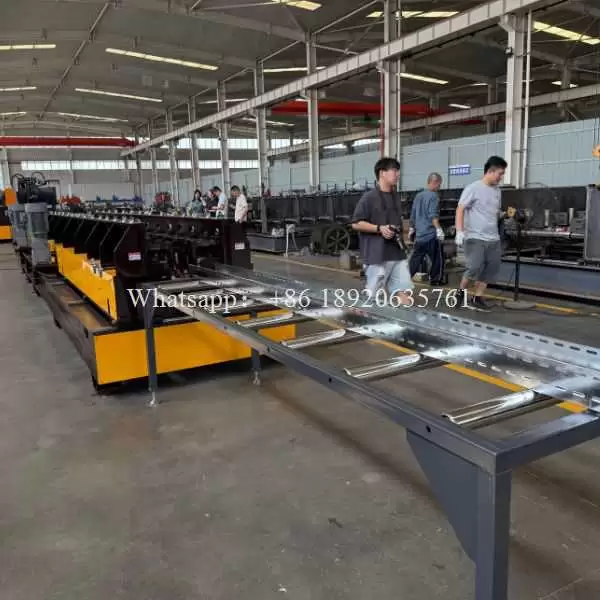

Once punched, the material proceeds to the core of the line: the roll forming machine. Here, a series of engineered forming stands gradually and cold-work the flat sheet into the desired cable tray profile. The durability and accuracy of the forming rolls guarantee a consistent and precise shape every time. A major advantage of our Cable Tray Making Machine Production Line is its high degree of customizability. The profile design, material width and thickness, and punching patterns can all be tailored to meet specific project requirements.

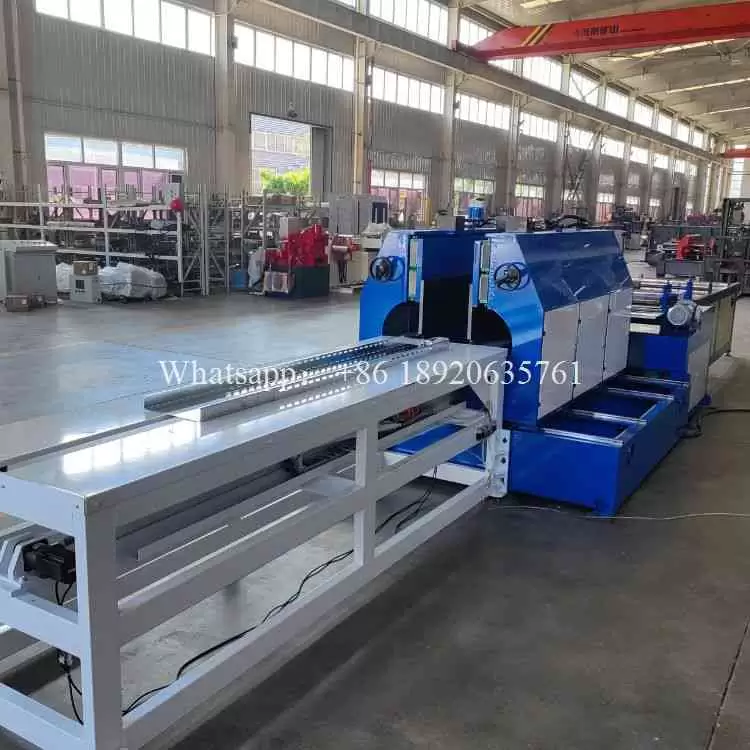

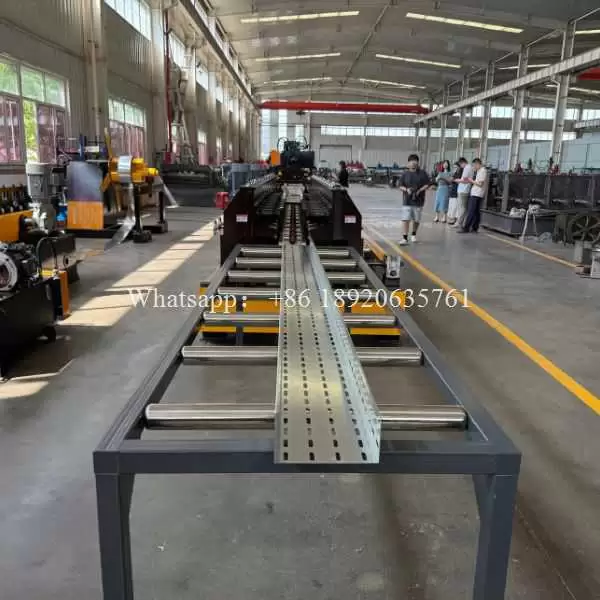

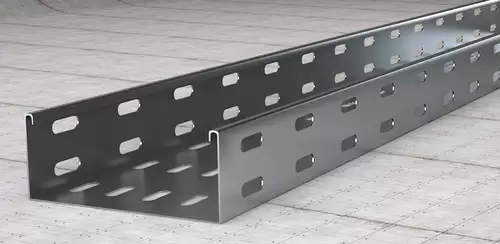

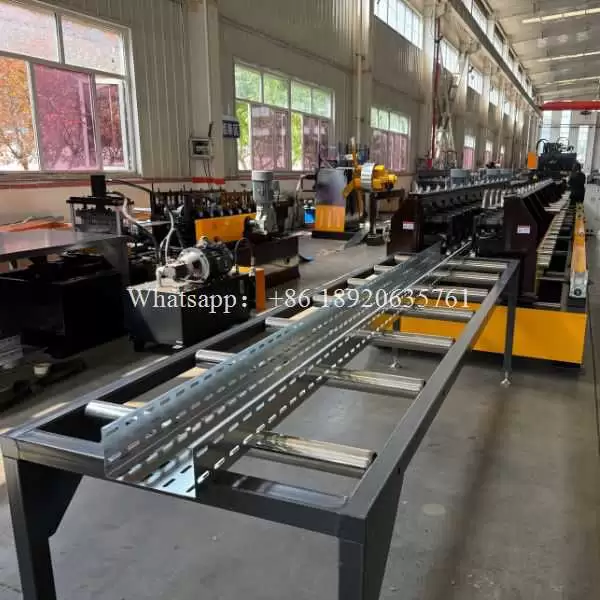

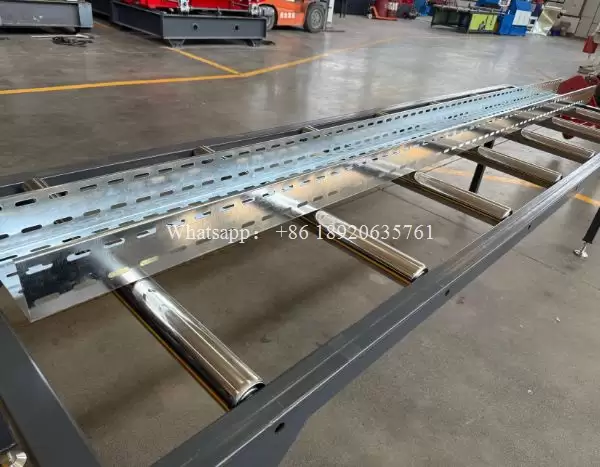

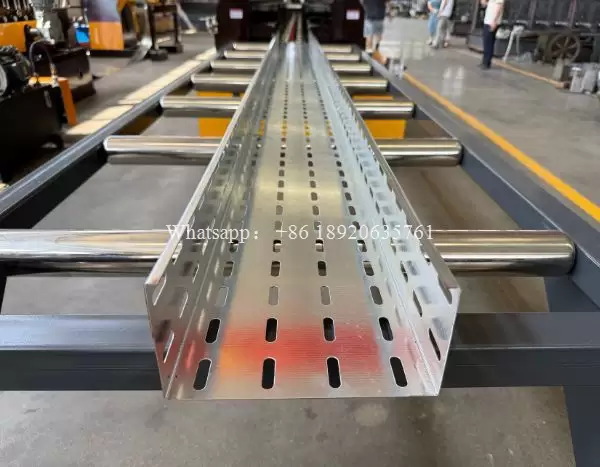

The line is typically culminated by a hydraulic cutting system, which cleanly shears the continuously formed profile to the pre-set length without stopping the machine, maximizing productivity and minimizing waste. The final output is a finished cable tray, ready for use or further assembly. We understand that a one-size-fits-all approach does not work in modern manufacturing. Therefore, our engineering team works closely with clients to customize every aspect of the Cable Tray Making Machine Production Line. We promise a swift turnaround, with detailed production drawings delivered within three days to keep your project on schedule.
More parameters
| Product Name | Cable Tray Making Machine Production Line |
| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
Our partnership extends far beyond the sale and installation. To ensure optimal performance and minimal downtime, we provide comprehensive remote warranty support. Our experienced engineers are available for video online guidance, offering real-time troubleshooting, operational training, and maintenance advice. This dedicated after-sales service ensures that your Cable Tray Making Machine Production Line continues to operate at peak performance throughout its lifespan.
In conclusion, investing in our integrated Cable Tray Making Machine Production Line is a strategic decision to enhance your manufacturing capabilities, improve product quality, and reduce production costs. It is a turnkey solution built for reliability, flexibility, and excellence. Embrace the future of cable tray manufacturing with us. Contact our team today to discuss how we can configure the perfect Cable Tray Making Machine Production Line for your business needs.
