Unleash Efficiency with Our Advanced U Purlin Roll Forming Machine for Sale

In the competitive landscape of pre-engineered buildings (PEBs), warehouses, agricultural structures, and industrial facilities, the demand for robust, cost-effective, and rapidly produced structural components is relentless. U-section purlins, renowned for their excellent load-bearing capacity and versatility in roof and wall support systems, are fundamental to these structures. Meeting this demand efficiently requires specialized, high-performance manufacturing technology. Our state-of-the-art U Purlin Roll Forming Machine for Sale represents the pinnacle of integrated automation, designed to transform raw steel coil into perfectly formed, cut, and stacked U purlins with unmatched speed, precision, and reliability. This comprehensive production solution is engineered for fabricators seeking to dominate the market with superior productivity and quality.

Roll Forming Process Workflow Diagram

More parameters

What is Our U Purlin Roll Forming Machine Line?

Our U Purlin Roll Forming Machine for sale is not merely a single machine; it's a fully synchronized, turnkey production system meticulously engineered for the continuous, high-volume manufacture of U-section steel purlins. At its core lies the precision roll forming process, where a flat steel strip is progressively shaped into the distinctive U-profile through a series of contoured rollers. This integrated U purlin production line seamlessly combines all critical operations – decoiling, leveling, roll forming, cutting, and stacking – into one uninterrupted, automated workflow. It's the definitive solution for fabricators aiming to produce consistent, high-quality U purlins ready for immediate site installation, significantly outperforming manual methods or disconnected single-operation equipment.

The exceptional efficiency of our U purlin roll forming machine for sale unfolds through a meticulously orchestrated sequence:

Uncoiling (Decoiling): The process initiates with a robust, motorized decoiler. Heavy coils of galvanized steel (GI) or pre-painted galvanized steel (PPGI), are securely mounted. The decoiler unwinds the coil smoothly, feeding a continuous strip of steel (the "blank") into the line. Precise tension control is paramount at this stage of the U purlin roll forming machine line to prevent material distortion and ensure stable feeding, setting the foundation for consistent quality.

Leveling (Flattening): Steel strip inherently retains curvature and minor imperfections ("coil set") from the coiling process. Passing through a precision multi-roll leveler is essential. This unit utilizes a series of offset rollers applying controlled alternating bends, effectively eliminating these imperfections and producing a perfectly flat, stress-free strip. This crucial step within the U purlin roll forming line guarantees the dimensional accuracy, straightness, and structural integrity of the final U purlin profile.

Shearing (Lead End Cutting): To ensure every purlin meets stringent quality standards, the potentially damaged or uneven leading edge of the coil is cleanly sheared off before entering the core processing stages. This step ensures optimal material utilization and consistent quality right from the start of production on our U purlin roll forming machine for sale.

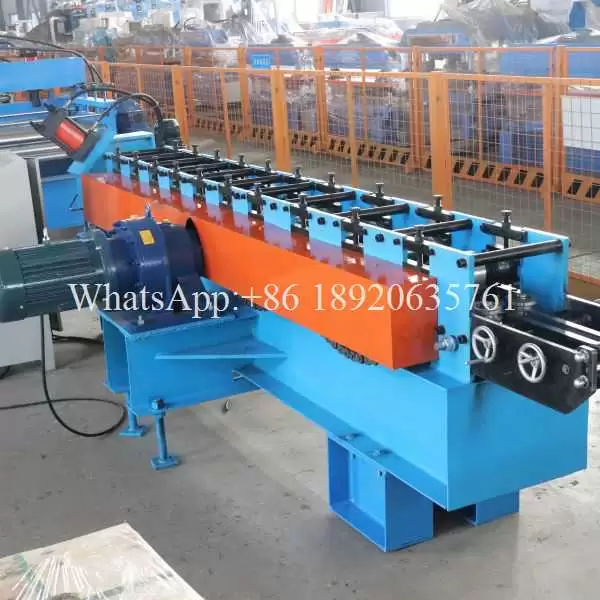

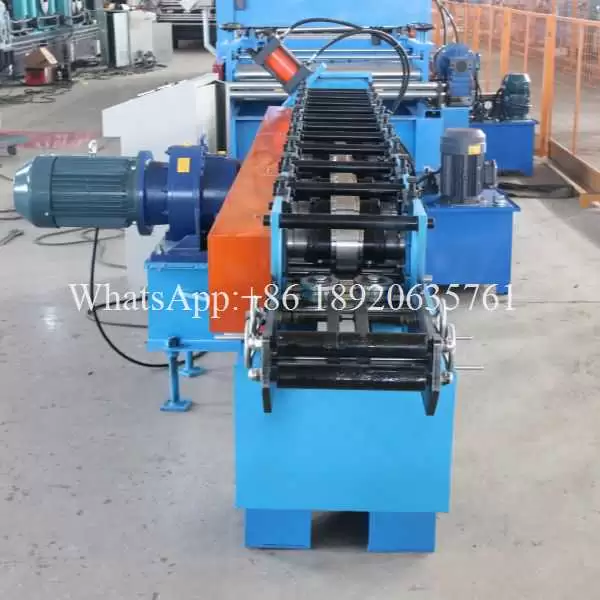

The Heart: Precision Roll Forming: The leveled and punched strip now reaches the core of the U Purlin Roll Forming Machine – the roll forming mill. Here, the transformation occurs. The strip passes sequentially through multiple pairs of precision-engineered, contoured roller dies (forming stands), mounted on a heavy-duty, rigid mill frame. Each consecutive stand applies a calculated, incremental bend to the steel. This gradual, cold-forming process minimizes stress, reduces springback, and ensures the complex U-shape is achieved with outstanding dimensional consistency, geometric accuracy, and a superior surface finish. The number of forming stands (typically 14-26+) in our U purlin roll forming machine for sale directly correlates with the quality of the final profile, the achievable line speed, and the maximum material thickness capability.

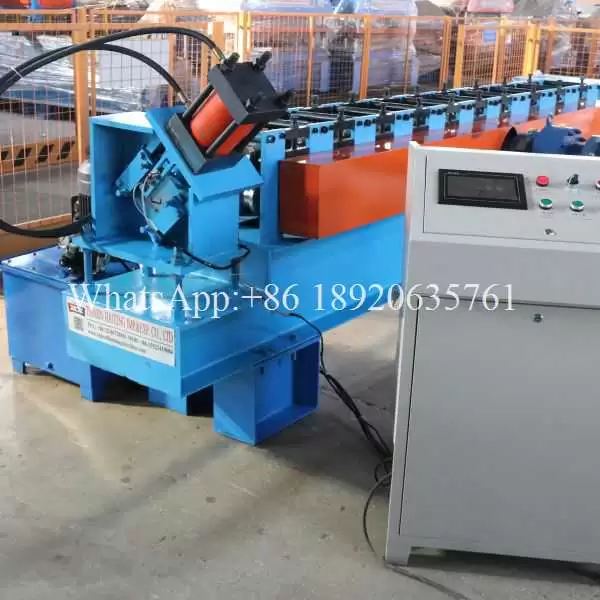

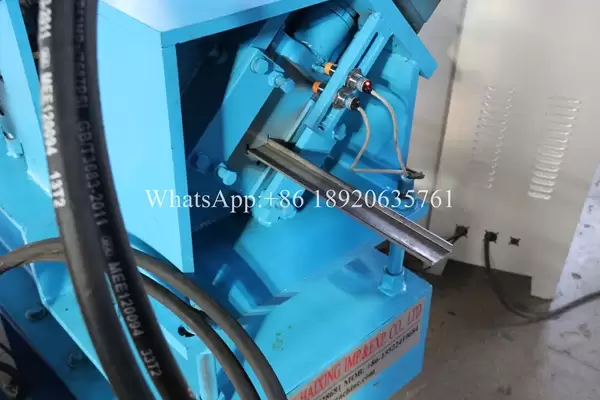

Cutting (Precision Cutting to Length): Once fully formed into the continuous U-profile, the material moves at line speed into the cutting station. Our U purlin roll forming machine for sale employs a high-precision flying cut-off system. Hydraulic or servo-driven shears synchronize their movement perfectly with the advancing purlin. The shears dynamically "fly" alongside the moving profile, executing a clean, square, burr-free cut to the exact pre-programmed length without halting production. This technology is critical for maintaining the high throughput rates inherent in our U purlin roll forming machine for sale. Absolute length accuracy is ensured by precise encoder measurement.

Automated Stacking & Palletizing: The finished, cut-to-length U purlins are conveyed out of the forming area. An intelligent automatic stacking system (palletizer/code piler) takes charge. This system efficiently collects the purlins and organizes them into uniform, stable bundles on pallets or a collection table. Advanced systems feature precise counting, automatic layer separation (using wooden strips or spacers for stability), and often integrated strapping. These ready-to-ship bundles, produced efficiently by the U purlin roll forming machine for sale, are easily handled by forklift for storage or direct transportation to the construction site.

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the automatic U purlin roll forming machine for sale. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the automatic U purlin roll forming machine for sale be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
