The Precision Powerhouse: Unpacking the C Purlin Forming Machine Production Line

In the world of modern construction, particularly for industrial buildings, warehouses, and large-span structures, the humble C purlin plays a critical role. These versatile, lightweight steel channels form the backbone of roof and wall support systems. Efficiently and accurately producing these essential components demands specialized technology: the C Purlin Forming Machine production line. This integrated system represents a pinnacle of metal forming automation, transforming raw steel coils into precisely shaped, punched, and cut C purlins ready for immediate use on the job site.

Roll Forming Process Workflow Diagram

More parameters

What is a C Purlin Forming Machine Line?

At its core, a C Purlin Forming Machine line is a fully automated or semi-automated sequence of industrial machinery designed specifically for the high-volume, continuous production of C-section steel purlins. It's not a single machine, but a sophisticated symphony of coordinated stations, each performing a critical task. The defining characteristic of this C purlin forming system is its focus on the efficient creation of the distinct "C" profile with consistent quality, dimensional accuracy, and necessary fabrication features like holes for connections.

The Engine of Production: The Line's Workflow
The magic of the C Purlin Forming Machine unfolds in a meticulously orchestrated sequence:

Uncoiling (Decoiling): The process begins with a heavy-duty decoiler. A large coil of pre-painted galvanized steel (PPGI) or galvanized steel (GI), typically weighing several tons, is mounted onto the decoiler mandrel. As the line starts, the decoiler unwinds the coil smoothly and feeds the continuous strip of steel (the "blank") into the next stage. Tension control is crucial here to prevent material distortion.

Leveling (Flattening): The steel strip from the coil inherently has curvature and minor imperfections (coil set). Passing through a multi-roll leveling machine is essential. This unit uses a series of precisely adjusted rollers to apply alternating bending stresses, effectively eliminating these imperfections and creating a perfectly flat strip. This step is vital for ensuring the final purlin's straightness and dimensional accuracy further down the C purlin forming production line.

Shearing (Lead End Cutting - Optional): Some lines incorporate an initial shear to cut off the potentially damaged or uneven leading end of the coil before feeding into the main processing stages, ensuring consistent quality from the very first purlin.

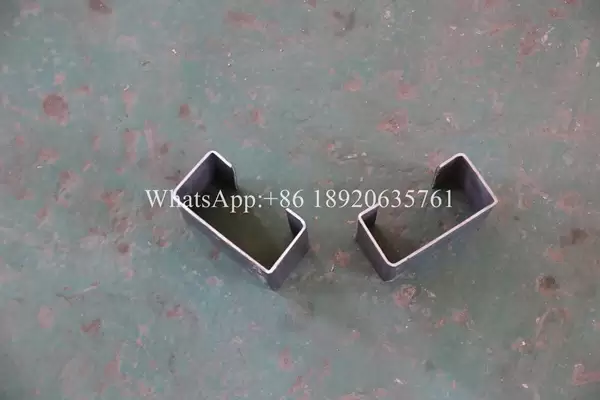

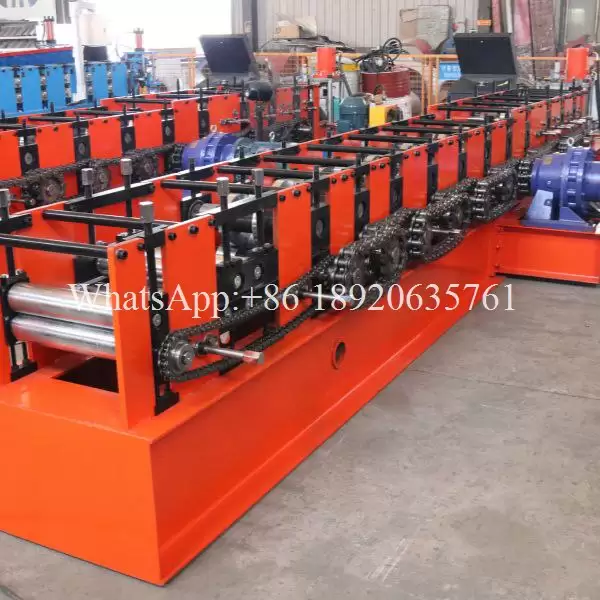

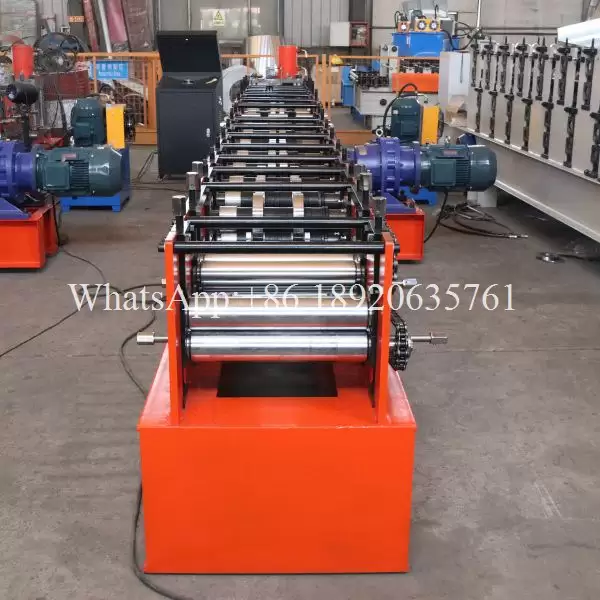

The Heart: Roll Forming: The leveled and punched (if applicable) strip now enters the core of the C purlin forming machine – the roll forming station. Here, the flat strip is progressively shaped into the final C-profile. It passes through a series of contoured roller dies (forming stands), mounted on a robust mill housing. Each consecutive set of rolls incrementally bends the steel a few degrees at a time, minimizing stress and achieving the complex C-shape with high precision and excellent surface finish. The number of forming stands directly influences the quality of the final profile and the line's speed capability. This continuous cold-forming process is what defines the C purlin roll forming machine.

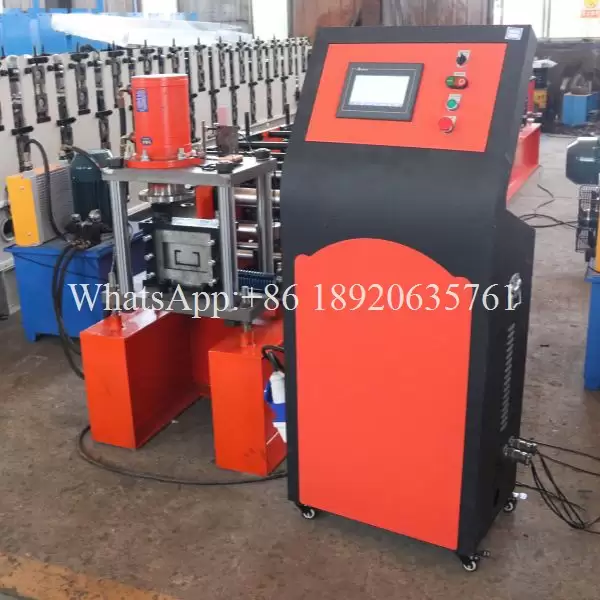

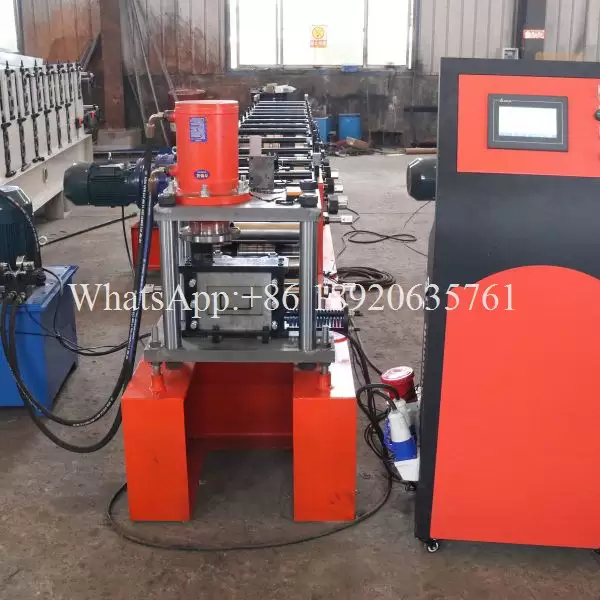

Cutting to Length: Once fully formed, the continuous C purlin profile reaches the cutting station. Most modern C purlin forming systems employ a high-precision flying cut-off system. Hydraulic or servo-driven shears synchronize their speed perfectly with the moving purlin, making a clean, burr-free, square cut to the exact pre-programmed length without stopping the line. This is crucial for maintaining high production rates. Control systems measure the profile's length accurately as it moves.

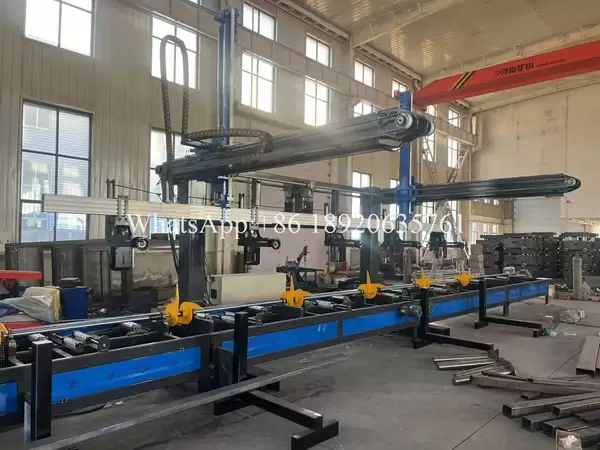

Discharge & Automated Stacking (Code Piling): The cut-to-length C purlins are conveyed out of the forming area. An automatic stacking system (code piler) then collects and organizes the finished purlins into neat, uniform bundles. These bundles are typically strapped for stability and ease of handling, storage, and transportation directly to the construction site. Advanced stacking systems can count pieces and layer them precisely.

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the c purlin forming machine line. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the c purlin forming machine line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
