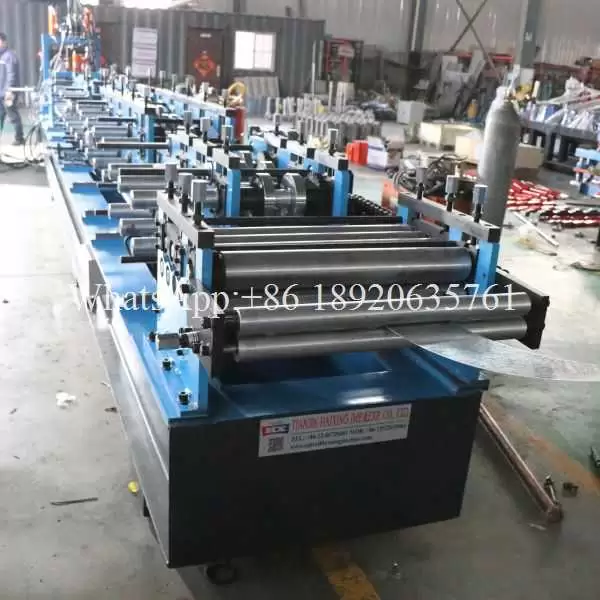

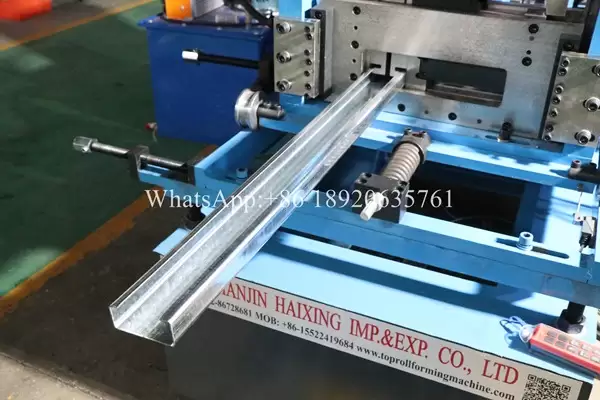

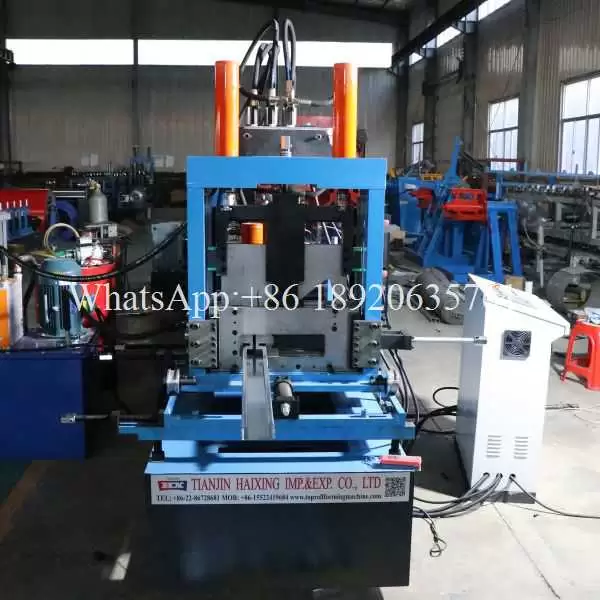

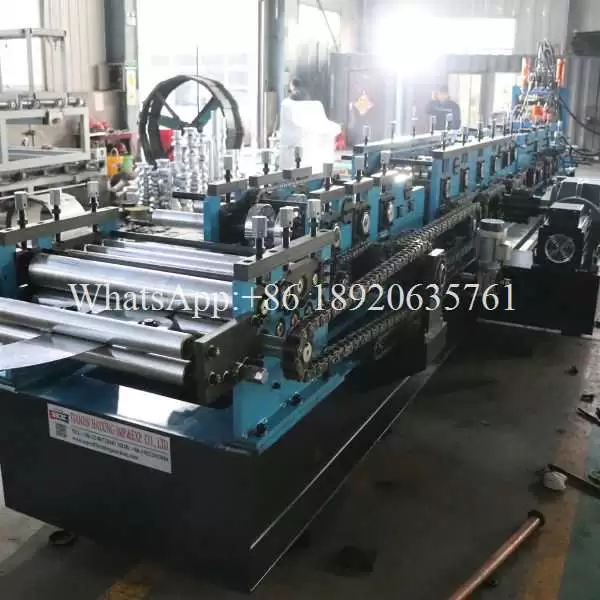

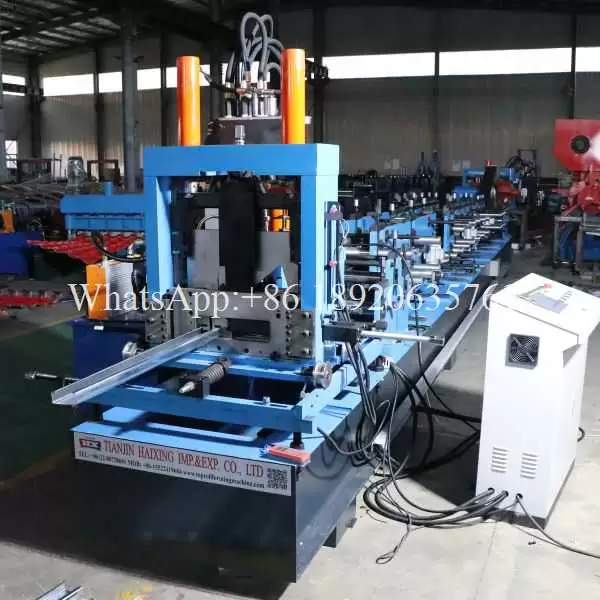

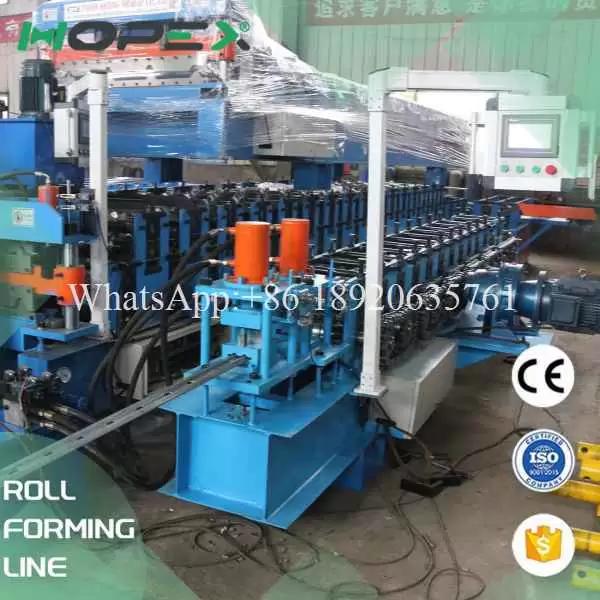

Automatic C purlin roll forming machine line
The Engine of Structural Efficiency: Inside the C Purlin Roll Forming Machine Line
In the fast-paced world of pre-engineered buildings (PEBs), warehouses, industrial facilities, and agricultural structures, speed, precision, and cost-efficiency are paramount. At the heart of producing one of the most fundamental structural components – the C-section purlin – lies a technological marvel: the fully integrated C Purlin Roll Forming Machine Line. This sophisticated, continuous operation transforms raw steel coil into perfectly formed, punched, cut, and stacked purlins, ready for immediate installation. It represents the pinnacle of automated cold metal forming for high-volume structural production..
Roll Forming Process Workflow Diagram
More parameters
| Product Name |
Automatic C purlin roll forming machine line |
| Main motor power | Private service motor, 22kw |
| Hydraulic station | 7.5 kw |
| Produce speed | 25 m/min |
| Shaft material | 45# Steel |
| Touch screen | Delta or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-60℃ |
| Cutting blade material | Cr12MoV |
| Roller diameter | Φ80 mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness |
1.5-3.0 mm |
| Rows | 14, equipped with 4 sets of mold change |
The Compelling Advantages of the Integrated Line
Investing in a complete C Purlin Roll Forming Machine Line delivers significant competitive advantages:
Unmatched Productivity: Continuous operation enables production speeds of 20-25+ meters per minute (or more), translating into thousands of purlins per shift. This C purlin roll forming line is engineered for high-volume output.
Superior Precision & Consistency: CNC control over punching patterns and cut lengths, combined with precision-ground forming rolls, ensures every single purlin meets exacting dimensional tolerances and has identical fabrication features. This consistency is vital for rapid, error-free assembly on-site.
Material Optimization: Precise control over cut lengths and optimized nesting of punch patterns within the strip significantly minimize material waste compared to offline cutting and punching methods.
Reduced Labor Costs & Enhanced Safety: High automation drastically reduces the manual labor required for handling, punching, cutting, and stacking. It also minimizes operator exposure to potential hazards associated with these tasks.
Operational Flexibility: While optimized for C-purlins, many modern C purlin roll forming machine lines can be adapted (with roll and tooling changes) to produce other light-gauge profiles like Z-purlins, girts, or custom channels. Servo punching offers immense pattern flexibility without mechanical changeovers.
Streamlined Workflow: Integrating all critical processes eliminates intermediate handling, transportation between separate machines, and associated bottlenecks, maximizing overall equipment effectiveness (OEE).
Improved Quality Control: Automated processes reduce human error, leading to consistently high product quality throughout long production runs.
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the automatic C purlin roll forming machine line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the automatic C purlin roll forming machine line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
