The Purlin Machine Line Revolution: Precision Forming for Custom-Profile Steel Purlins

In the demanding world of modern construction and prefabricated metal buildings, structural integrity, design flexibility, and production efficiency are non-negotiable. While standard C, Z, and U purlins are ubiquitous, complex architectural designs and specialized structural requirements often demand custom-profile steel purlins. This is where the advanced purlin machine line truly shines. Far exceeding the capabilities of standard purlin roll formers, this sophisticated integrated system is engineered specifically for the high-volume, precision production of non-standard, complex, or uniquely shaped purlins, transforming raw steel coil into ready-to-install structural components with remarkable speed and accuracy.

Roll Forming Process Workflow Diagram

More parameters

The core challenge in producing non-standard purlins lies in achieving complex geometries – asymmetrical flanges, varying angles, custom depths, integrated features, or unique cross-sections – consistently and efficiently. Traditional methods involving separate bending, cutting, and welding are slow, costly, and prone to dimensional variation. The modern purlin machine line overcomes these limitations through a seamless, automated sequence of processes:

Uncoiling & Feeding: Heavy-duty decoilers handle large steel coils (typically galvanized steel or Galvalume), feeding the strip steadily into the line. Advanced purlin machine lines often feature automatic coil loading, splicing, and accumulator systems for uninterrupted production runs, maximizing uptime.

Precision Leveling: The incoming strip passes through a multi-roll leveler. This critical stage eliminates coil set, crossbow, edge wave, and internal stresses. Perfectly flat, stress-free material is paramount for the subsequent precision forming and punching operations within the purlin machine line, ensuring dimensional accuracy and preventing distortion in the final complex profile.

Integrated Servo Punching (The Game Changer for Custom Profiles): This stage is what truly differentiates a purlin machine line designed for complex shapes. A high-tonnage servo-electric punching station, synchronized with the material feed, punches holes, slots, notches, embossments, or even complex cut-outs before the main forming process. Crucially, the servo drive allows for:

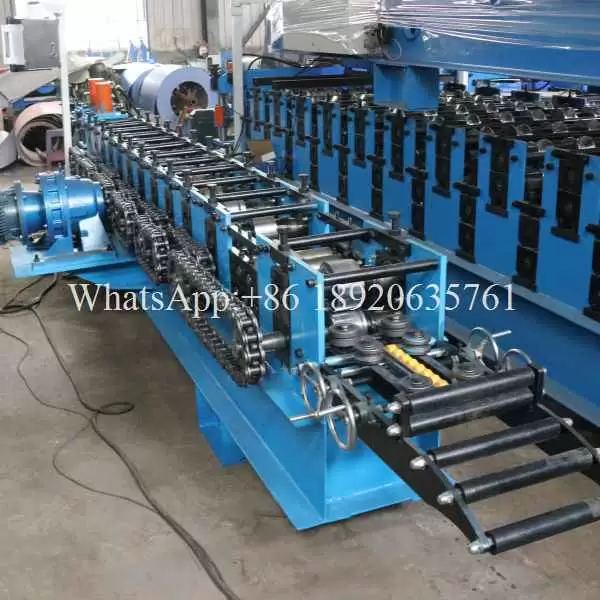

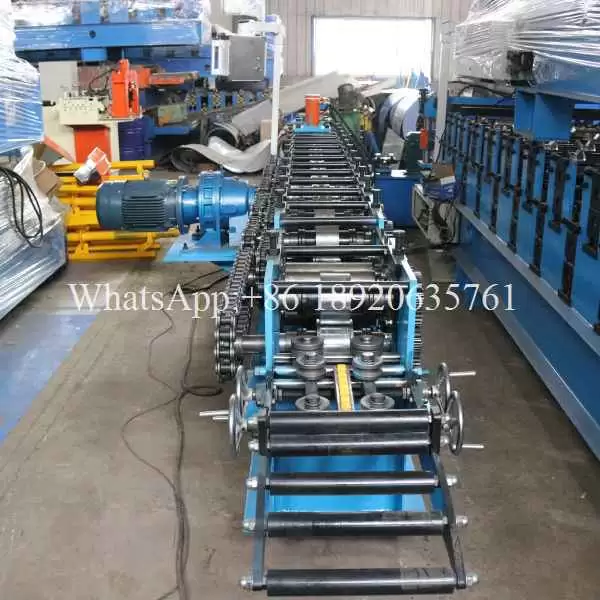

Advanced Roll Forming (Shaping Complexity): The pre-punched, flat strip enters the heart of the purlin machine line – the custom roll forming unit. Unlike standard purlin mills, this machine features a meticulously engineered set of roll stands, often with more stations and specialized roll tooling designs. These hardened steel rolls progressively bend the strip incrementally into the desired complex cross-section. The precision machining of these rolls and the rigidity of the mill frame are critical to achieving the tight tolerances and consistent shape required for structural custom-profile purlins. Quick-change roll systems are a valuable feature for manufacturers producing multiple complex profiles.

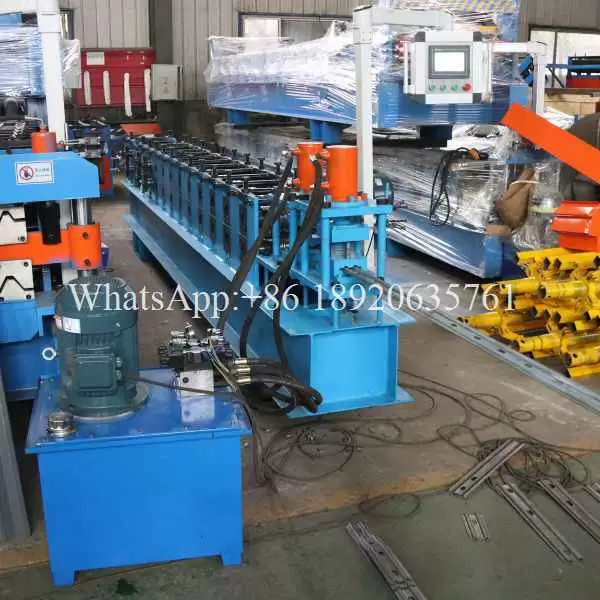

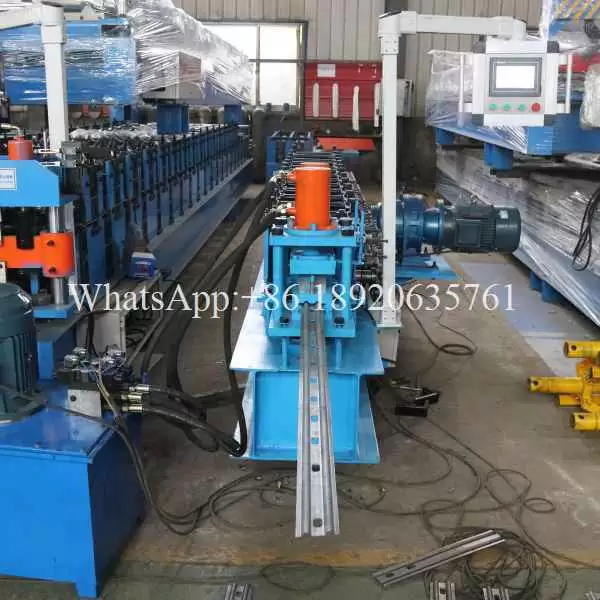

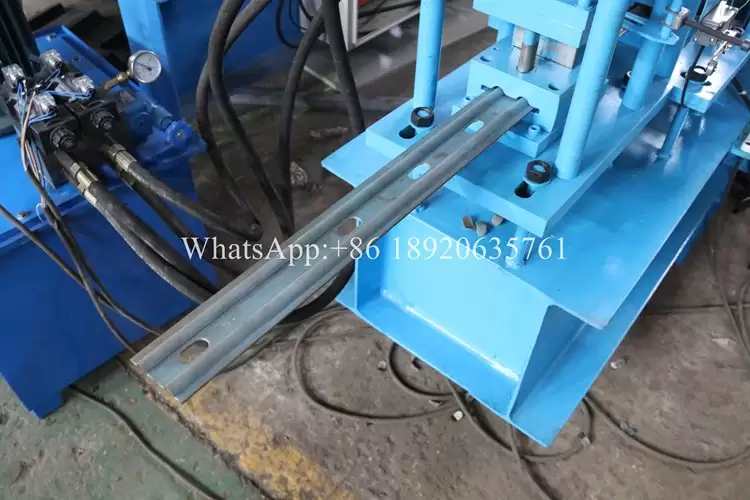

Hydraulic Shearing (Precision Cutting for Complex Ends): After the profile is fully formed, a heavy-duty hydraulic shear cuts the continuous purlin to exact lengths. For complex profiles, especially those with irregular shapes or flanges, hydraulic shearing provides the necessary power and control for a clean, square, or even pre-programmed angled cut without crushing or deforming the delicate cross-section. The shear is synchronized with the line speed (often via a flying cut mechanism) for continuous operation.

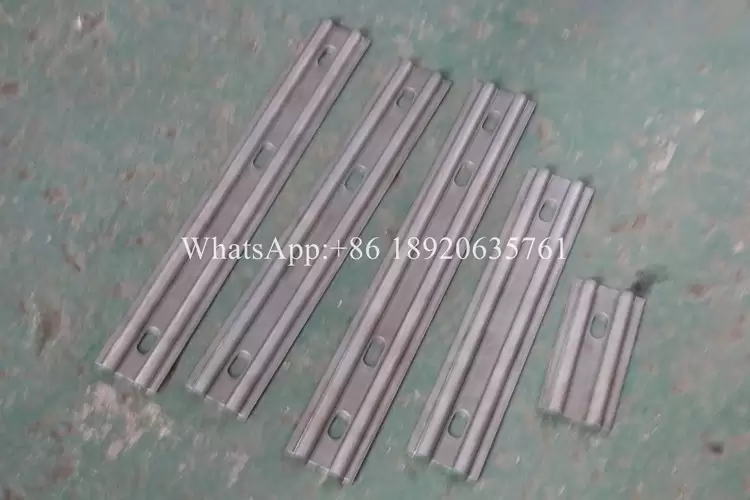

Automated Output & Stacking: The finished custom-profile purlins are conveyed away from the shear. Sophisticated purlin machine lines incorporate automated stacking systems. These can range from simple collecting tables to programmable stackers with rotating arms or conveyors that organize the purlins neatly into bundles. Automatic strapping or banding stations are often integrated, preparing the bundles for efficient handling, transport, and site installation.

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the Specialized Purlin Machine Line. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the automatic Specialized Purlin Machine Line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
