Mastering the Angle: Your Essential Guide to the Z Purlin Roll Forming Machine Line

In the realm of structural steel construction, efficiency, precision, and component strength are non-negotiable. Z-purlins, renowned for their superior load-bearing capacity, overlapping capability for longer spans, and efficient nesting during transport, are a cornerstone of modern roofs and walls. At the heart of producing these vital components lies the sophisticated Z purlin roll forming machine line. This integrated powerhouse transforms raw steel coil into perfectly formed, ready-to-install Z-purlins with remarkable speed and consistency. Let's explore what makes this specialized production line indispensable.

Roll Forming Process Workflow Diagram

More parameters

The Z-Purlin Production Flow: Synchronized Precision

Setup & Initiation: The coil is loaded, the strip end is threaded through guides, the leveler, and into the forming section.

Flattening Foundation: The strip passes through the leveling rolls, emerging perfectly flat and tension-controlled.

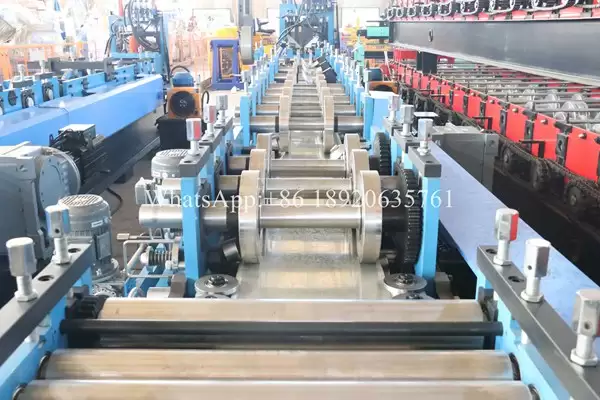

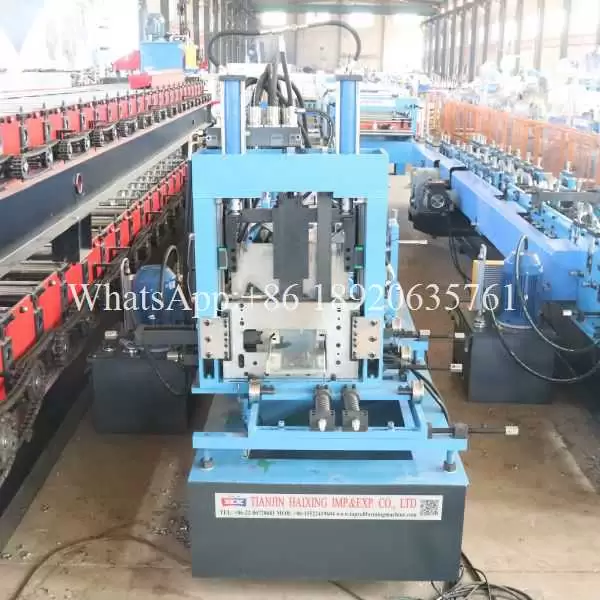

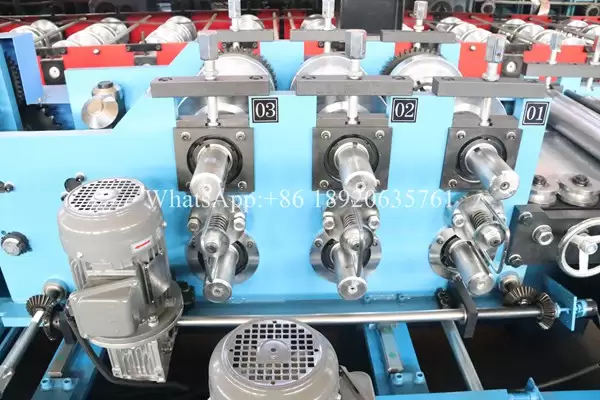

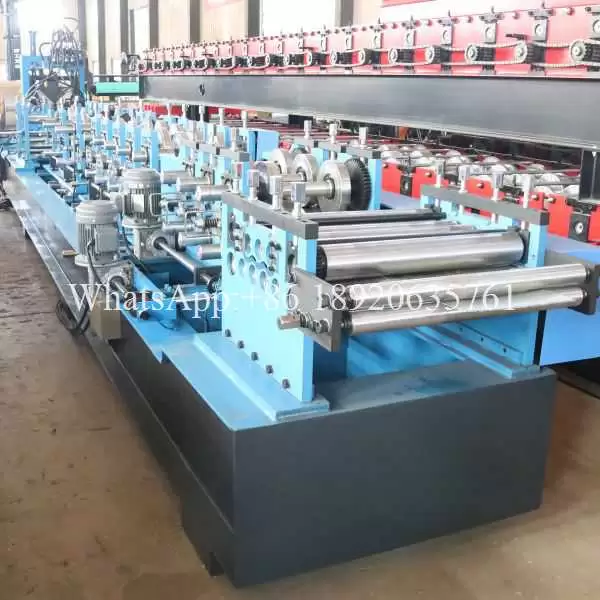

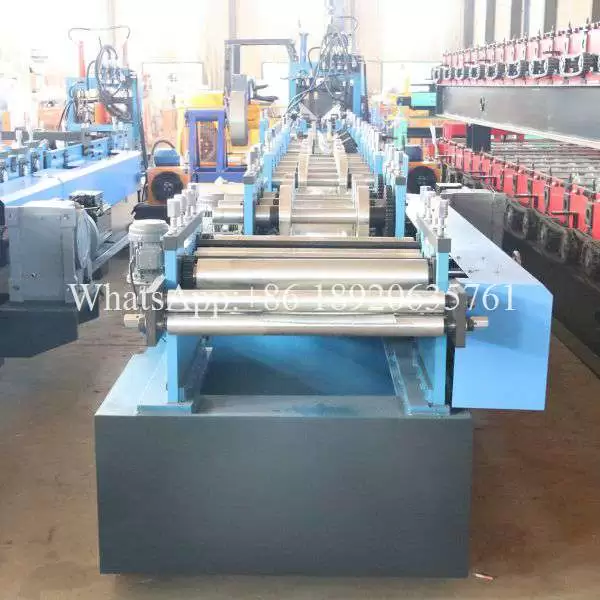

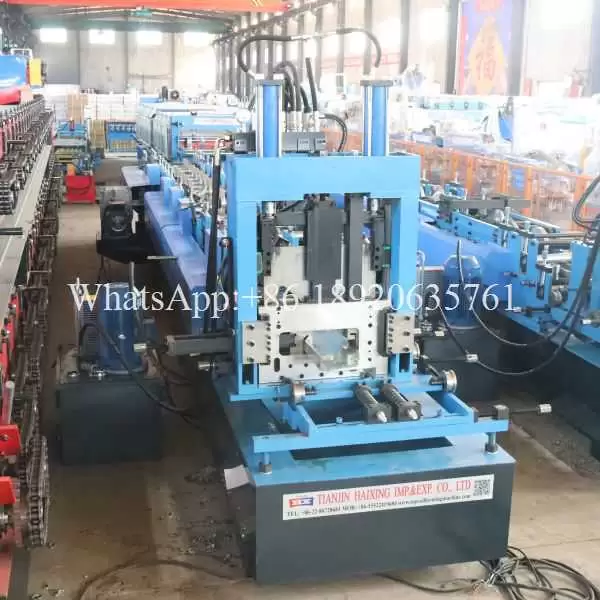

Progressive Z-Forming: The flat strip enters the Z purlin roll forming machine. Guided with precision, it travels through each roll stand. Each stand imparts specific incremental bends, gradually transforming the strip into the continuous Z-profile. Servo control ensures forming stability, especially critical for the lip angles.

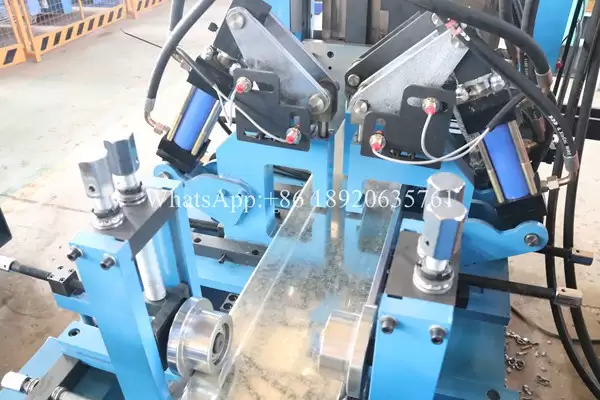

Precision Hole Creation & Notching: As the formed Z-profile moves forward, the servo punch/notch unit activates at precisely programmed locations to create necessary connection holes and end notches.

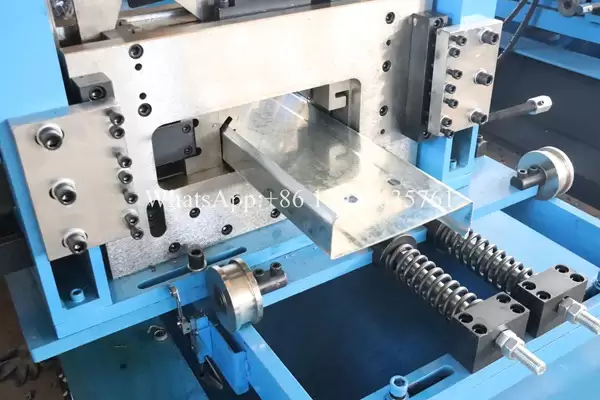

Length Measurement & Flying Cut: An encoder wheel or laser accurately tracks the length. Upon reaching the set point, the flying cut-off accelerates to match line speed, executes a clean cut, and resets – all dynamically without halting the line.

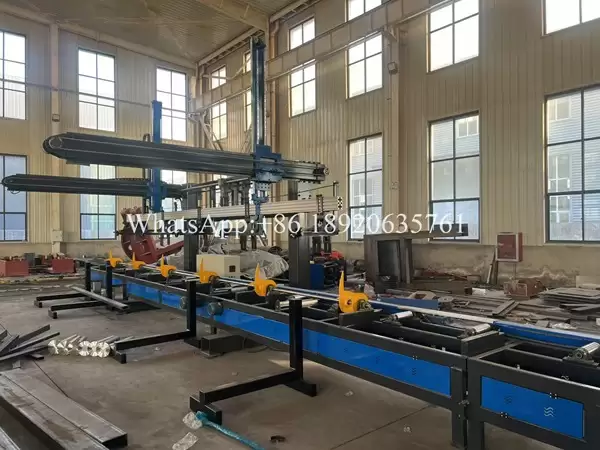

Ejection & Intelligent Stacking: The cut Z-purlin is conveyed to the stacking area. Automated systems handle the asymmetric profile, stacking bundles efficiently according to predefined patterns, ready for the next stage.

Tailored for Your Z-Purlin Success: Customization is Key

Modern Z purlin roll forming machine lines offer significant flexibility to meet diverse production needs:

Profile Range & Size: Lines are configured to produce specific Z-purlin dimensions (depth, flange width, lip length, material thickness). Tooling (rolls) is designed for target profiles and can often be changed for different sizes within the machine's capacity. Lines can be built for standard Z-profiles or unique custom Z variations.

Material Capability: Decoilers and levelers are sized for required coil weights, widths, and thicknesses (gauge). The Z purlin roll forming machine itself is engineered for the yield strength of the steel used.

Punching/Notching Complexity: The punching station can be customized for the number of punching heads, tonnage, and the complexity of hole patterns and notch shapes required for your specific Z-purlin applications.

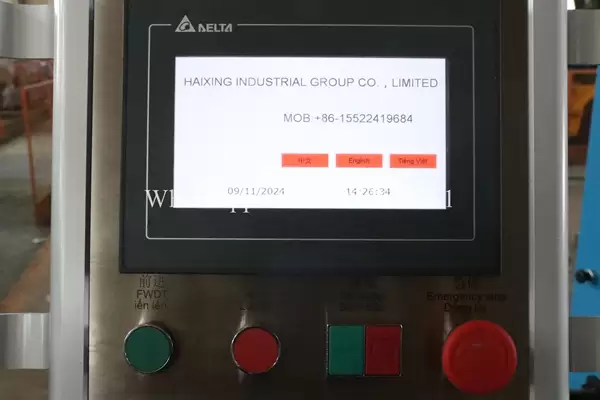

Automation Level: Options range from semi-automatic (manual assist for some functions) to fully automatic lines with robotic stacking, integrated PLC control, and production monitoring systems.

Speed & Length: Production line speed (meters/minute) and maximum cutting length are configured based on your target output volume.

Ancillary Options: Consider embossing, advanced marking, bundle strapping systems, or even integrated welding for specialized applications.
