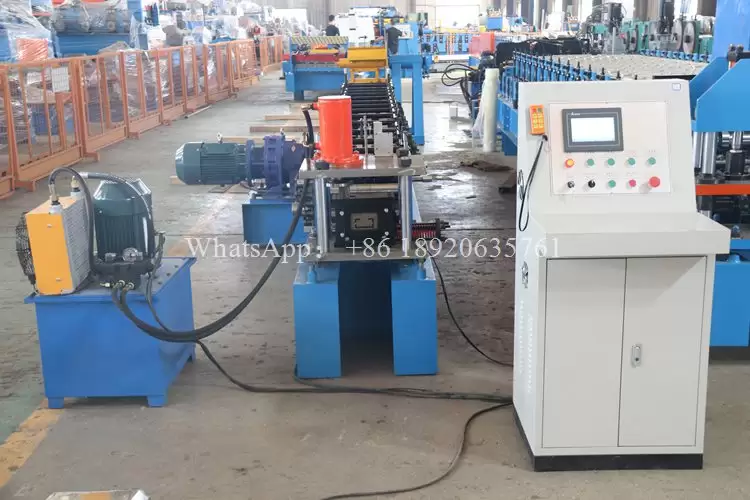

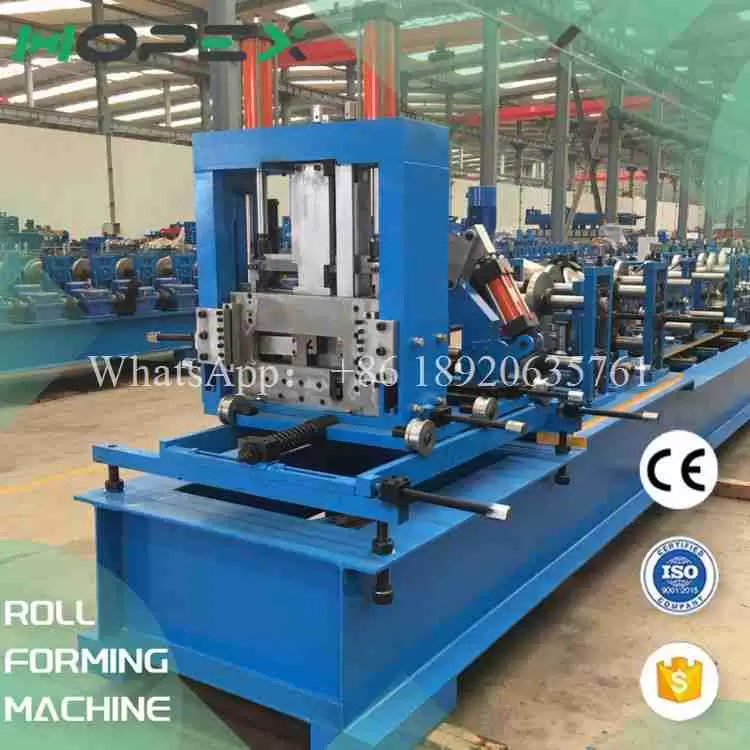

C Purlin Forming Machine
Optimize Your Building Projects with Our Advanced C Purlin Forming Machine
In the construction and industrial sectors, structural integrity and efficiency are paramount. C purlins serve as critical components in building frameworks, providing essential support for roofs and walls. As a specialized manufacturer of cold roll forming equipment, we are proud to introduce our high-performance C Purlin Forming Machine, a complete production line engineered to manufacture precision C purlins with exceptional accuracy and remarkable efficiency. This automated system demonstrates our commitment to delivering innovative solutions that meet the evolving demands of the construction industry.
Roll Forming Process Workflow Diagram
More parameters
| Product Name |
C Purlin Forming Machine |
| Main motor power | 11kw，, Shanghai Lichao |
| Hydraulic station | 5.5KW, Shanghai Lichao |
| Produce speed | 8-15 m/min |
| Shaft material | 45# Steel |

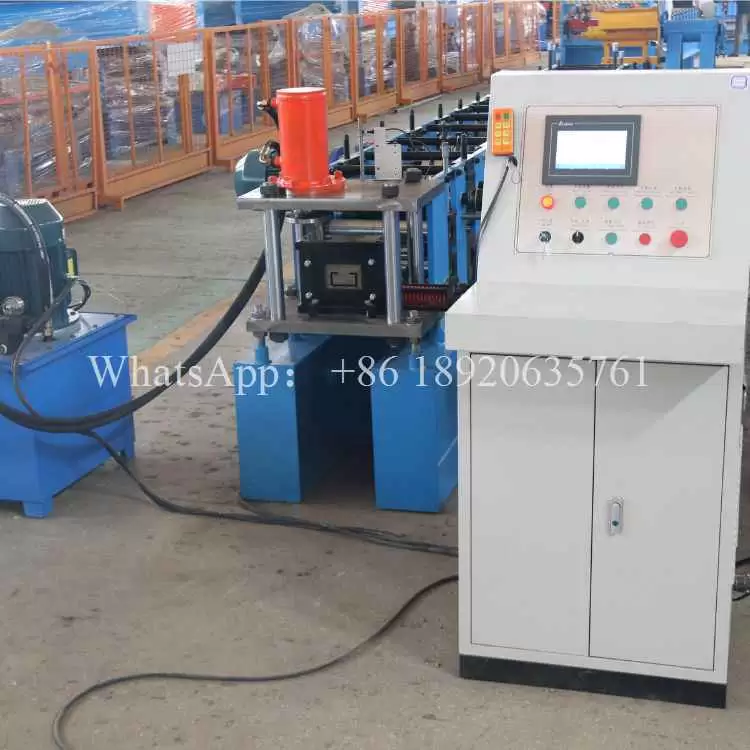

| Touch screen | Delta or customized according to customer requirements |
| Rolling materials | Gcr15 steel, surface heat treated with 0.05mm chrome plating, hardness HRC 58-62℃ |
| Cutting blade material | Cr12MOV, shear blade heat treated HRC 58-62℃ |
| Roller diameter | 80mm solid shaft, high quality 45# steel |
| Voltage | 220V, 60HZ, 3-phase electricity or be customized |
| Feeding thickness |
1.2-1.5-2mm
|
| Rows | 12 rows + flatter shaft |
| Operating language | Chinese, English, Spanish |
| Shear error | +- 1.0mm |
The Compelling Advantages of the Integrated Line

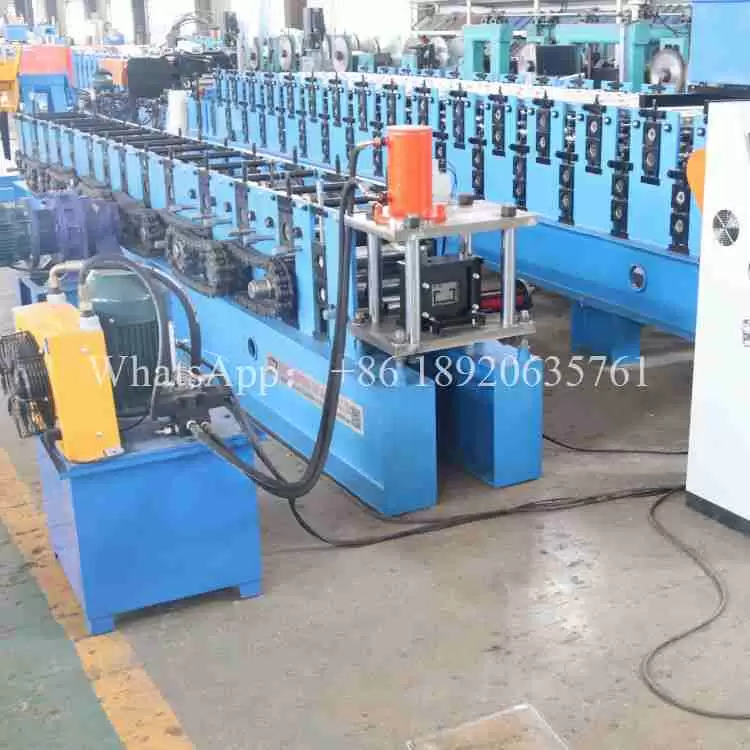

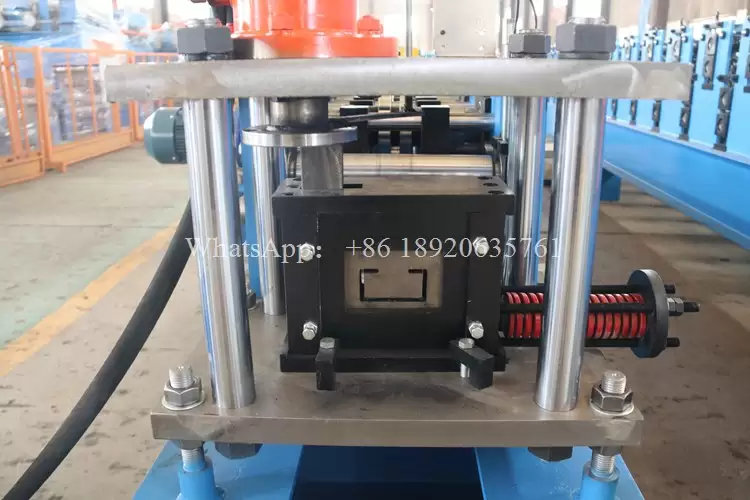

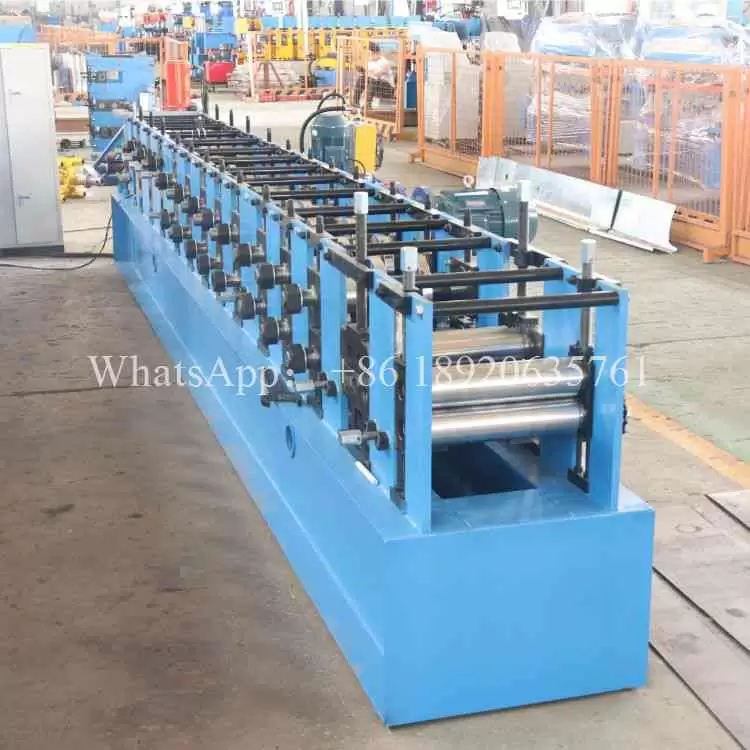

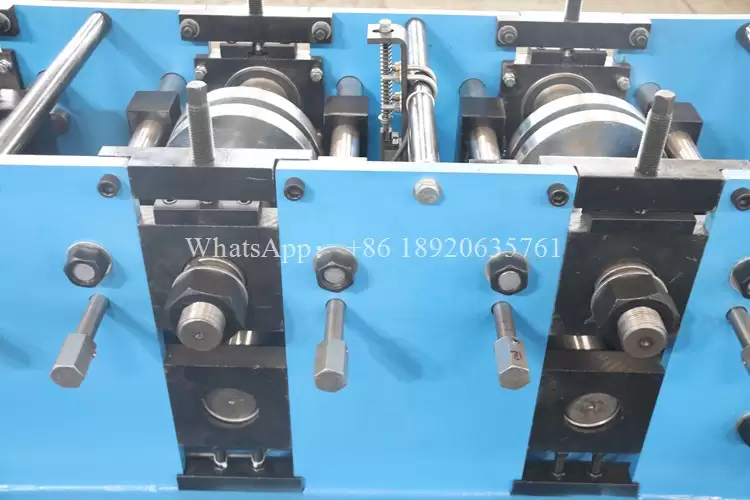

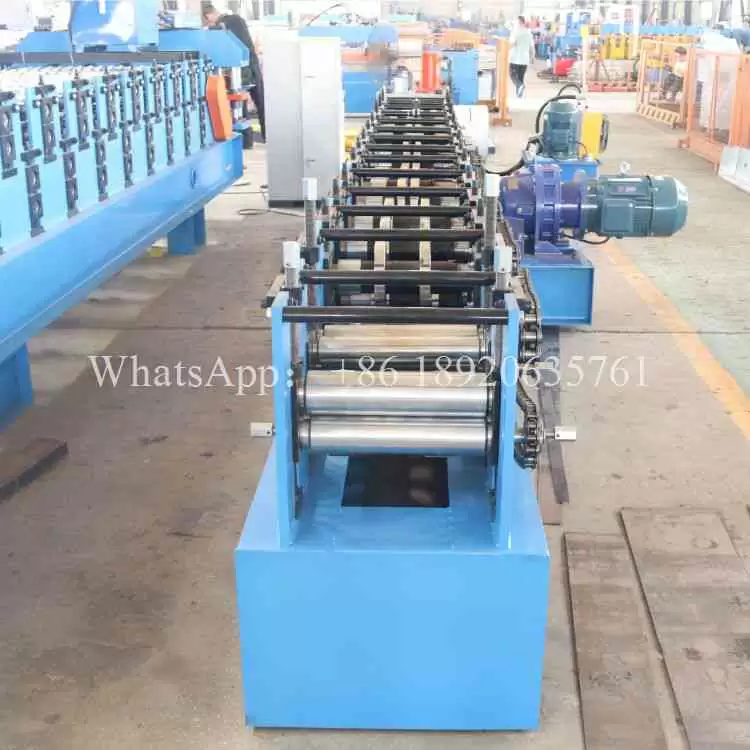

The production process of our C Purlin Forming Machine incorporates a streamlined, automated workflow that ensures consistent quality from start to finish. The system begins with an automatic decoiling unit that feeds steel coil into the production line with controlled tension, ensuring smooth material handling. The steel strip then proceeds directly to the precision roll forming section, where it passes through a series of engineered rollers that gradually shape it into the standardized C purlin profile. This carefully calibrated process maintains uniform dimensions and structural integrity throughout the entire length. Following the forming stage, a high-speed flying shear cuts the continuous profile to exact lengths without interrupting production. The automated process concludes with a stacking device that neatly organizes the finished purlins for convenient handling and shipment.
A significant advantage of our C Purlin Forming Machine is its adaptability to various project requirements. The equipment allows comprehensive customization of parameters including material width, thickness, and purlin dimensions. This flexibility enables manufacturers to produce C purlins that meet specific structural and design specifications, ensuring perfect compatibility with diverse building projects. To support quick project initiation, we provide a efficient 3-day drawing approval service. Our engineering team delivers detailed technical schematics and layout plans for client review, ensuring the production configuration aligns perfectly with customer expectations before manufacturing begins.
Beyond the machinery itself, we offer comprehensive technical support to ensure optimal performance. Our remote service program includes real-time video guidance from experienced engineers, who provide assistance with machine setup, operational training, and troubleshooting through digital platforms. This remote support ensures that your C Purlin Forming Machine maintains peak performance while minimizing potential downtime.
Investing in our C Purlin Forming Machine represents a commitment to quality, efficiency, and professional partnership. This production solution enables manufacturers to produce high-quality C purlins with exceptional consistency, supporting stronger and more reliable building structures. As construction methodologies continue to advance, our machine provides manufacturers with the capability to meet market demands while maintaining competitive advantage through superior manufacturing technology and unwavering technical support.
Our photos with our customers
About us
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the automatic C Purlin Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the automatic C Purlin Forming Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
