Advanced cable tray forming machine
Revolutionizing Cable Management: The Power of an Advanced Cable Tray Forming Machine
In the backbone of modern infrastructure—from data centers to industrial plants—cable trays provide critical pathways for electrical and data networks. Manufacturing these essential components demands precision, speed, and unwavering consistency. Enter the Advanced Cable Tray Forming Machine: a fully integrated production line engineered to transform raw metal coils into finished cable trays with unmatched efficiency. This sophisticated system isn’t just equipment; it’s the cornerstone of competitive manufacturing for companies prioritizing quality, throughput, and ROI.
Workflow Diagram
More parameters
| Product Name | Professional cable tray making machine |

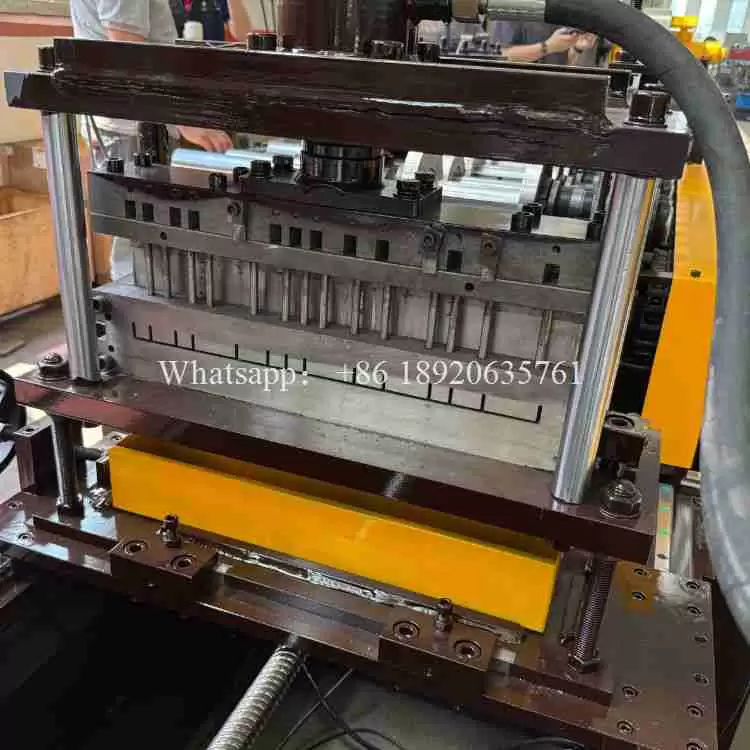

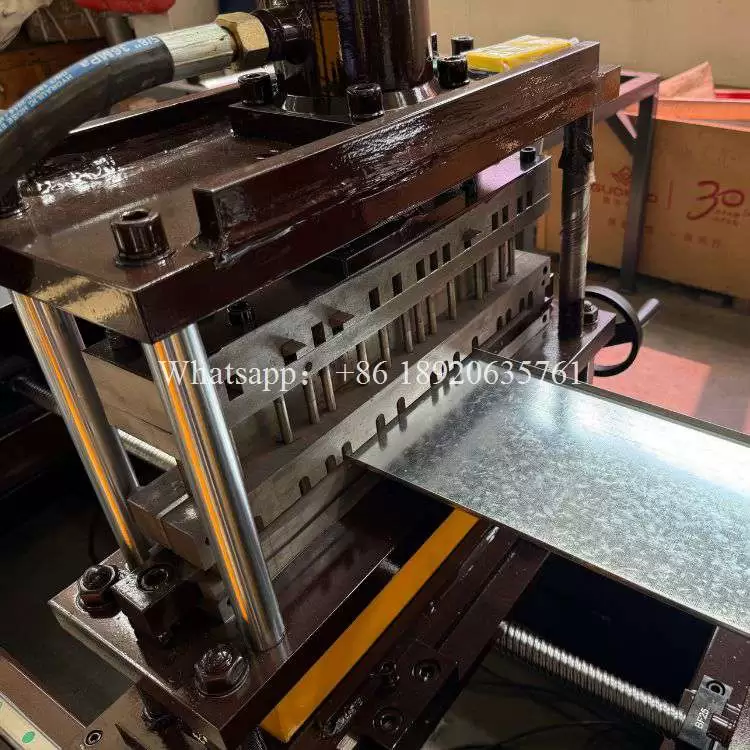

| Punching | Two-station punching machine for punching seven-shaped button holes and marking thickness 0.5-1.5 (optional) |
| Flat sheet machine roll forming part | Electric feed port 8-row roller forming Small side leveling Guide scale plate to adjust pressure Pressure spring adjustment Side reinforcement ribs and closing motor power (1.5KW) |
| Main motor power | 7.5 kw |
| Hydraulic components | Hydraulic station 2*7.5KW. Solenoid valve 220V. 3 stations |
| Cutting type | Hydraulic three-piece shear |
| Produce speed | 8-16m/min |
| Shaft material | Cr12 |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 0.5-2.5mm |
| Rows | 26 |
| Hydraulic station | Multiple solenoid valves, solenoid overflow valve, cooling system, motor power (7.5X2) KW, oil tank capacity (450) liters |
| Feeding width | 200-1250mm（200-800） |
