The Trapezoidal Double-Layer Roll Forming Line: Precision & Flexibility for Demanding Roofing Production

In the competitive world of metal roofing manufacturing, efficiency and versatility are paramount. The Trapezoidal Double-Layer Roll Forming Line represents a significant technological leap, specifically engineered for high-volume production of the popular trapezoidal profile roof panels across two distinct product lines, all within a single, integrated system. This advanced roll forming line eliminates the traditional bottleneck of single-profile production, offering unparalleled flexibility for manufacturers catering to diverse project requirements or managing separate product brands.

Roll Forming Process Workflow Diagram

More parameters

Machine Introduction & Core Innovation:

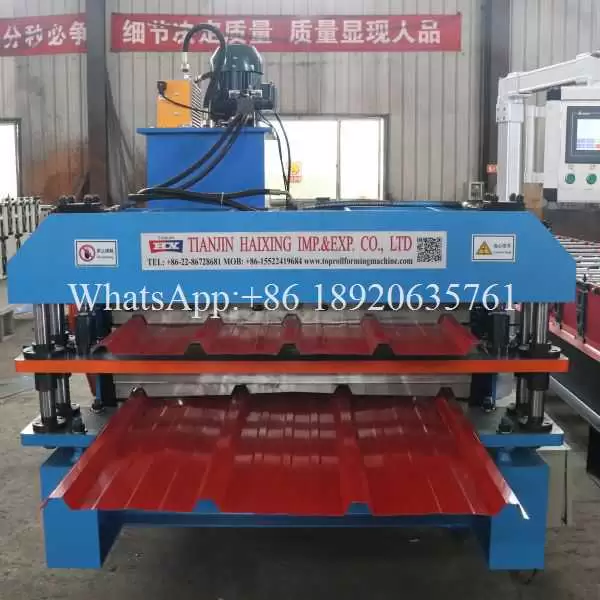

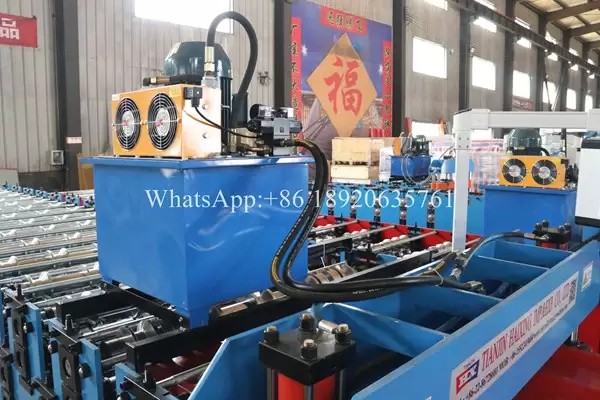

At its heart, this roll forming line is a sophisticated orchestration of precision engineering. Its defining feature is the dual, independent forming stations stacked vertically – an upper and a lower roll forming line. Each station is a self-contained roll forming line equipped with its own set of meticulously machined forming rolls, specifically designed to impart the classic trapezoidal shape with consistent accuracy, sharp bends, and optimal structural integrity. Crucially, these two roll forming line stations operate independently. While the machine houses both lines physically together for footprint efficiency, production runs are exclusive – only one roll forming line (upper or lower) is active at any given time. This design allows seamless switching between two completely different trapezoidal panel profiles (varying in height, width, flute count, or even metal gauge within limits) without the lengthy changeover times associated with traditional single roll forming line setups. Key upstream components include a heavy-duty decoiler and precision levelling system, feeding pristine coil stock into the active roll forming line. Downstream, a high-speed cutoff unit, driven by the roll forming line's encoder, ensures accurate, burr-free cuts. PLC control is central, managing the entire roll forming line process, from feed speed synchronization to precise cut length control for the active station.
