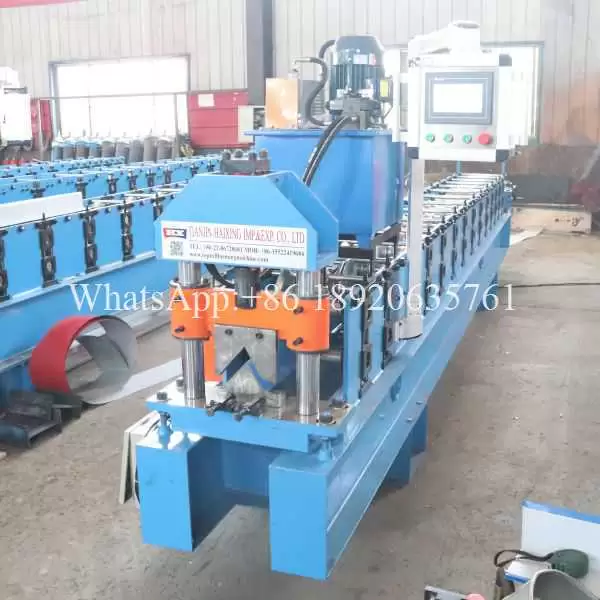

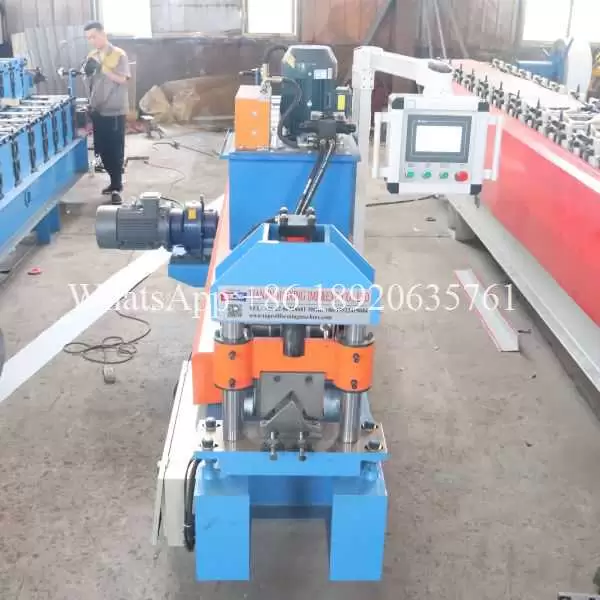

High-quality Roof Ridge Cap Roll Forming Machine Line
The Precision Powerhouse: Unpacking the Roof Ridge Cap Roll Forming Machine Line
In the demanding world of modern construction, efficiency, precision, and consistency are paramount. For roofing contractors and metal fabricators specializing in ridge caps – the crucial finishing element sealing the peak of a roof – the roof ridge cap roll forming machine line stands as an indispensable technological solution. This integrated production system transforms raw coil metal into perfectly formed, cut-to-length ridge cap profiles with remarkable speed and minimal waste, revolutionizing production capabilities. Understanding the flow of this sophisticated roof ridge cap roll forming machine line reveals the engineering excellence driving the roofing industry forward.
Roll Forming Process Workflow Diagram
More parameters
| Product Name |
High-quality Roof Ridge Cap Roll Forming Machine Line |
| Main motor power | 5.5 kw |
| Hydraulic station | 4 kw |
| Produce speed | 10-15 m/min |
| Shaft material | 45# Steel |
| Touch screen | PLC or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-60℃ |
| Cutting blade material | Cr12MoV, heat treatment HRC58-60℃ |
| Roller diameter | Φ70 mm |
| Voltage | 220v 60hz 3p be customized |
| Feeding thickness | 0.3-0.8mm |
| Rows | 14 |
| Feeding width | 250 mm |
Workflow:
The journey begins at the Decoiling Station. A heavy-duty decoiler, a core component of the roof ridge cap roll forming machine line, securely holds and feeds large coils of raw material – typically galvanized steel, galvalume, aluminum, or pre-painted metals – into the system. Tension control mechanisms ensure the metal strip feeds smoothly and consistently, preventing buckling or stretching that could compromise the final profile. The reliability of this initial stage is critical for the uninterrupted operation of the entire roof ridge cap roll forming machine line.
The flat metal strip then progresses to the Leveling Stage. Here, a precision leveler (or straightener) within the roof ridge cap roll forming machine line eliminates any inherent coil set, crossbow, or minor imperfections from the metal. A series of adjustable rolls apply carefully calibrated pressure to cold-work the material, resulting in a perfectly flat and uniform strip. This step is non-negotiable; any residual curvature or unevenness would cause significant problems in the forming process downstream, leading to defective profiles and downtime. The leveling unit ensures the material entering the heart of the roof ridge cap roll forming machine line is flawlessly prepared.

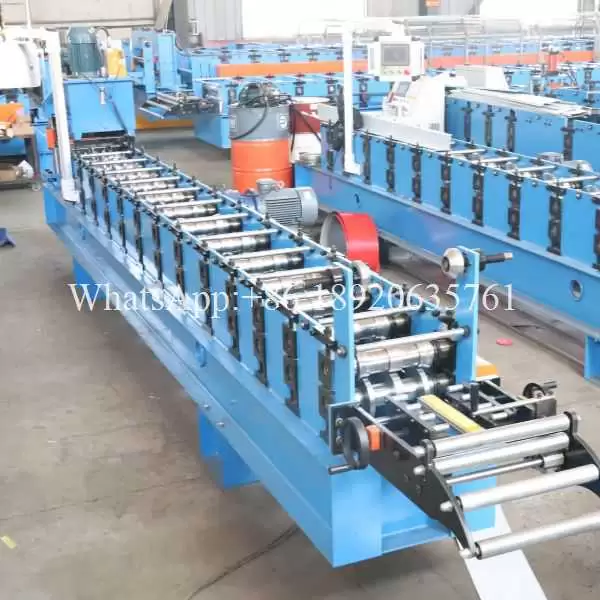

The heart of the operation is the Roll Forming Mill. This is where the roof ridge cap roll forming machine line truly performs its magic. The flat strip is progressively shaped into the specific ridge cap profile as it passes through a series of meticulously engineered roll stations. Each station, featuring hardened steel rolls mounted on robust shafts within heavy-gauge frames, imparts a small, incremental bend to the metal. The complexity of the final ridge cap design dictates the number of forming stands required in this section of the roof ridge cap roll forming machine line. Modern lines often feature quick-change tooling systems, allowing the same roof ridge cap roll forming machine line to produce multiple profile designs with minimal setup time, maximizing flexibility. Precision guidance systems ensure the strip tracks perfectly center throughout the forming process within the roof ridge cap roll forming machine line.

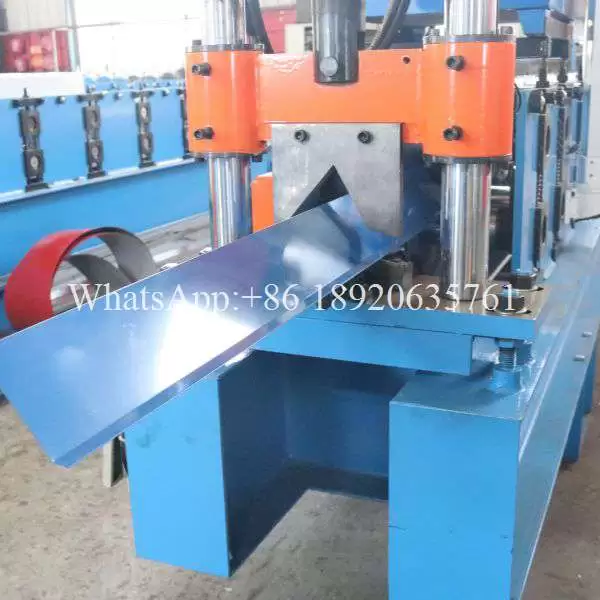

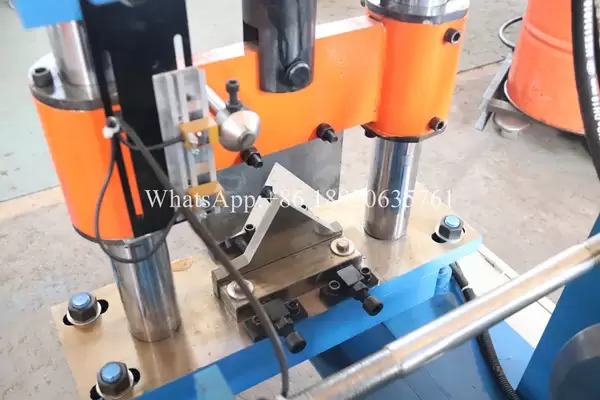

Once the continuous strip has been fully formed into the desired ridge cap shape, it reaches the Cutting Station. This is a critical point of precision within the roof ridge cap roll forming machine line. Most modern lines employ a hydraulic shear. This sophisticated cutter moves synchronously with the moving profile during the cut, eliminating the need to stop the line. A PLC (Programmable Logic Controller), the brain of the roof ridge cap roll forming machine line, receives encoder feedback on line speed and triggers the cutter at precisely the right moment to achieve accurate, burr-free cuts to pre-programmed lengths. The accuracy of this cutting unit is fundamental to product quality and minimizing material waste in the roof ridge cap roll forming machine line.

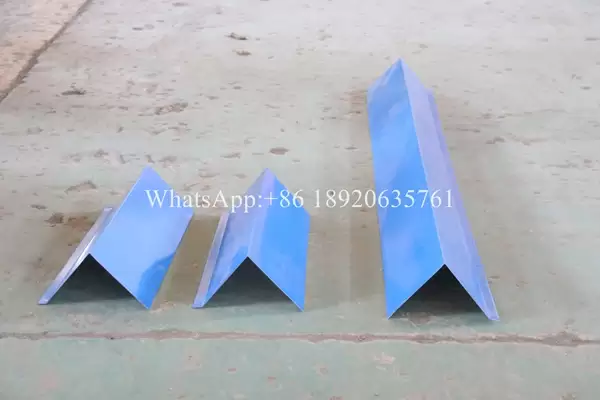

The final stage is Stacking and Output. The cut ridge cap pieces need to be organized for handling and transport. An automated stacking system, integrated seamlessly into the roof ridge cap roll forming machine line, receives the cut lengths. This might involve conveyors, rotating stacking tables, or gripper systems that gently collect the profiles and arrange them into neat, uniform bundles. The stacking sequence and bundle size are typically programmable features of the roof ridge cap roll forming machine line's control system, optimizing output for palletizing or direct loading onto trucks. Safety features, like light curtains or barriers, protect operators around the stacking area of the roof ridge cap roll forming machine line.
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a High-quality Roof Ridge Cap Roll Forming Machine Line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the High-quality Roof Ridge Cap Roll Forming Machine Line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
