PV Mounting Equipment Solar Bracket Roll Forming Machine
Advancing Solar Energy Infrastructure with PV Mounting Equipment Solar Bracket Roll Forming Machine
The global transition toward renewable energy has positioned solar power generation as a crucial component of sustainable development strategies worldwide. Photovoltaic systems require robust, reliable, and precisely manufactured mounting structures to ensure optimal performance and longevity. As a specialized manufacturer of cold roll forming machinery, we proudly introduce our advanced PV Mounting Equipment Solar Bracket Roll Forming Machine, a complete production solution engineered to manufacture high-quality solar mounting components with exceptional precision and efficiency. This sophisticated system represents our commitment to supporting the renewable energy sector with innovative manufacturing technology that meets the rigorous demands of solar project developers and mounting system manufacturers.

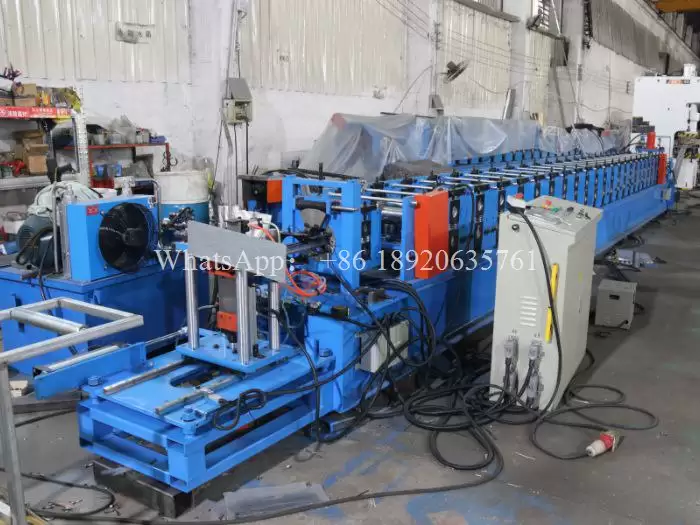

The production process of our PV Mounting Equipment Solar Bracket Roll Forming Machine incorporates a fully automated, streamlined workflow that ensures consistent quality from raw material to finished product.

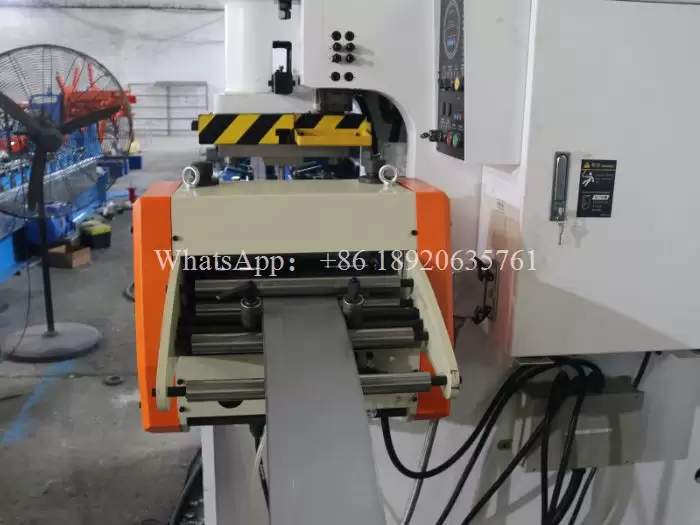

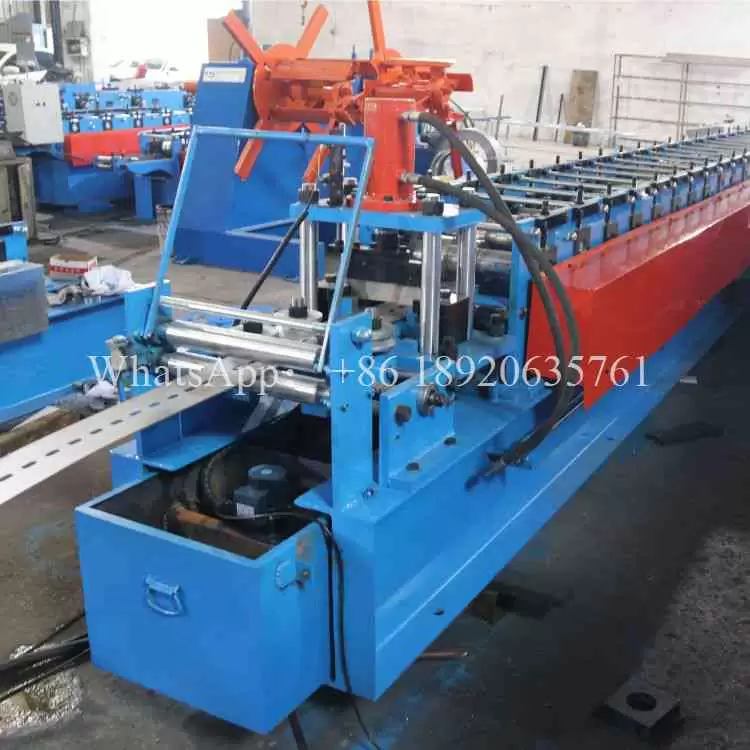

The operation begins with an automatic decoiling system that feeds steel or aluminum coils into the production line with precise tension control. The material then proceeds to the precision feeding mechanism, which maintains accurate positioning and steady advancement toward the punching station. Here, a computer-controlled punching unit creates precise holes for bolts, connectors, and mounting points according to project specifications.

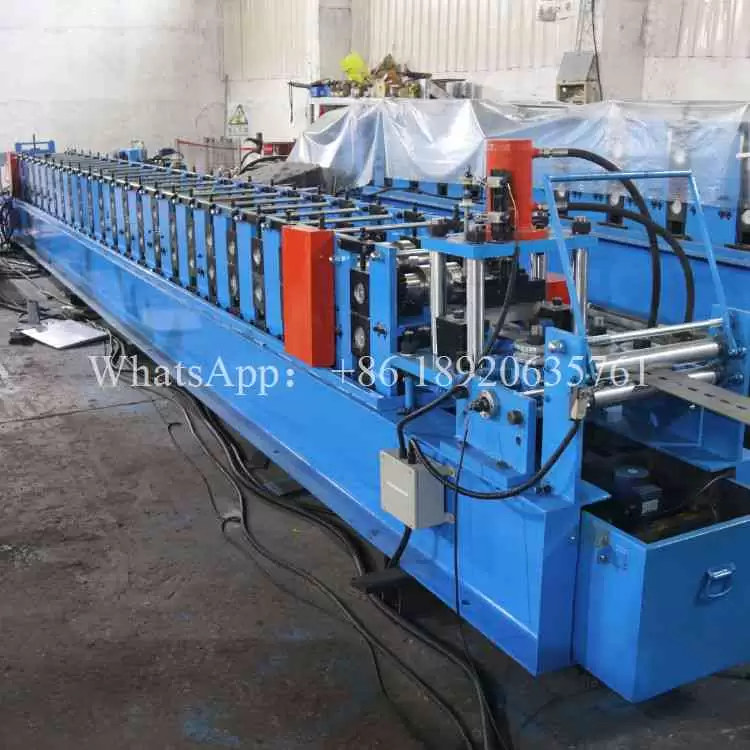

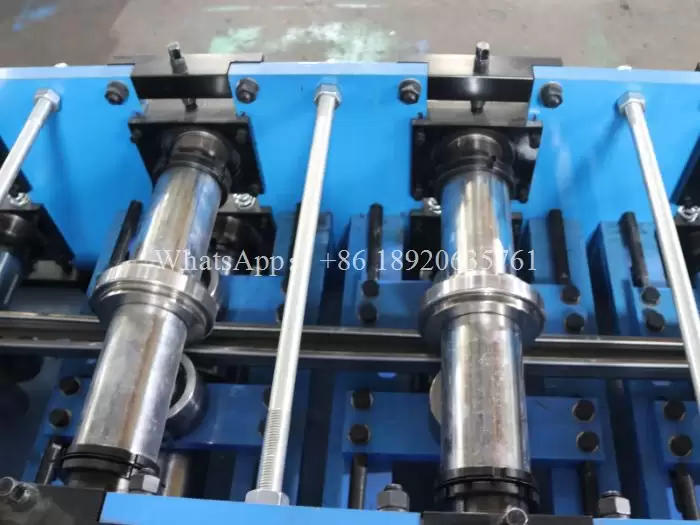

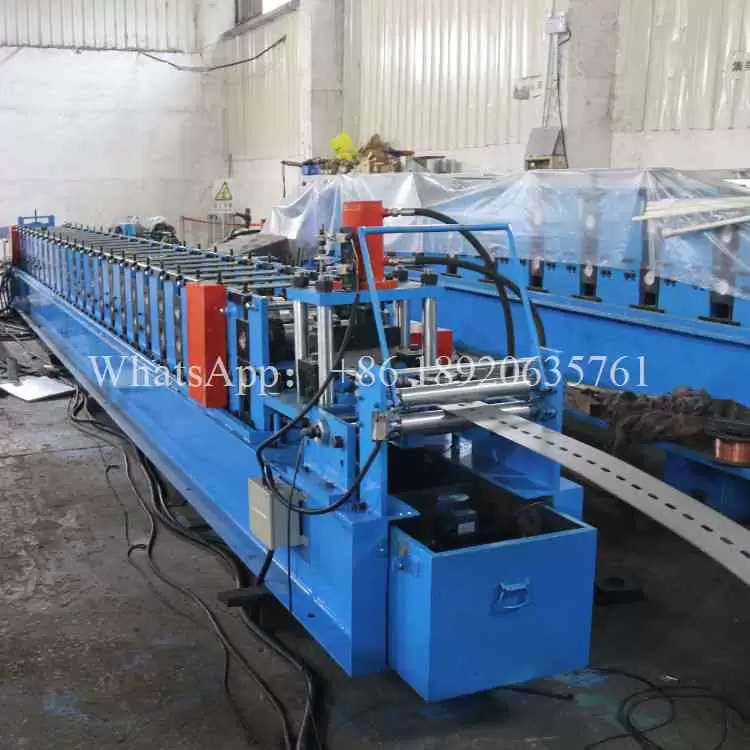

The heart of the system is the advanced roll forming section, where the material passes through a series of engineered rollers that gradually shape it into the required solar bracket profiles.
Following the forming stage, a high-speed flying shear accurately cuts the continuous profiles to required lengths, and an automated stacking system organizes the finished brackets for convenient handling and shipment.

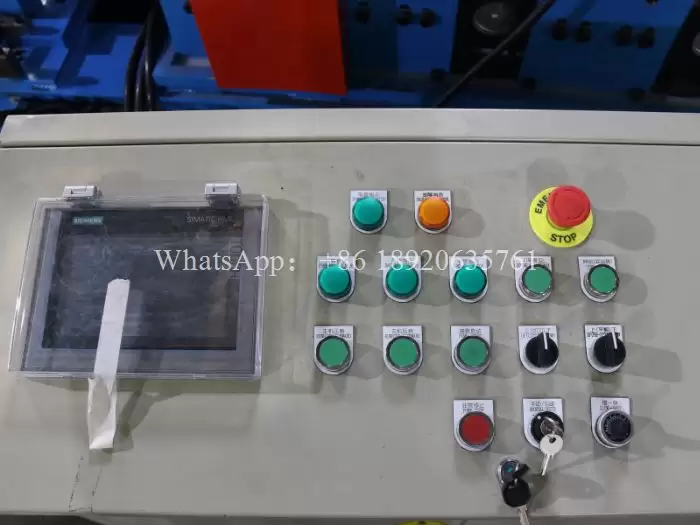

What truly distinguishes our PV Mounting Equipment Solar Bracket Roll Forming Machine is its exceptional customization capability and operational versatility. The equipment offers comprehensive adjustment options, allowing manufacturers to modify material thickness (typically ranging from 1.0mm to 3.0mm), material width, operational voltage compatibility, display language interface, and punching patterns including hole sizes and positions. This remarkable flexibility ensures that our PV Mounting Equipment Solar Bracket Roll Forming Machine can be seamlessly integrated into diverse manufacturing environments, producing solar mounting components that meet specific project requirements and international quality standards. The machine's intelligent control system, featuring advanced PLC and user-friendly touch-screen interfaces, enables operators to monitor and adjust production parameters with precision, ensuring consistent quality and optimal efficiency throughout the manufacturing process.
Beyond the advanced machinery, we provide comprehensive technical support to ensure optimal performance and minimal downtime. Our remote service program includes real-time video guidance from experienced engineers, who can assist with machine installation, operational training, maintenance procedures, and troubleshooting through digital platforms. This support system ensures that your PV Mounting Equipment Solar Bracket Roll Forming Machine maintains peak performance throughout its operational lifecycle, regardless of your geographical location.
Investing in our PV Mounting Equipment Solar Bracket Roll Forming Machine represents a strategic decision to enhance manufacturing capabilities in the rapidly growing solar energy sector. This sophisticated production solution enables manufacturers to produce high-quality solar mounting components with exceptional consistency, supporting the global transition toward clean energy. As solar power generation continues to expand worldwide, our PV Mounting Equipment Solar Bracket Roll Forming Machine provides manufacturers with the capability to meet increasing market demands while maintaining competitive advantage through superior manufacturing technology and unwavering technical support. The reliability, precision, and adaptability of this machine make it an invaluable asset for manufacturers dedicated to excellence in the renewable energy industry. View more...→
More parameters
| Product Name | PV Mounting Equipment Solar Bracket Roll Forming Machine |
| Punching | Servo non-stop punching |
| Structure | 500H Beam |
| Main motor power | Dual 18.5KW motors + K97 reducer |
| Hydraulic components | 11KW×2 pump station 1 unit (for punching) 4KW pump station 1 unit (for cutting) 3KW pump station 1 unit (for pressing) |
| Cutting type | Tracking Cut |
| Produce speed | 15-20 m/min |
| Shaft material | 45# steel, quenched and tempered |

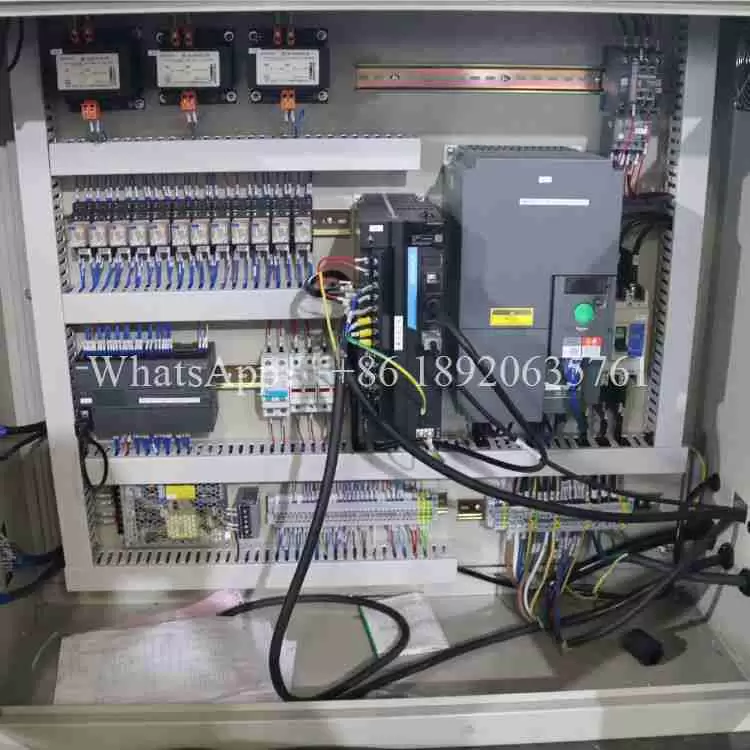

| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 2.0-3.0mm |
| Rows | The number of rows is usually 24-26, and the 3mm thick 41*72 model may have 28 rows. |

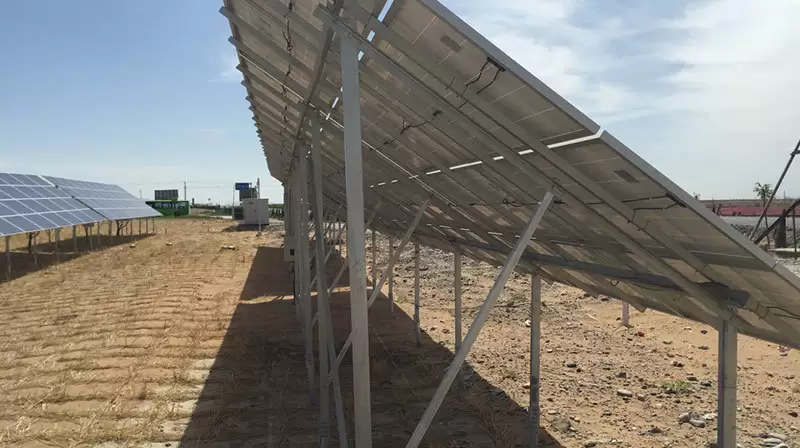

Application Scenario
Our photos with our customers
About us
HOPEX (Xiamen) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a PV Mounting Equipment Solar Bracket Roll Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the PV Mounting Equipment Solar Bracket Roll Forming Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
