Solar Strut Channel Roll Forming Machine
Unlocking Efficiency with the Advanced Solar Strut Channel Roll Forming Machine
In the rapidly expanding solar energy sector, the demand for high-quality, reliable, and cost-effective mounting solutions is paramount. As a leading manufacturer in the industry, we are proud to introduce our state-of-the-art Solar Strut Channel Roll Forming Machine, a cornerstone piece of equipment designed to revolutionize your production of solar support structures. This highly automated line is engineered for precision, versatility, and exceptional throughput, making it an indispensable asset for any manufacturer aiming to lead the market.
Our Solar Strut Channel Roll Forming Machine stands out due to its comprehensive customization capabilities. We understand that project specifications vary, which is why our machine can be tailored to your exact requirements. Key parameters such as material thickness, feeding width, electrical voltage, and the interface language of the user-friendly control panel are all adaptable. Furthermore, the integrated punching station can be configured for custom hole sizes and specific positions along the strut channel, ensuring the final product meets precise design and assembly needs.

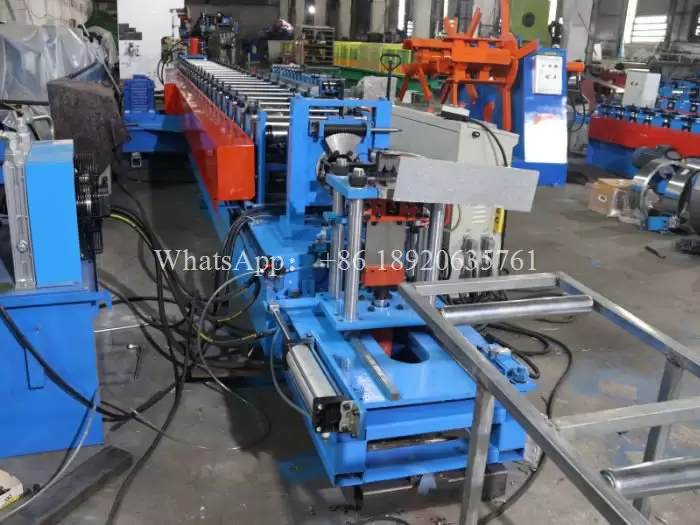

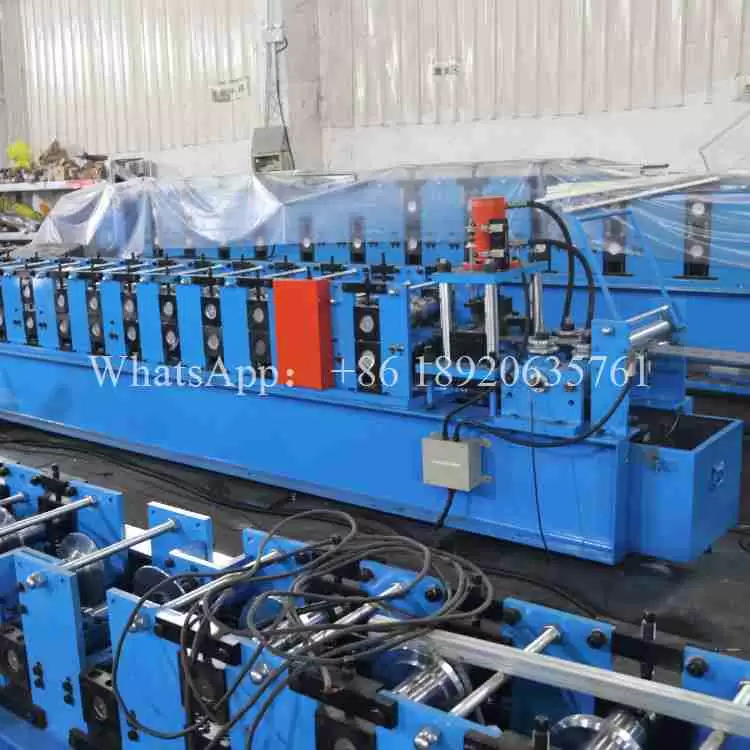

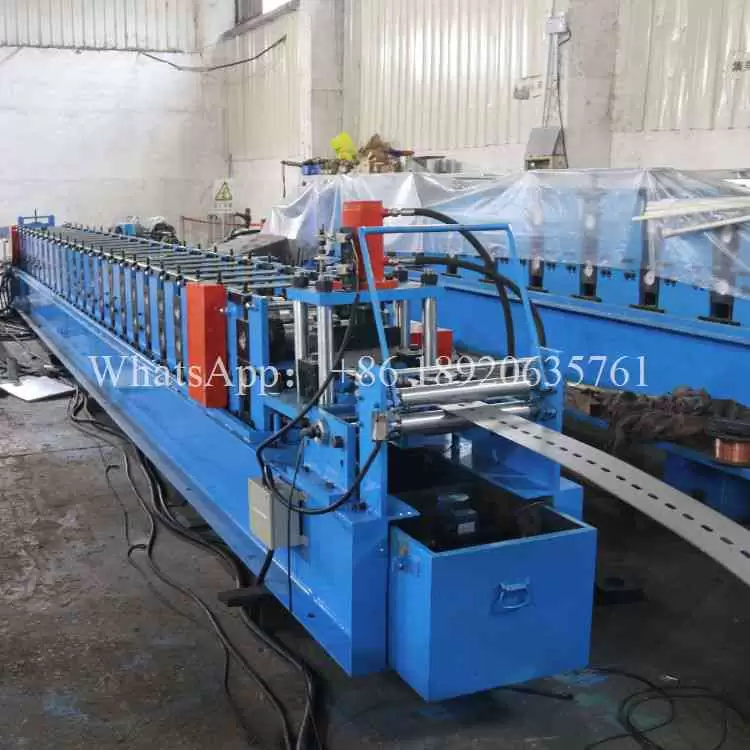

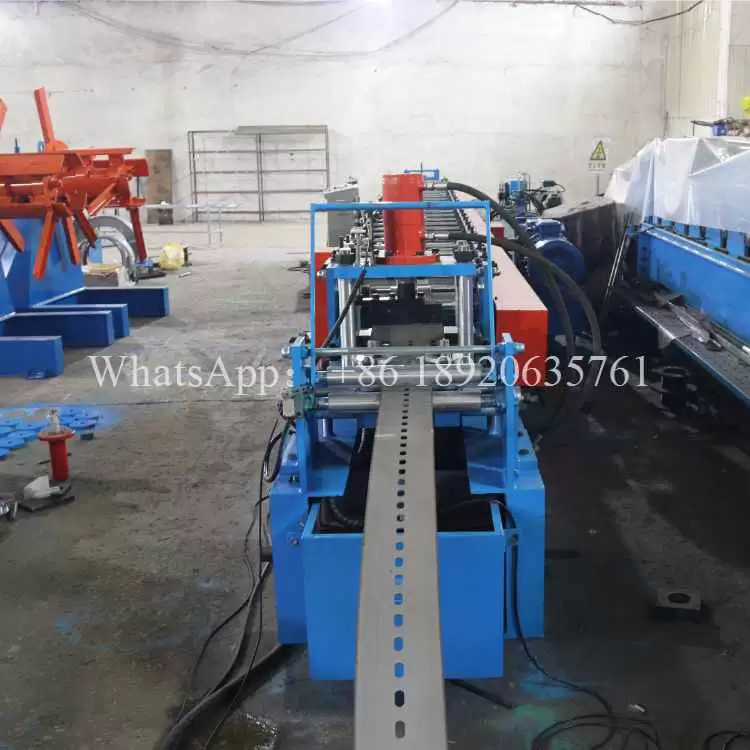

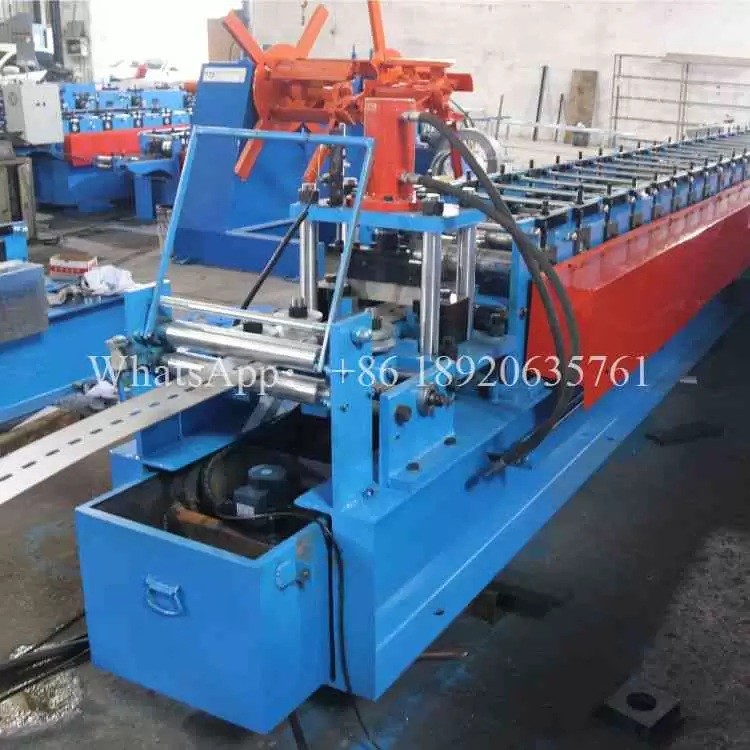

The production process of our Solar Strut Channel Roll Forming Machine is a seamless, integrated workflow that maximizes efficiency from raw material to finished product. The process begins with an uncoiling unit that feeds the steel coil into the system. This is followed by a precision servo feeding mechanism that ensures accurate material advancement. Next, a high-tonnage punching unit performs the pre-punching of bolt holes and other necessary features with pinpoint accuracy. The heart of the system is the robust roll forming station, where a series of meticulously designed roller dies gradually shape the metal strip into a perfect solar strut channel profile. The continuous line then moves to a flying cutting system that shears the profiles to the required length without stopping the machine, guaranteeing high productivity. Finally, an automatic stacking and palletizing unit organizes the finished channels for easy handling and shipment.
Beyond the hardware, we provide unparalleled after-sales support. Our team of experienced engineers offers comprehensive remote quality assurance. Through video online guidance, they can assist with operational training, routine maintenance, and troubleshooting, ensuring your Solar Strut Channel Roll Forming Machine operates at peak performance with minimal downtime, no matter your location.
Investing in our Solar Strut Channel Roll Forming Machine means investing in productivity, flexibility, and long-term partnership. It is more than just a machine; it is a complete production solution engineered for the future of solar energy. By choosing our equipment, you are not only acquiring a top-tier manufacturing tool but also a reliable partner committed to your success in the global renewable energy marketplace. Contact us today to discuss how we can customize the perfect Solar Strut Channel Roll Forming Machine for your specific manufacturing needs.View more...→
More parameters
| Product Name | Solar Strut Channel Roll Forming Machine |
| Punching | Servo non-stop punching |
| Structure | 500H Beam |
| Main motor power | Dual 18.5KW motors + K97 reducer |

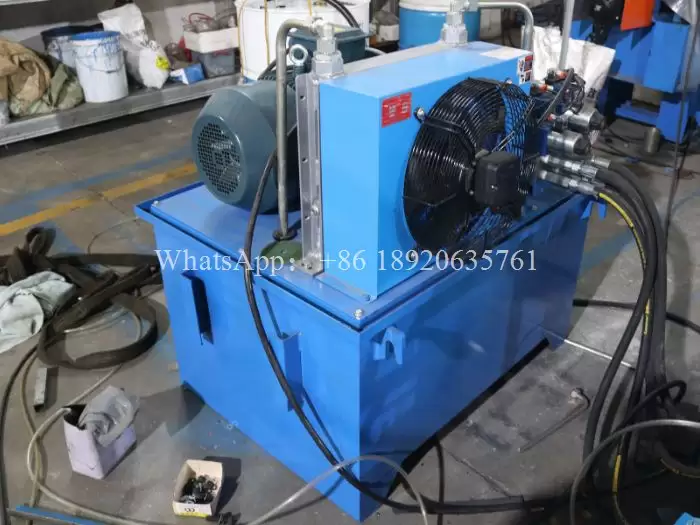

| Hydraulic components | 11KW×2 pump station 1 unit (for punching) 4KW pump station 1 unit (for cutting) 3KW pump station 1 unit (for pressing) |
| Cutting type | Tracking Cut |
| Produce speed | 15-20 m/min |
| Shaft material | 45# steel, quenched and tempered |

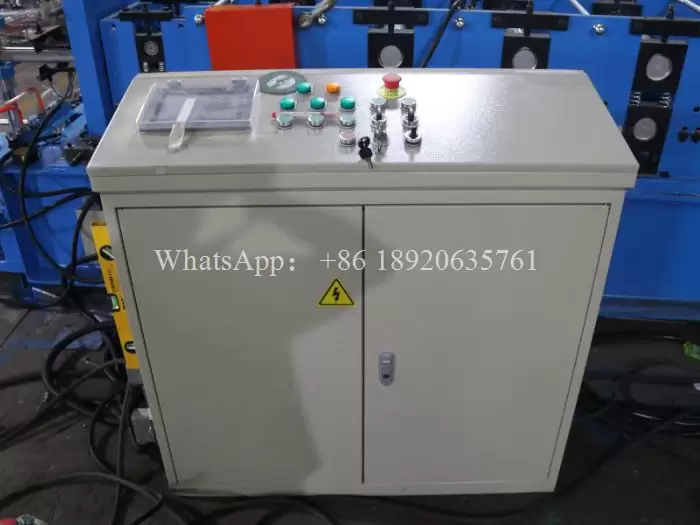

| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

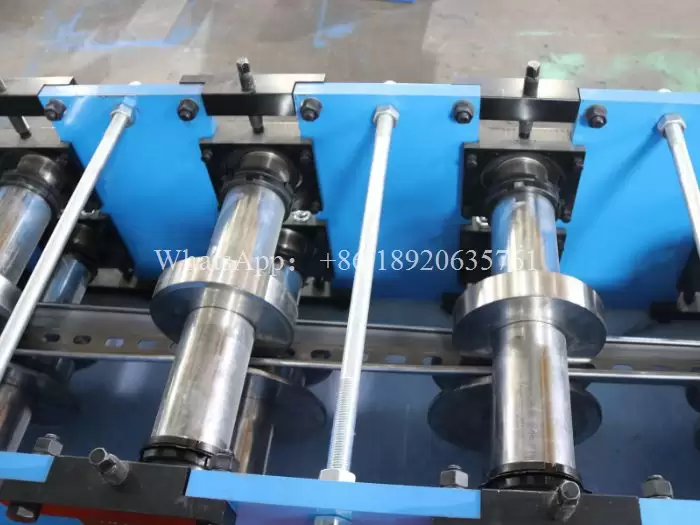

| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 2.0-3.0mm |
| Rows | The number of rows is usually 24-26, and the 3mm thick 41*72 model may have 28 rows. |
Application Scenario
Our photos with our customers
About us
HOPEX (Xiamen) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Xiamen in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Solar Strut Channel Roll Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Solar Strut Channel Roll Forming Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
