Automated Production Roll Forming Machine for Solar Structure
Revolutionizing Solar Energy Infrastructure with Automated Production Roll Forming Machine for Solar Structure
The global transition toward renewable energy solutions has created unprecedented demand for efficient, reliable solar mounting systems. As solar projects scale up worldwide, manufacturers require advanced production equipment that combines precision engineering with operational efficiency. This sophisticated Automated Production Roll Forming Machine for Solar Structure integrates automation technology with robust mechanical design to deliver exceptional production quality while significantly reducing labor costs and operational overhead.

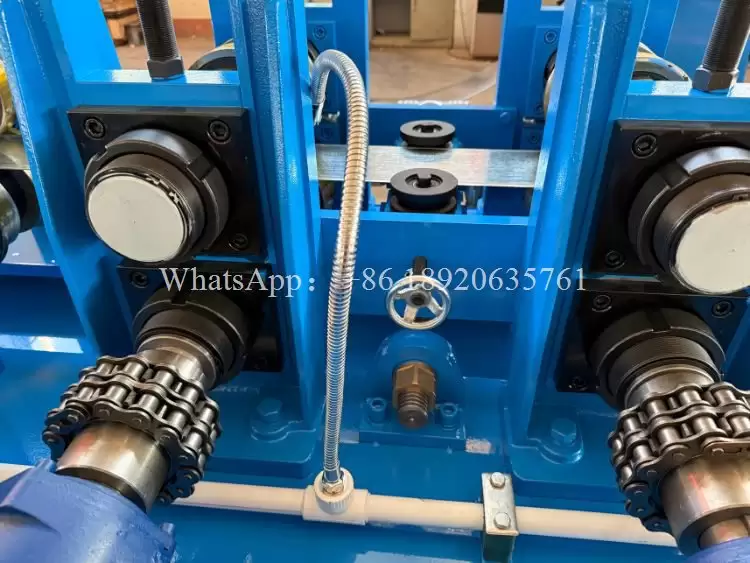

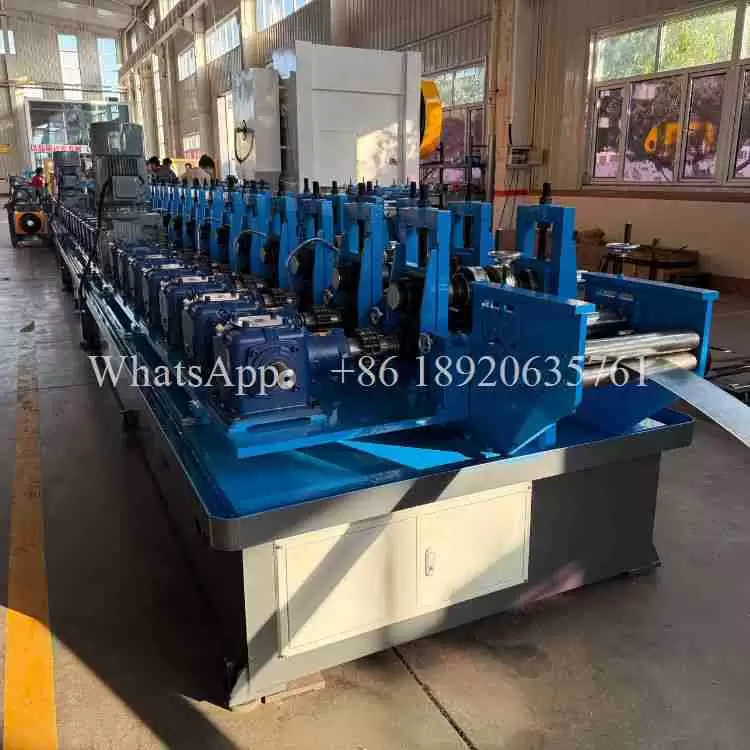

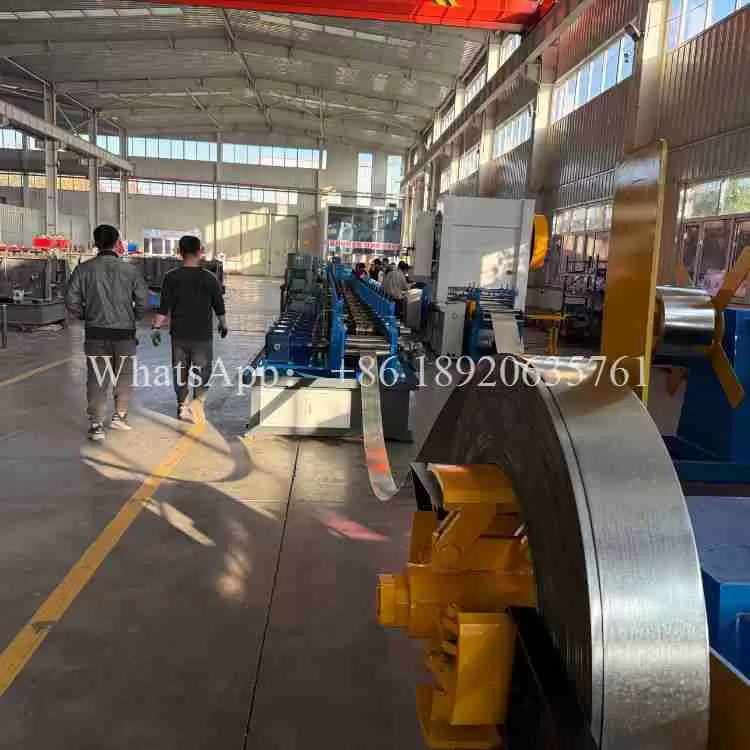

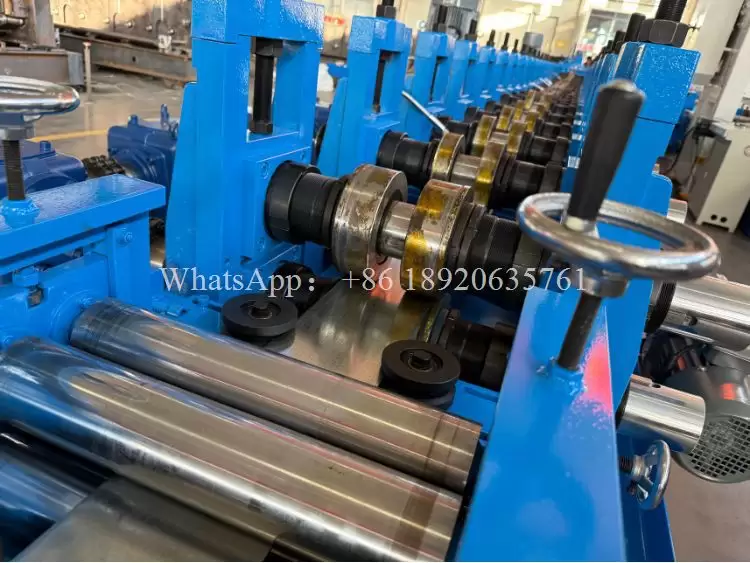

The production sequence begins with automated decoiling that maintains precise tension control while feeding steel or aluminum coils into the system. The material then advances through the precision roll forming section where computer-designed rollers gradually shape it into specific solar structure profiles.

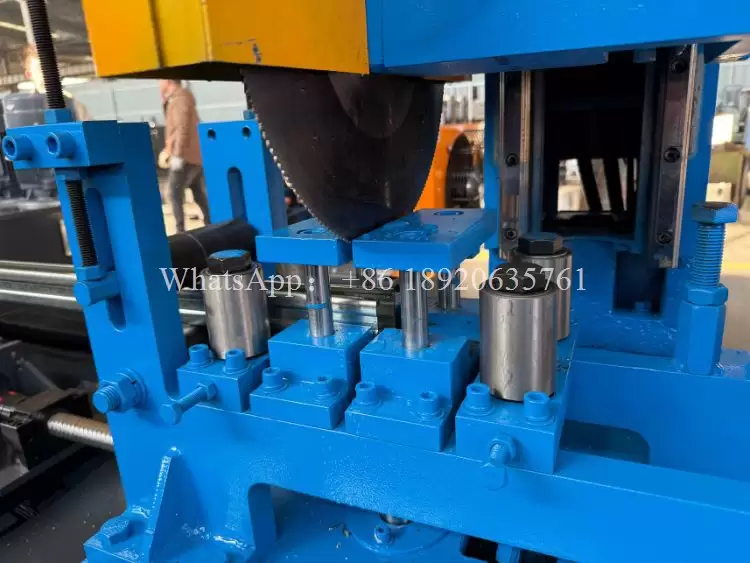

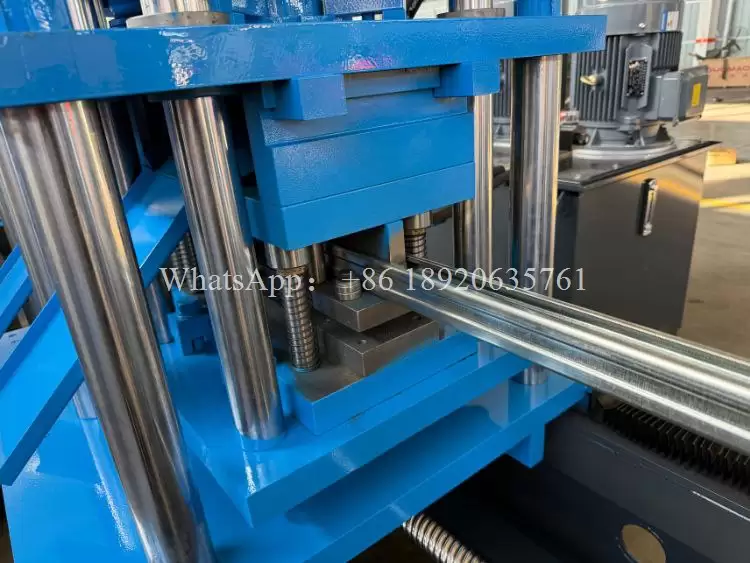

The integrated punching station creates accurate mounting holes and connection points according to project specifications, while the disk cutting mechanism ensures clean, precise sectioning of the profiles. The process concludes with an automated stacking system that organizes finished products for packaging and shipment.
What sets our Automated Production Roll Forming Machine for Solar Structure apart is its remarkable automation capabilities and customization flexibility. The equipment allows comprehensive adjustment of punching patterns, hole sizes and positions, material thickness, and other critical parameters to meet specific project requirements. This high level of automation in the Automated Production Roll Forming Machine for Solar Structure enables continuous operation with minimal manual intervention, dramatically reducing labor costs while maintaining consistent production quality. The machine's advanced control system, featuring sophisticated PLC technology and user-friendly interface, allows operators to monitor and adjust all production parameters with unprecedented precision.
More parameters
| Product Name | Automated Production Roll Forming Machine for Solar Structure |
| Punching | Servo non-stop punching |
| Structure | 500H Beam |
| Main motor power | Dual 18.5KW motors + K97 reducer |
| Hydraulic components | 11KW×2 pump station 1 unit (for punching) 4KW pump station 1 unit (for cutting) 3KW pump station 1 unit (for pressing) |
| Cutting type | Tracking Cut |
| Produce speed | 15-20 m/min |
| Shaft material | 45# steel, quenched and tempered |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 2.0-3.0mm |
| Rows | The number of rows is usually 24-26, and the 3mm thick 41*72 model may have 28 rows. |
Application Scenario
Our photos with our customers
About us
HOPEX (Xiamen) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Xiamen in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Automated Production Roll Forming Machine for Solar Structure. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Automated Production Roll Forming Machine for Solar Structure be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
