High-precision roll forming machine for solar structure
Powering the Future: Precision-Engineered Roll Forming Machine for Solar Structure Fabrication
For 28 years, our expertise in industrial machinery design has empowered manufacturers globally. As the demand for clean, renewable energy surges, the infrastructure supporting solar farms and rooftop installations becomes increasingly critical. At the heart of this infrastructure lies the Roll Forming Machine for Solar Structure – a technological cornerstone engineered specifically for the high-volume, precision production of the galvanized (G.I.) components that form the backbone of photovoltaic (PV) mounting systems. Understanding the capabilities and workflow of a modern Roll Forming Machine for Solar Structure is essential for manufacturers aiming to lead in the fast-growing solar energy sector.

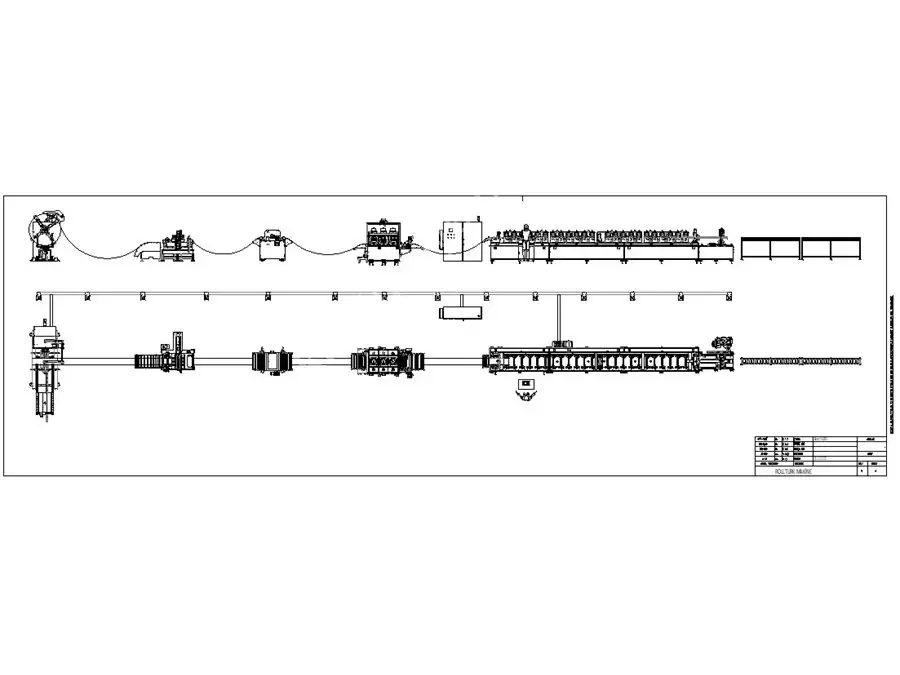

Workflow Diagram
More parameters
| Product Name | roll forming machine for solar structure |
| Punching | Servo non-stop punching |
| Structure | 500H Beam |
| Main motor power | Dual 18.5KW motors + K97 reducer |
| Hydraulic components | 11KW×2 pump station 1 unit (for punching) 4KW pump station 1 unit (for cutting) 3KW pump station 1 unit (for pressing) |
| Cutting type | Tracking Cut |
| Produce speed | 15-20 m/min |
| Shaft material | 45# steel, quenched and tempered |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 2.0-3.0mm |
| Rows | The number of rows is usually 24-26, and the 3mm thick 41*72 model may have 28 rows. |
