Precision Engineered for Protection: The Cable Tray Manufacturing Machine

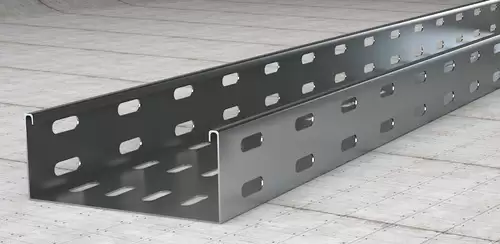

For over 28 years, our company has stood at the forefront of industrial machinery design, dedicated to equipping manufacturers with robust, efficient solutions. Among our flagship offerings, the Cable Tray Manufacturing Machine represents a pinnacle of engineering, specifically crafted to produce the essential protective channels for electrical and data cabling systems worldwide. These galvanized (G.I.) cable trays are the unsung heroes of modern infrastructure, safeguarding vital conduits in commercial buildings, industrial plants, data centers, and beyond. Understanding the intricate workflow and capabilities of a modern Cable Tray Manufacturing Machine is key to appreciating its critical role in efficient construction and industrial operations.

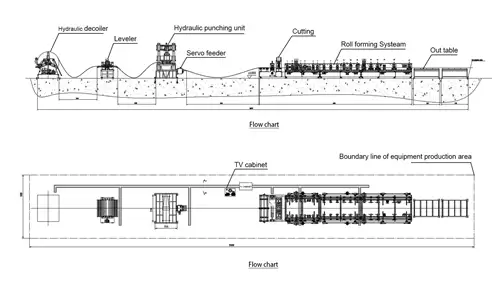

Workflow Diagram

More parameters

The Engineered Workflow: From Coil to Finished Cable Tray

The efficiency of a Cable Tray Manufacturing Machine stems from its meticulously sequenced operation, where each stage plays a vital role:

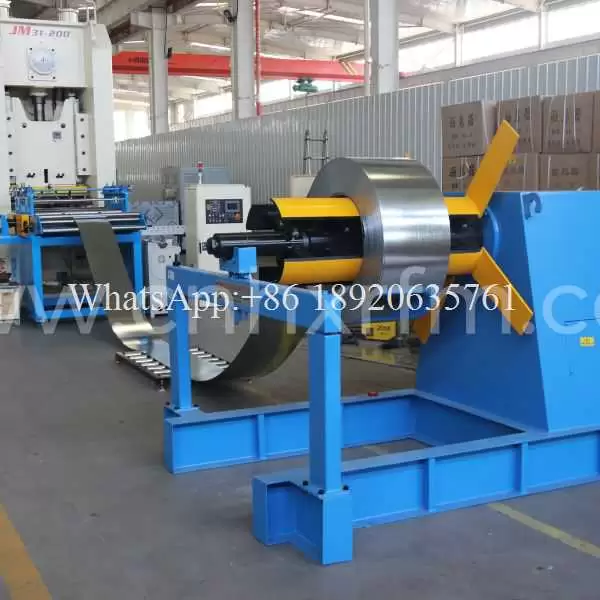

Uncoiling & Feeding (Uncoiler): The process begins with a heavy-duty decoiler or uncoiler. This unit securely holds the large coil of raw material (steel sheet, typically 0.5mm to 2.5mm thick) and feeds it steadily into the production line. Modern machines often feature hydraulic or motorized arms for effortless coil loading and automatic centering to ensure smooth, consistent material flow. Precision feeding is the critical first step for the entire Cable Tray Manufacturing Machine line.

Leveling & Straightening (Leveler/Straightener): As the sheet metal exits the coil, it inevitably carries curvature and internal stresses from the coiling process. Passing through a multi-roll leveler is crucial. This stage employs a series of precisely adjusted rolls that bend the material back and forth beyond its yield point, effectively eliminating coil set, crossbow, and edge wave. The output is flawlessly flat and straight sheet metal – an absolute prerequisite for precision punching and forming later in the Cable Tray Manufacturing Machine.

Precision Punching (Punching Station): This is often the heart of the machine's flexibility. A high-tonnage punching unit, equipped with custom-designed multi-tool dies, rapidly punches the required patterns into the leveled sheet. This includes:
Side Rail Holes: For connecting sections end-to-end.Rung Mounting Holes: For attaching cross-members (rungs/ladder types) or forming the bottom profile (trough types).Ventilation Holes: Crucial for heat dissipation in cable management.Grounding Holes/Lugs: For safety compliance.

Precision Punching (Punching Station): This is often the heart of the machine's flexibility. A high-tonnage punching unit, equipped with custom-designed multi-tool dies, rapidly punches the required patterns into the leveled sheet. This includes:
Side Rail Holes: For connecting sections end-to-end.Rung Mounting Holes: For attaching cross-members (rungs/ladder types) or forming the bottom profile (trough types).Ventilation Holes: Crucial for heat dissipation in cable management.Grounding Holes/Lugs: For safety compliance.

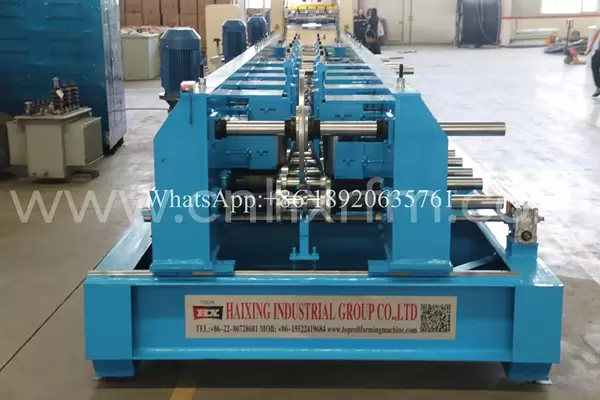

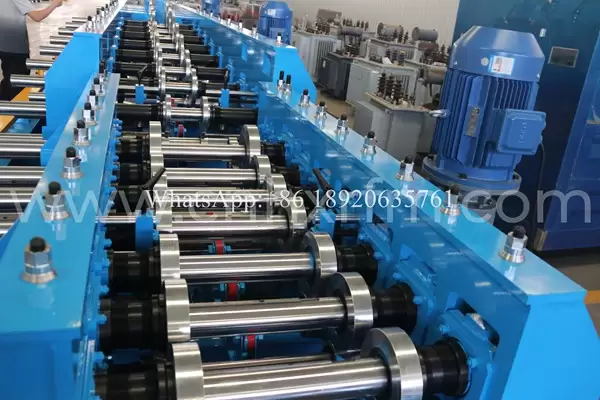

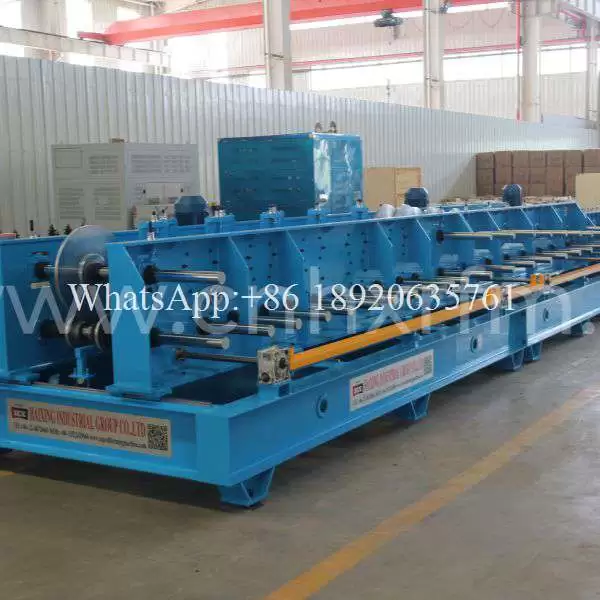

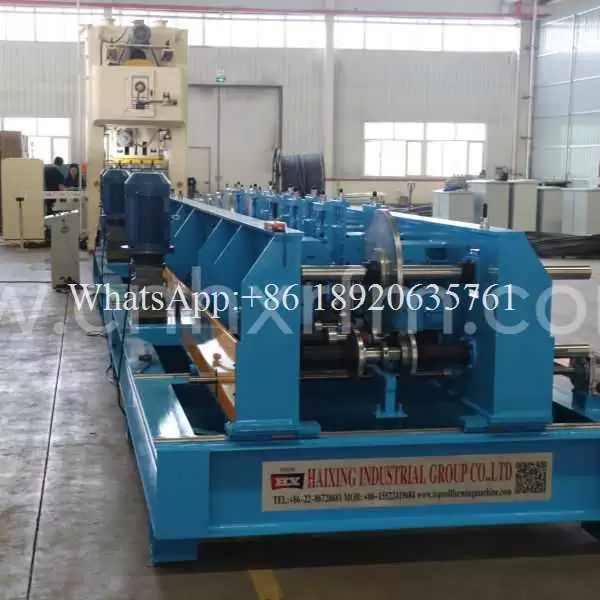

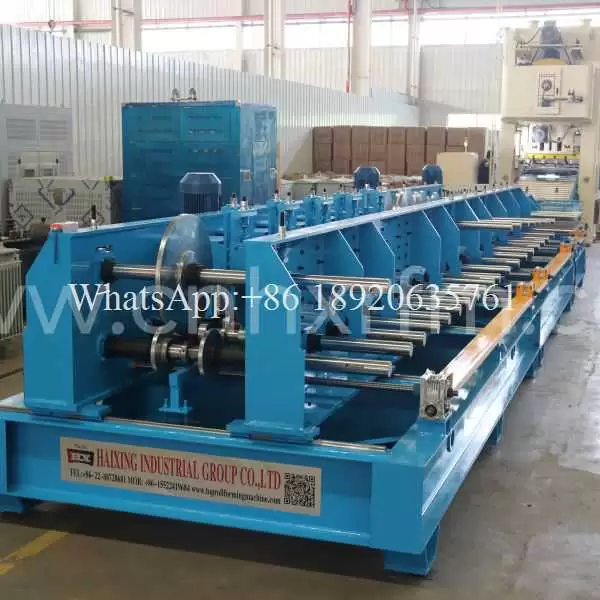

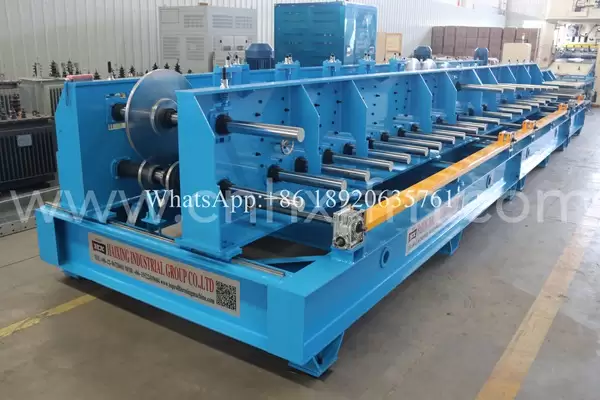

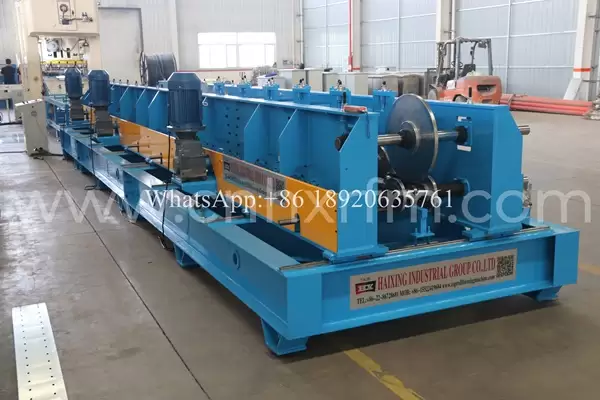

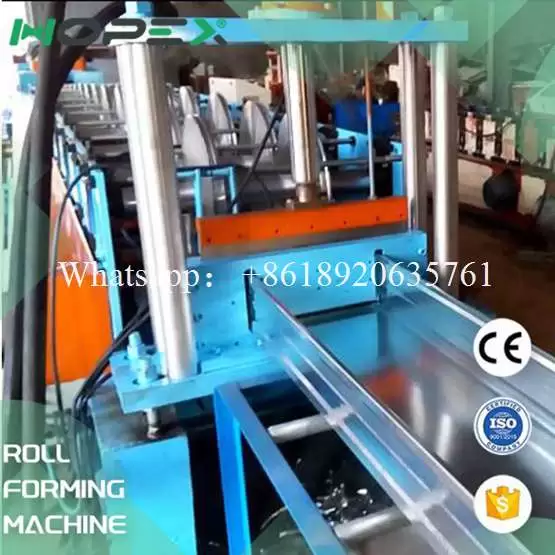

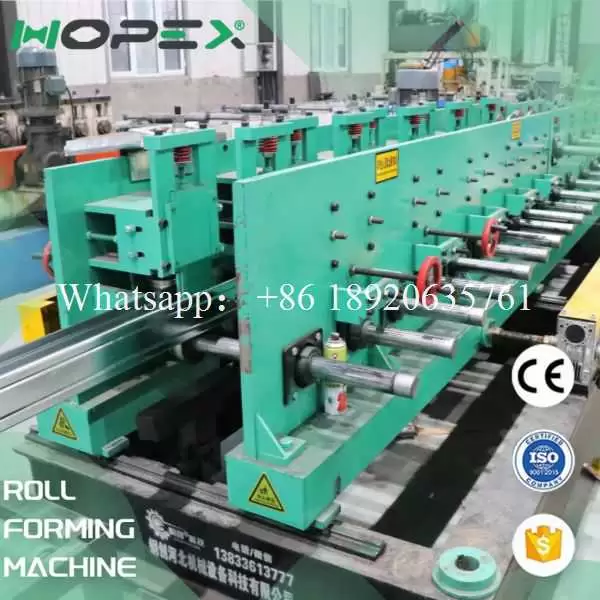

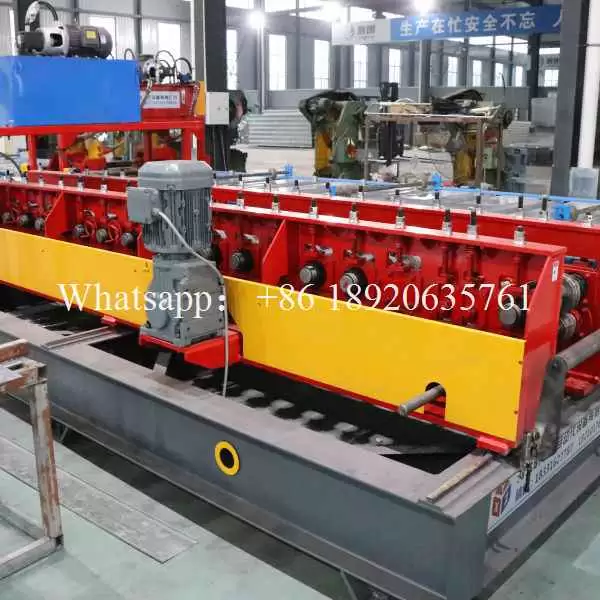

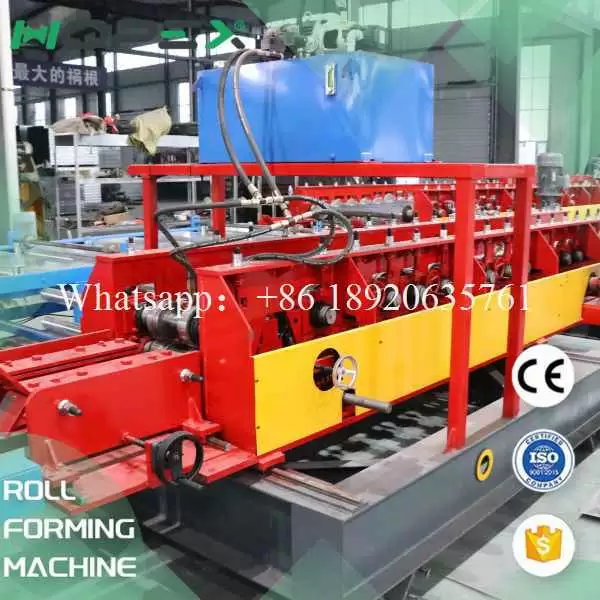

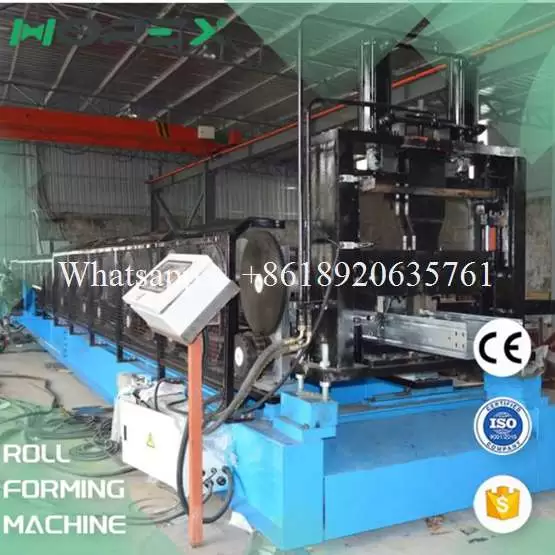

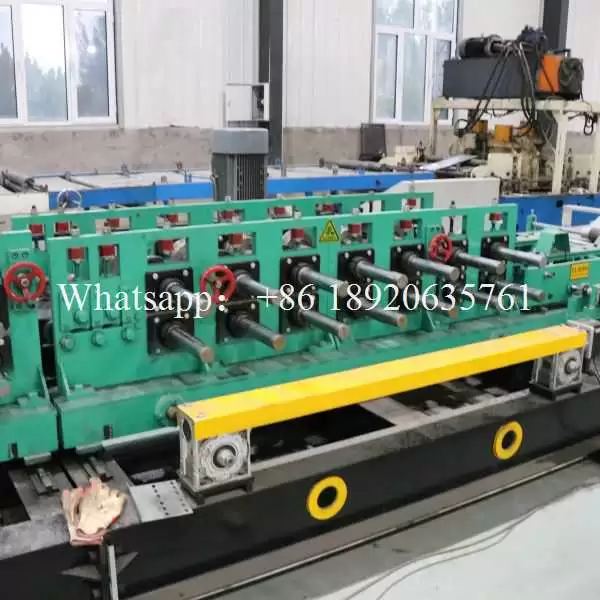

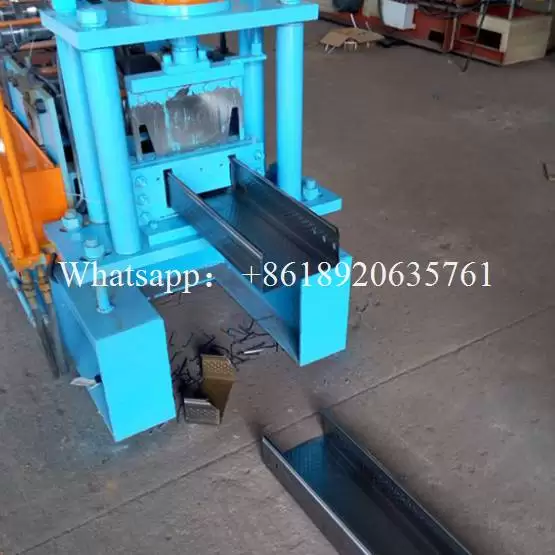

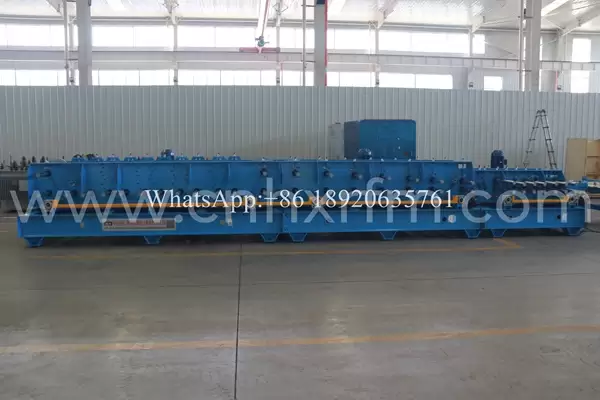

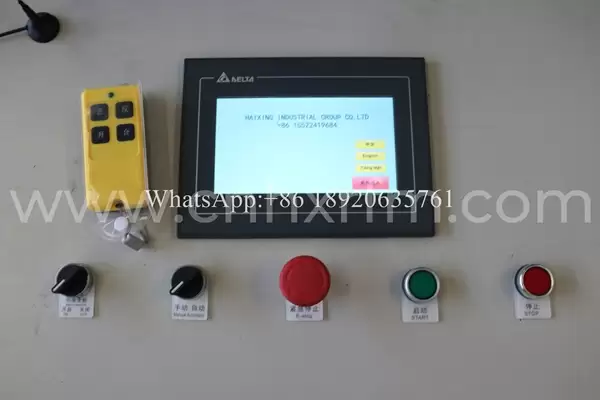

Forming profile (roll forming station): The punched and cut blanks then enter the most visually striking stage: the roll forming section. This section consists of a series of precision-engineered forming roller stands arranged one after the other. Each roller stand contains contour rollers that gradually cold-form the flat sheet into the complex three-dimensional profile of the cable tray side rails. Common profiles include ladder trays, tray trays without holes (trough trays), tray trays with holes (tray cable trays), energy-saving trays, and Russian trays. The number of forming stands determines the complexity and quality of the final formed profile of the cable tray manufacturing machine. Modern production lines are usually equipped with final shape calibration stands to ensure perfect dimensions.

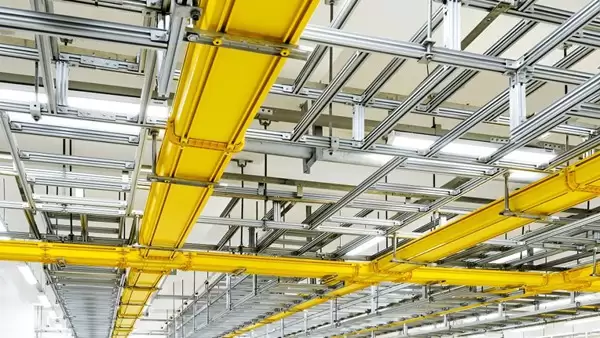

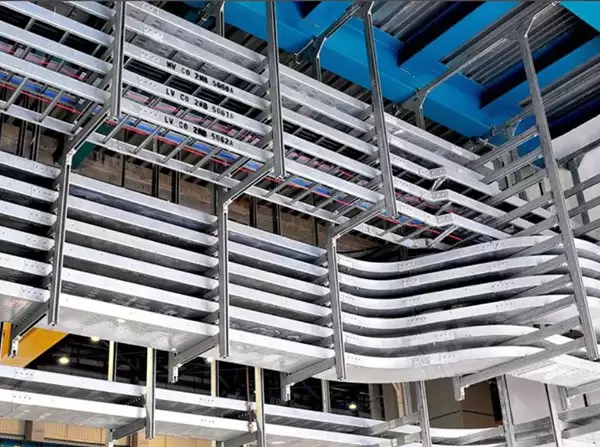

Application Scenario

Our photos with our customers

Why Choose Us?

About us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Cable Tray Manufacturing Machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the Cable Tray Manufacturing Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
