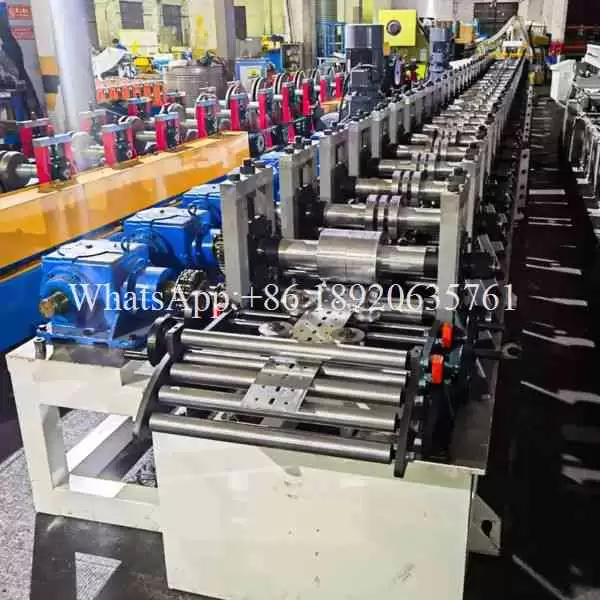

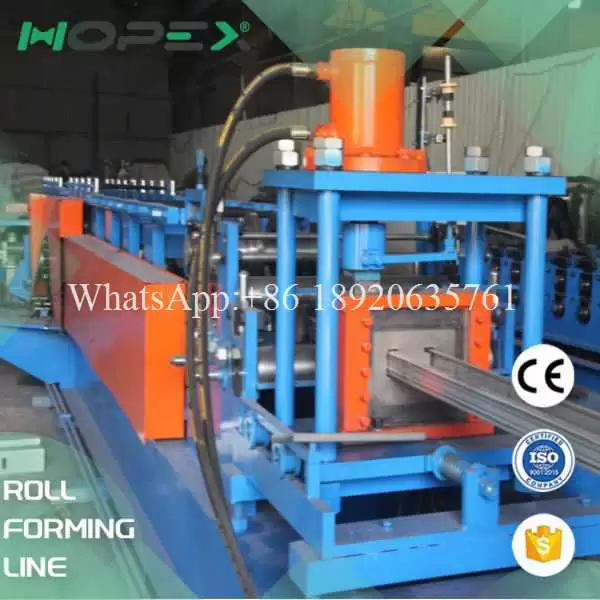

Advanced solar channel roll forming machine
Powering Solar Farms: The Precision of Solar Channel Roll Forming Machines
The rapid expansion of solar energy infrastructure demands efficient, high-volume production of its fundamental building blocks: the mounting channels. These critical components, forming the backbone of ground mounts and rooftop arrays, require specialized manufacturing. Enter the solar channel roll forming machine – an integrated production line engineered for precision, speed, and reliability in creating the essential profiles for photovoltaic mounting systems.
Workflow Diagram
More parameters
| Product Name | solar channel roll forming machine |

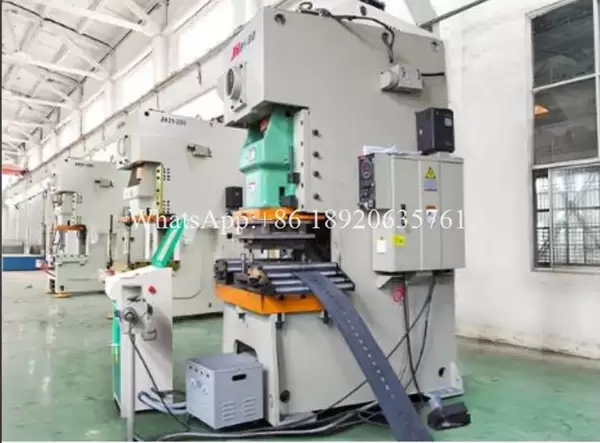

| Punching | Servo non-stop punching |
| Structure | 500H Beam |
| Main motor power | Dual 18.5KW motors + K97 reducer |
| Hydraulic components | 11KW×2 pump station 1 unit (for punching) 4KW pump station 1 unit (for cutting) 3KW pump station 1 unit (for pressing) |

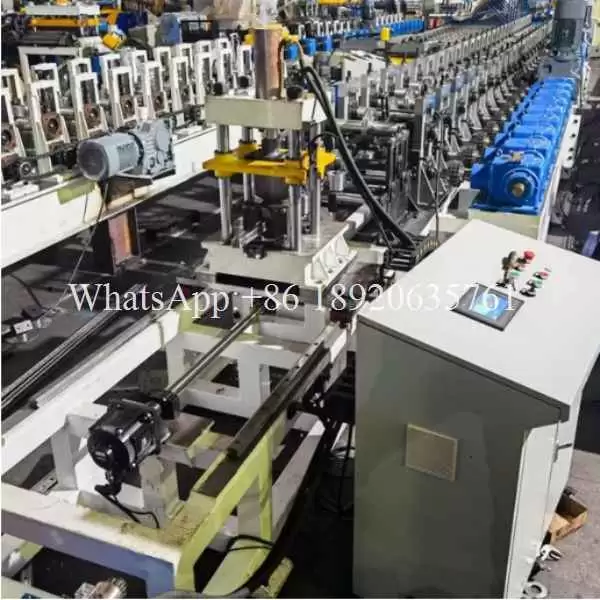

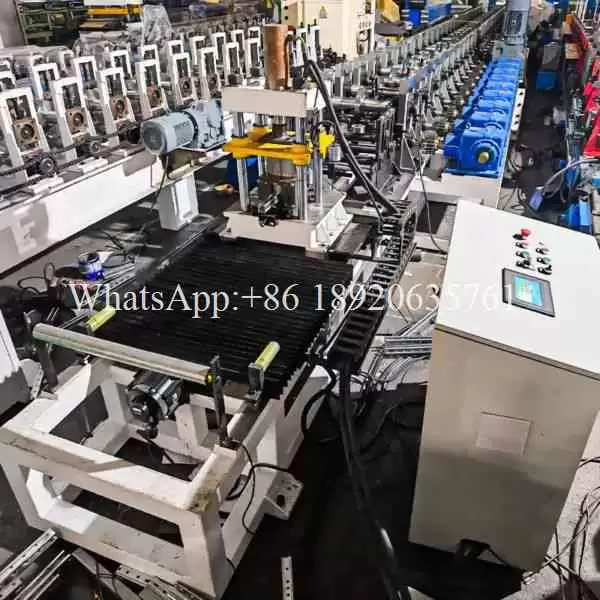

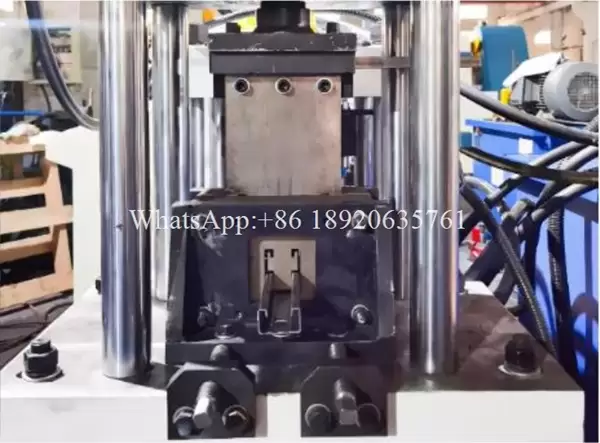

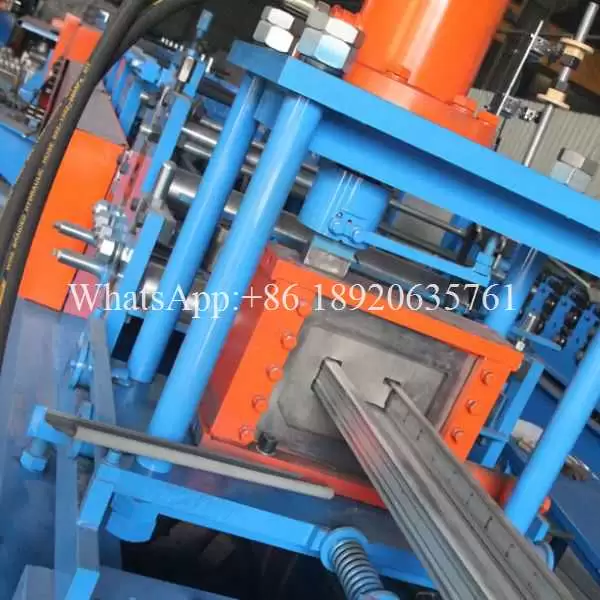

| Cutting type | Tracking Cut |
| Produce speed | 15-20 m/min |
| Shaft material | 45# steel, quenched and tempered |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 2.0-3.0mm |
| Rows | The number of rows is usually 24-26, and the 3mm thick 41*72 model may have 28 rows. |
Customization is the essence of modern solar channel roll formers, reflecting the diverse needs of the global solar industry:
Profile Versatility: Roll formers can be designed for a wide range of channel sizes (depth, flange width, lip design) and profiles (C-, U-, custom shapes) to meet specific PV racking system requirements.
Material Adaptability: The machines can handle a wide range of steel grades, coatings (galvanized, galvanized, painted) and thicknesses, typically from 2.0 mm to 3.0 mm and even larger.

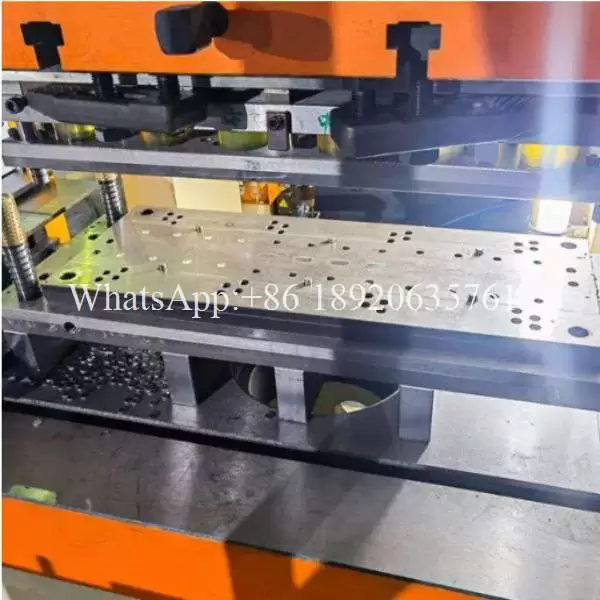

Punching Flexibility: The punching station is highly customizable to accommodate different hole types, sizes, shapes (round, oval, slotted) and longitudinal spacing to accommodate a variety of bolt sizes and mounting methods.
Speed and Length Control: Production speed (typically 15-20 meters per minute) and cutting length are fully programmable to optimize specific project output.
Automation Integration: Optional automatic palletizing system reduces manual operations and improves work efficiency.
In essence, the solar channel roll forming machine is the production powerhouse behind the solar revolution. By seamlessly integrating punching, precision forming, and hydraulic cutting, it delivers the consistent, high-quality channels needed for robust and reliable PV mounting structures. Its inherent flexibility allows manufacturers to adapt swiftly to evolving market designs, while comprehensive after-sales support ensures sustained productivity. For businesses aiming to be key suppliers in the renewable energy sector, a state-of-the-art solar channel roll forming machine is not just equipment; it's a strategic investment in efficiency, quality, and the future of solar power generation. This solar channel roll forming machine technology is fundamental to building the frameworks that capture the sun's energy.
Application Scenario
Our photos with our customers
Why Choose Us?
About us
We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a advanced solar channel roll forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the advanced solar channel roll forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
