Trapezoidal Metal Roof Roll Forming Line
Engineered for Excellence: The Advanced Trapezoidal Metal Roof Roll Forming Line
In the competitive landscape of modern construction, efficiency, durability, and precision are non-negotiable. Trapezoidal metal roofing panels stand as a testament to this demand, offering unparalleled structural strength, longevity, and aesthetic versatility for industrial warehouses, commercial complexes, and agricultural buildings worldwide.
To empower manufacturers in meeting this global need, we introduce our state-of-the-art Trapezoidal Metal Roof Roll Forming Line. This fully integrated, automated production system is engineered to transform raw steel coil into high-precision roofing profiles with exceptional consistency and speed. More than just machinery, the Trapezoidal Metal Roof Roll Forming Line represents a complete manufacturing solution, meticulously designed for reliability and proudly bearing CE certification, guaranteeing compliance with the most stringent European safety, health, and environmental protection directives.
Roll Forming Process Workflow Diagram
More parameters
| Product Name | Trapezoidal Metal Roof Roll Forming Line |
| Roll forming part main motor power | 11 kw |
| Decoiler |
10-ton hydraulic decoiler with car 2.7 meters*1.6 meters*1.9 meters 5.5+4 kw |
| Roll forming part hydraulic station | 5.5 kw |
| Produce speed | 40 m/min |
| Shaft material | 45# Steel |
| Frame | 350H mm |
| Touch screen | PLC or customized according to customer requirements |
| Rolling materials | 45# steel, 0.05mm chrome plated, hardness HRC 58-62 |
| Cutting blade material | Cr12MoV, heat treatment HRC58-62℃ |
| Screen Language | Chinese, English, Spanish |
| Roller diameter | Φ70 mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 0.3-0.8 mm |
| Rows | 18 |
| Conveyor belt |
3 m Power: 2.2 kw Width 1250mm, Length 3000mm, Height: 950mm |
| Stacker |
13-meter single-layer fully automatic stacker Power: 2.2 kw Material receiving speed: 0-25 meters |
The Production Journey: Precision from Coil to Finished Product

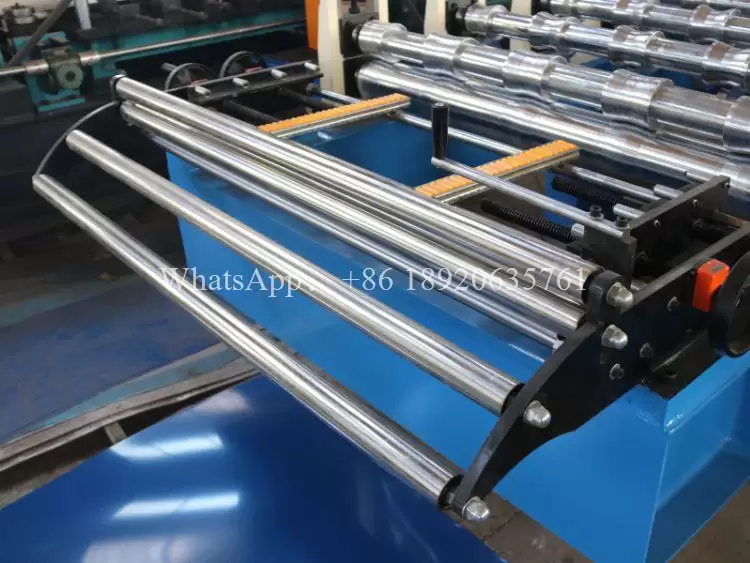

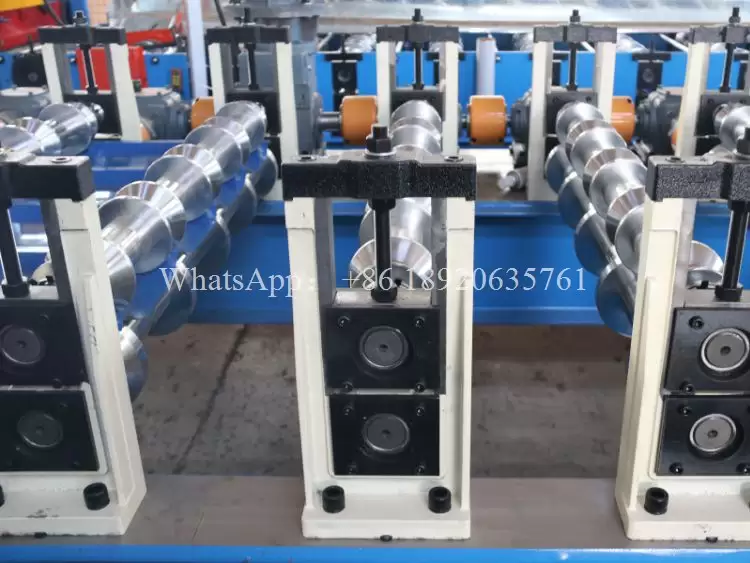

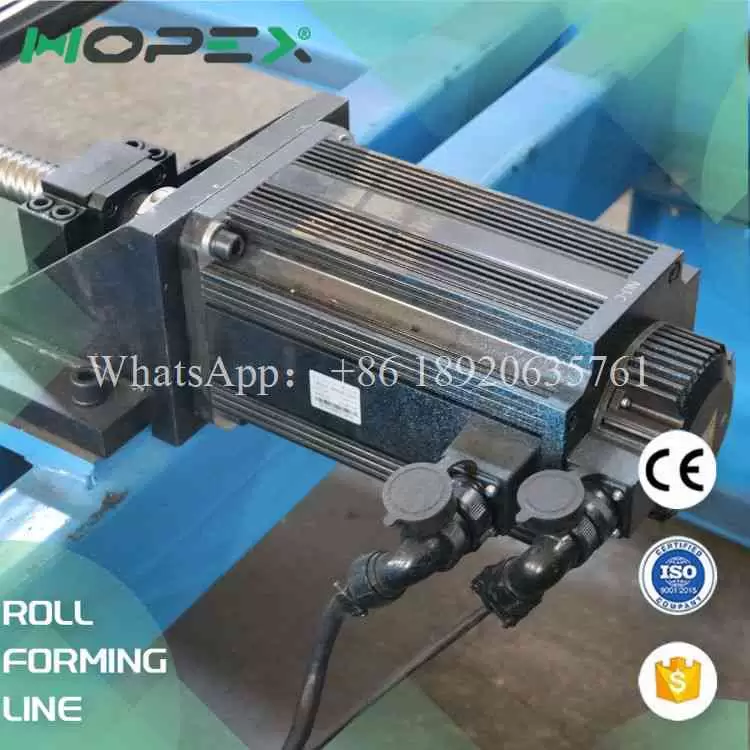

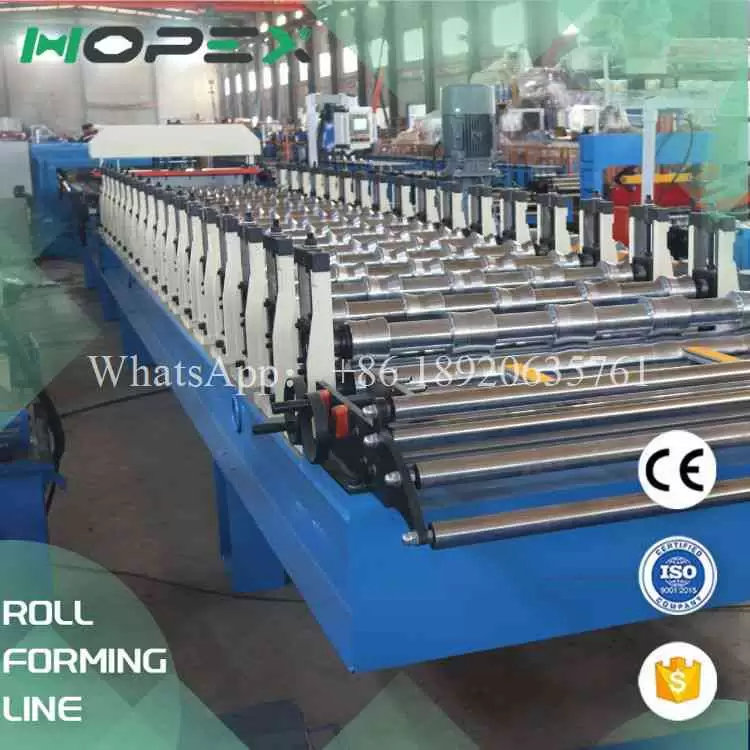

The operational superiority of our Trapezoidal Metal Roof Roll Forming Line is demonstrated through its seamless, automated workflow. The process is initiated by a precision decoiling system that feeds steel coils into the line with controlled tension, ensuring a smooth and stable material supply—the critical first step for consistent quality. The steel strip then progresses through a series of computer-calibrated roll forming stations. Here, it is gradually and accurately shaped into the defined trapezoidal profile, with each roll station meticulously contributing to the final geometry to ensure uniform rib height, panel width, and exceptional structural integrity. Following the precise forming stage, a high-speed, servo-driven cutting system cleanly shears the continuous panel to exact, pre-programmed lengths. An integrated conveying system then transports the finished panels to an automated stacking unit, which neatly organizes them for packaging or direct shipment. This end-to-end automation within the Trapezoidal Metal Roof Roll Forming Line maximizes throughput, minimizes manual intervention and material waste, and guarantees that every panel meets rigorous dimensional tolerances and finish quality.
A cornerstone of our offering is the inherent flexibility and certified safety of the Trapezoidal Metal Roof Roll Forming Line. We understand that production requirements vary; therefore, this line is highly customizable. Key parameters, including the maximum incoming material width, the range of acceptable metal thicknesses, and the operational voltage, can be tailored to suit your specific factory setup and market demands. This adaptability ensures the Trapezoidal Metal Roof Roll Forming Line integrates perfectly into your production ecosystem.
Furthermore, the CE certification of the Trapezoidal Metal Roof Roll Forming Line is a definitive mark of quality and safety. It provides undeniable assurance of the machine's design integrity, operational safety, and adherence to international standards, facilitating market access and building trust with your clients. To ensure your investment yields maximum returns, we provide comprehensive remote support. Our engineers offer real-time video guidance for installation, operational training, troubleshooting, and preventative maintenance, ensuring your Trapezoidal Metal Roof Roll Forming Line maintains optimal uptime and longevity.
Investing in our Trapezoidal Metal Roof Roll Forming Line is a strategic decision to secure a leading position in the metal building components sector. This robust, reliable, and certified production line empowers you to consistently supply the market with high-strength, durable roofing panels that are essential for modern infrastructure.
By deploying this sophisticated Trapezoidal Metal Roof Roll Forming Line, you are not merely acquiring equipment—you are activating a future-ready, globally compliant manufacturing powerhouse engineered for sustained productivity, superior quality, and long-term business growth.
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Trapezoidal Metal Roof Roll Forming Line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Full-automatic Trapezoidal Metal Roof Roll Forming Line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
