The Highway Guardrail Forming Machine: Engineering Safety Through Precision Manufacturing

Guardrails are the silent sentinels of our roadways, absorbing impact energy and redirecting errant vehicles away from catastrophic collisions. Producing these critical safety components demands absolute precision, consistent quality, and high-volume efficiency. At the heart of this essential manufacturing process lies the Highway Guardrail Forming Machine – a sophisticated, integrated production line specifically engineered to transform raw steel coils into the robust, standardized profiles that protect lives on highways globally. This comprehensive system seamlessly orchestrates multiple critical operations – decoiling, leveling, punching, roll forming, cutting, and stacking – to deliver guardrail beams meeting the strictest international safety standards.

Workflow Diagram

More parameters

The highway guardrail forming machine is not a single machine but a meticulously synchronized production line designed for the singular purpose of manufacturing highway guardrail profiles, primarily the ubiquitous W-beam (or Thrie-beam) and associated posts or blocks. Its design prioritizes dimensional accuracy, material integrity, and repeatability, ensuring every meter of guardrail produced performs as expected under impact. Let's break down the core processes executed within this vital production system:

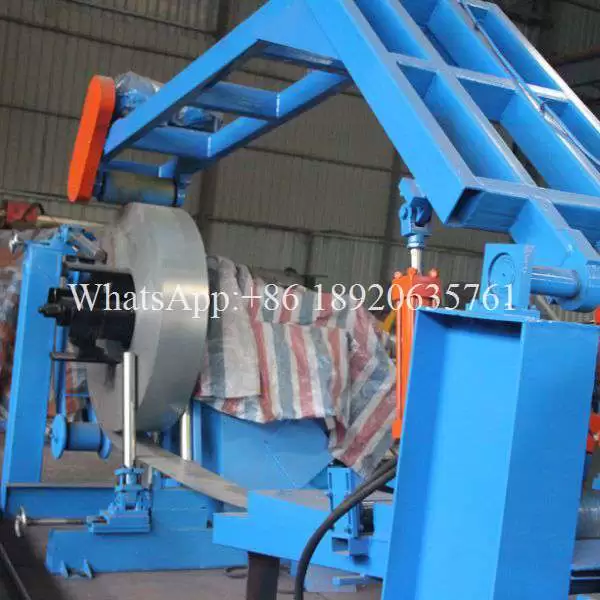

Decoiling (Uncoiling): The process commences with loading a heavy coil of high-tensile steel (typically galvanized or weathering steel) onto a robust decoiler. This machine, often featuring hydraulic expansion mandrels, motorized coil cars, and sophisticated tension control systems, ensures smooth, consistent unwinding of the steel strip. Maintaining controlled tension is paramount to prevent material distortion before it enters the critical forming stages of the highway guardrail forming machine.

Leveling (Flattening): Steel coils inherently possess residual stresses and curvature (coil set, crossbow). Feeding this uneven material directly into forming rolls would result in wavy, distorted, or buckled guardrails – unacceptable for a safety-critical product. The precision leveling station, a cornerstone of the highway guardrail forming machine, employs a series of intermeshing rollers. These rollers strategically flex the steel strip beyond its yield point in alternating directions, effectively eliminating internal stresses and producing a perfectly flat, uniform strip. This flawless flatness is non-negotiable for achieving the precise geometry required in the subsequent punching and forming stages.

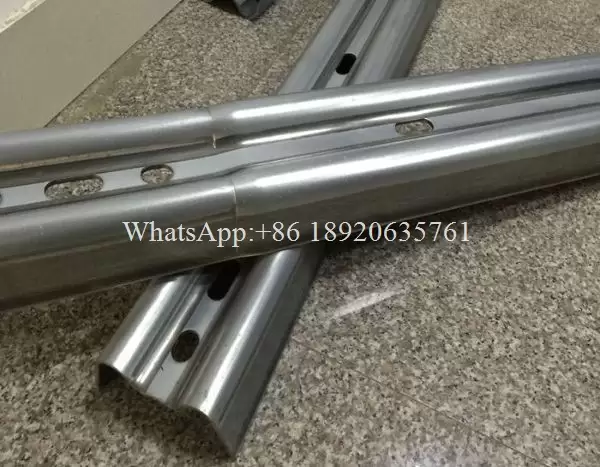

Punching (Critical Feature Creation): This stage sets the highway guardrail forming machine apart from simpler roll forming lines. Before the main profile is formed, precisely located holes must be punched into the flat strip. These holes are vital for:

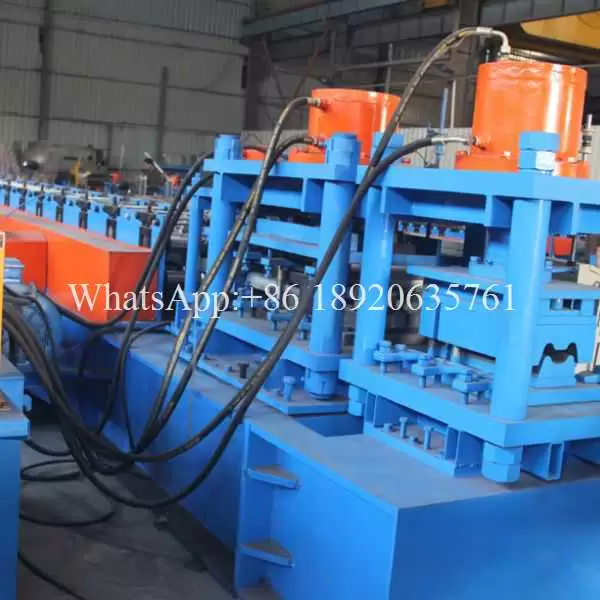

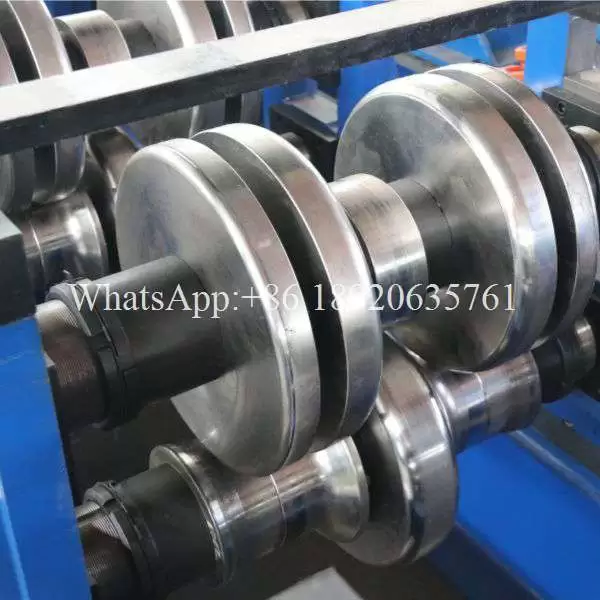

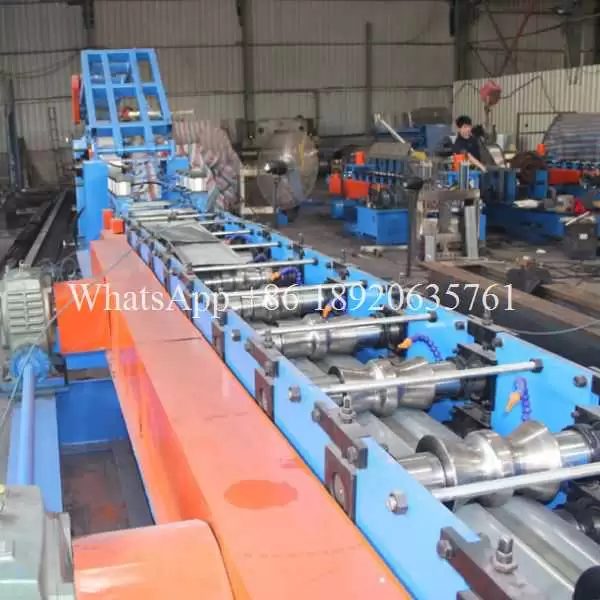

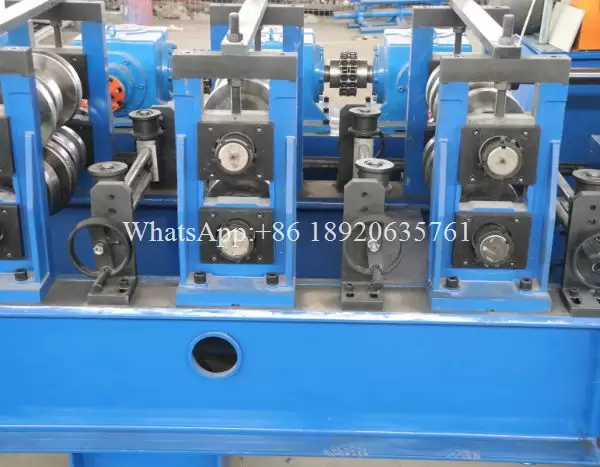

Roll Forming (Shaping the Profile): This is the core transformation stage within the highway guardrail forming machine. The flat, punched strip enters a series of meticulously engineered roll forming stands. Each stand contains hardened steel rolls with precisely machined contours. As the strip progresses sequentially through these stands, the rolls progressively bend and shape the metal incrementally into the complex cross-section of the guardrail profile (e.g., the distinctive corrugations of the W-beam). The number of stands (often 15-18) and the precision of the roll design are paramount. They ensure: Accurate Profile Geometry: Maintaining exact rib heights, widths, and angles. Consistent Cross-Section: Uniformity along the entire length. Minimal Material Strain: Preserving the steel's strength and coating integrity. Surface Protection: Avoiding scratches or damage to the galvanized or painted finish. The precision engineered within this section defines the quality output of the highway guardrail forming machine.

Hydraulic Shearing (Cutting to Length): Once fully formed, the continuous guardrail beam reaches the cutting station. A high-capacity hydraulic shear is essential due to the thickness and strength of the steel used. Precise encoders measure the moving beam's length. Upon reaching the pre-programmed length (standard lengths vary by region/system, e.g., 3.81m, 4.27m, 7.62m), the powerful hydraulic shear descends rapidly, delivering a clean, square, and burr-free cut across the entire profile. This accuracy ensures beams fit perfectly during installation on the highway.

Run-out and Stacking (Palletizing): The cut guardrail section is conveyed away from the shear via a robust run-out table (powered rollers or belts). It then moves to the stacking area. An automatic stacking system (pneumatic, hydraulic, or servo-driven) carefully collects the beams, aligning them neatly into uniform bundles. These bundles are then lowered onto pallets or skids, ready for strapping, banding, and shipment. Automated stacking protects the beam's finish, ensures operator safety, and maintains the high throughput essential for a modern highway guardrail forming machine.
