The Integrated Capping Roll Forming Machine Line: Engineering Peak Efficiency in Profile Production

In the demanding realm of architectural metal fabrication and roofing supply, the ability to produce essential capping profiles – the critical finishing elements for ridges, parapets, fascias, and other edges – efficiently, consistently, and cost-effectively is paramount. This is where the transformative power of an integrated capping roll forming machine line comes into sharp focus. Far more than just a collection of machines, a modern capping roll forming machine line is a precisely synchronized production ecosystem engineered to convert raw metal coil into perfectly formed, cut-to-length, and neatly stacked capping sections with remarkable speed and minimal waste. Understanding the components and operation of a sophisticated capping roll forming machine line reveals the blueprint for achieving peak production efficiency.

Roll Forming Process Workflow Diagram

More parameters

Workflow:

The journey of transformation begins at the Uncoiling & Feeding Station. A robust, heavy-duty decoiler forms the foundation of the capping roll forming machine line, securely holding large coils (often weighing several tons) of material – typically galvanized steel, aluminum, or pre-painted metals. Precision feeding mechanisms, integral to the capping roll forming machine line, incorporate servo drives or hydraulic systems coupled with active tension control. This ensures a smooth, consistent, and absolutely stable feed of the metal strip into the subsequent stages, preventing issues like slippage, buckling, or surface marring that could jeopardize the entire capping roll forming machine line's output quality.

Immediately following feeding, the metal strip enters the Critical Leveling Stage. A multi-roll precision leveler is an indispensable component within the capping roll forming machine line. Its purpose is to eliminate any residual stresses, coil set (longitudinal curvature), crossbow, or minor twists inherent in the coiled material. Through a carefully calibrated series of adjustable rolls applying controlled pressure, the metal undergoes cold working to achieve near-perfect flatness and uniformity. The performance of this stage is non-negotiable for the success of the capping roll forming machine line; only perfectly flat material ensures accurate forming downstream, preventing profile distortion, camber, and costly rejects.

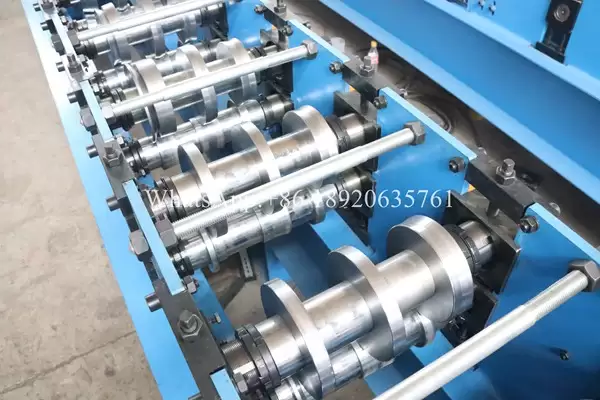

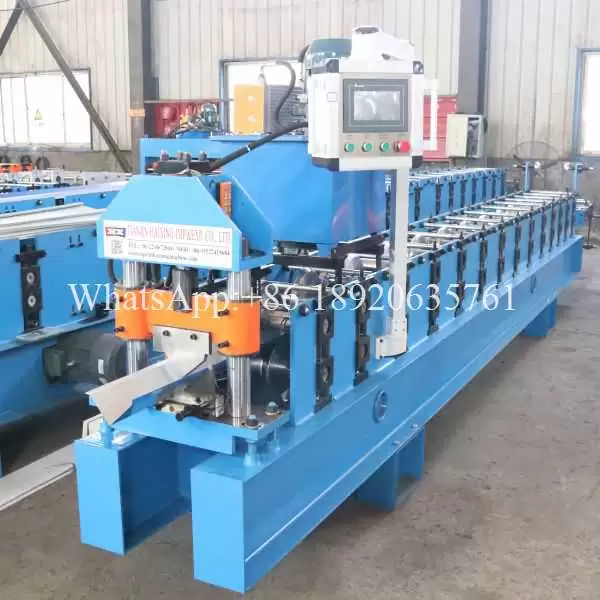

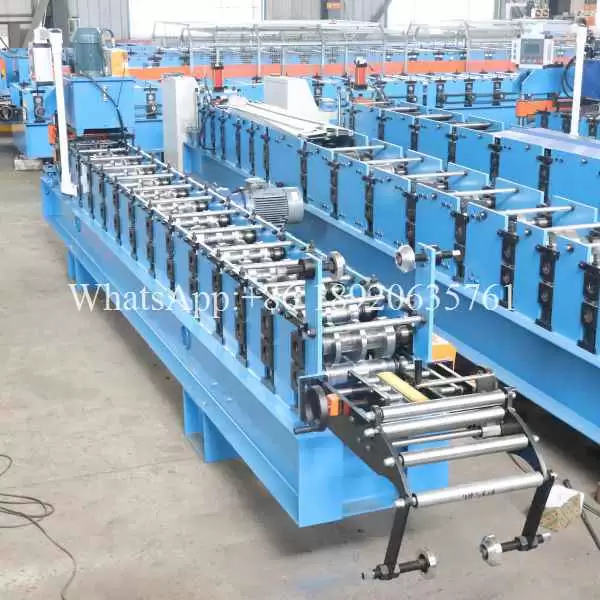

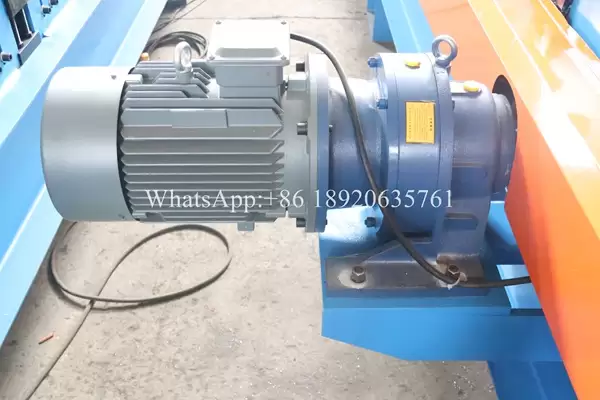

The heart of the capping roll forming machine line is undeniably the Roll Forming Mill. Here, the flat strip undergoes its metamorphosis into the specific capping profile. Guided by precision entry guides, the strip progresses sequentially through a series of custom-designed roll stations. Each station, featuring hardened, ground steel rolls mounted on robust shafts within a rigid, vibration-dampened frame, imparts a precise, incremental bend to the metal. The number of stands required in this section of the capping roll forming machine line depends entirely on the profile's complexity, ranging from simple bends to intricate geometries with multiple returns or embossed features. Advanced capping roll forming machine line configurations prioritize flexibility, incorporating quick-change roll systems that allow rapid switching between different capping profiles on the same capping roll forming machine line, minimizing downtime. Sophisticated guiding systems continuously ensure perfect strip alignment throughout the forming process within the capping roll forming machine line.

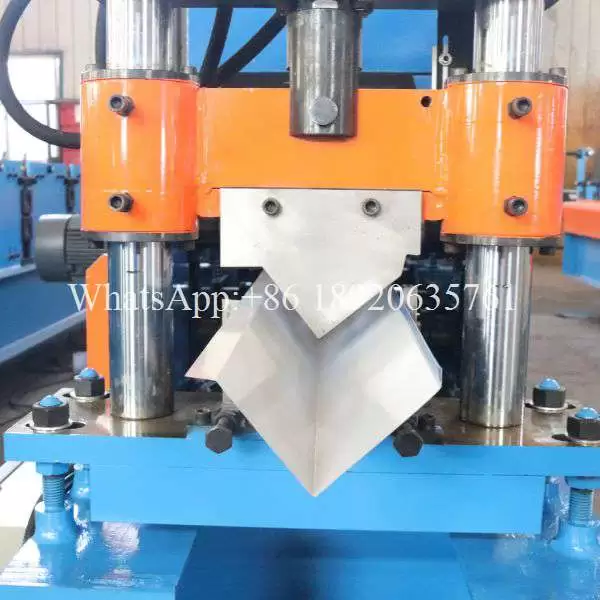

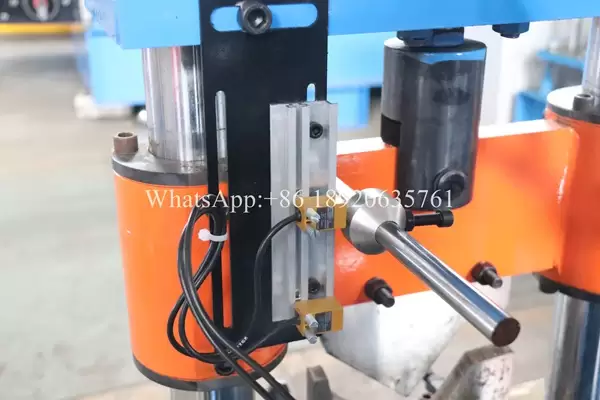

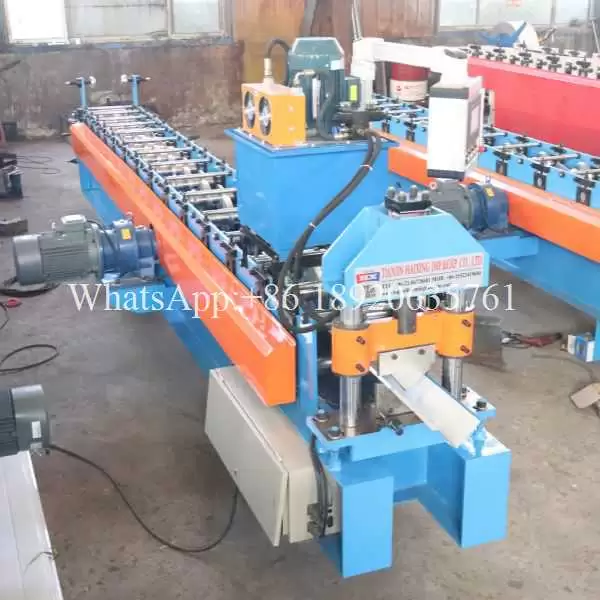

Once the continuous strip has been fully shaped into the final capping profile, it arrives at the High-Speed Cutting Station, a pinnacle of synchronization within the capping roll forming machine line. Modern lines predominantly utilize hydraulic cutters. This advanced technology allows the cutter head to move precisely in sync with the continuously advancing profile during the cutting operation. Driven by the central PLC (Programmable Logic Controller) – the intelligent brain of the capping roll forming machine line – which uses real-time encoder feedback on line speed, the cutter triggers at the exact millisecond to achieve clean, square, burr-free cuts to pre-programmed lengths. The accuracy and efficiency of this cutting unit are fundamental to minimizing material waste and ensuring product consistency within the capping roll forming machine line.

The process culminates efficiently in the Automated Stacking & Discharge Stage. Cut capping pieces are conveyed seamlessly to an integrated stacking system, a vital final component of the capping roll forming machine line. Depending on profile geometry and bundle specifications, this system might employ belt conveyors, rotating stacking tables, or even robotic gripper arms. Governed by the capping roll forming machine line's PLC, the stacking sequence, piece count per layer, and bundle orientation are fully programmable. This optimizes the output for easy palletizing, strapping, and shipment directly from the capping roll forming machine line. Safety is paramount; light curtains, physical barriers, and emergency stops protect operators interacting with this area of the capping roll forming machine line.
