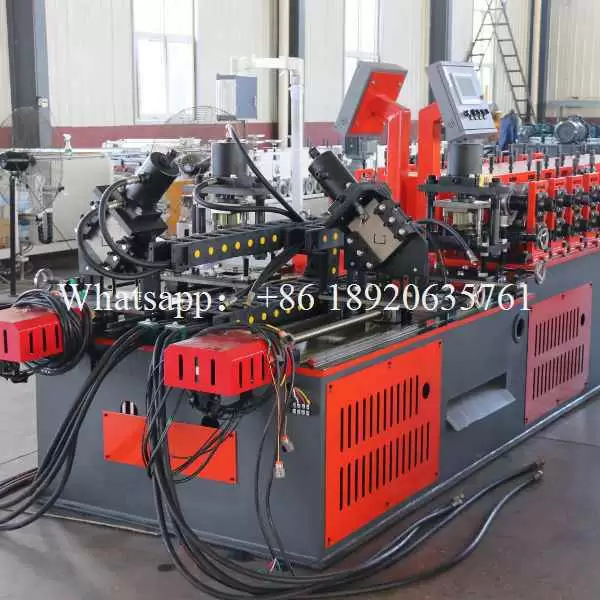

C U light keel roll forming machine line
C U Light Keel Roll Forming Machine Line: Advanced Dual-Track Solution for C and U Profiles

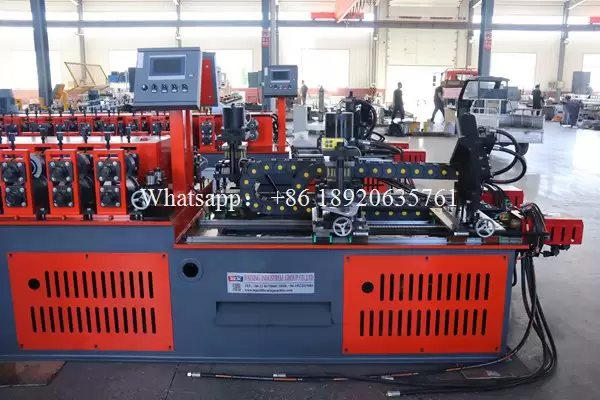

The C U light keel roll forming machine line is an advanced roll forming system designed to simultaneously produce both C-shaped angle steel and U-shaped profiles. This versatile machine incorporates a dual-track forming system that efficiently produces two different types of steel profiles without the need for constant mold changes. By reducing downtime and increasing production efficiency, the C U light keel roll forming machine line is a game-changer in the metal processing industry, offering manufacturers a high-speed, cost-effective solution for creating steel profiles used in various structural and construction applications.
Roll Forming Process Workflow Diagram
More parameters
| Product Name |
C U light keel roll forming machine line |
| Main motor power | 7.5 kw*2 |
| Opening and closing servo motor power | 4 kw |
| Produce speed |
20 m/min
|
| Shaft material | 45# Steel |
| Touch screen | Delta or customized according to customer requirements |
| Rolling materials | Cr12mov |
| Cutting blade material | Cr12 |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 0.4-1.2mm |
| Rows | 18 |
Dual-Track Technology for Maximum Flexibility
At the heart of the C U light keel roll forming machine line is its innovative dual-track design. This design allows for the simultaneous production of C-type angle steel and U-type profiles, maximizing versatility and productivity. Each track is equipped with specialized rollers for forming the respective profiles. The two tracks operate independently, enabling seamless transitions between the two profile types without the need for complex and time-consuming die changes.
By integrating both C and U profile production into one machine, the C U light keel roll forming machine line significantly reduces the production time typically required for switching molds and settings between different types of steel profiles. This leads to higher output, less maintenance, and a streamlined manufacturing process that improves overall operational efficiency.
Workflow Overview of the C U Light Keel Roll Forming Machine Line
The production process on the C U light keel roll forming machine line follows a series of key steps, each designed to ensure consistent product quality and high production rates:
Uncoiling: The process starts with a heavy-duty decoiler that unwinds the raw steel coil, preparing it for the next stages of production.
Leveling: The steel coil is then passed through a leveling machine that removes any distortion or curling from the coil, ensuring a smooth and even surface.

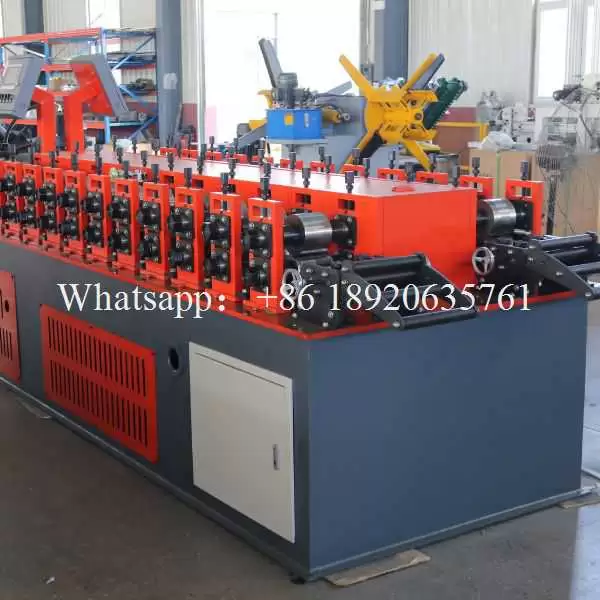

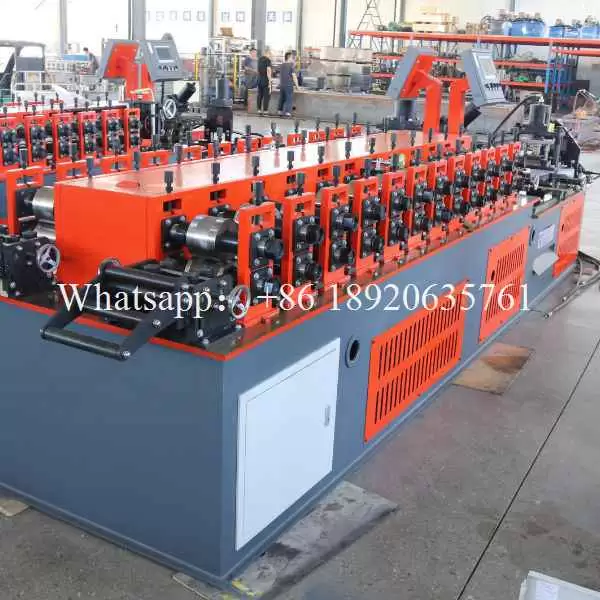

Roll Forming: This is the most critical stage in the process. The C U light keel roll forming machine line features two parallel forming tracks: one for C-type profiles and the other for U-type profiles. As the steel moves through the rollers, it is shaped into the desired profile.

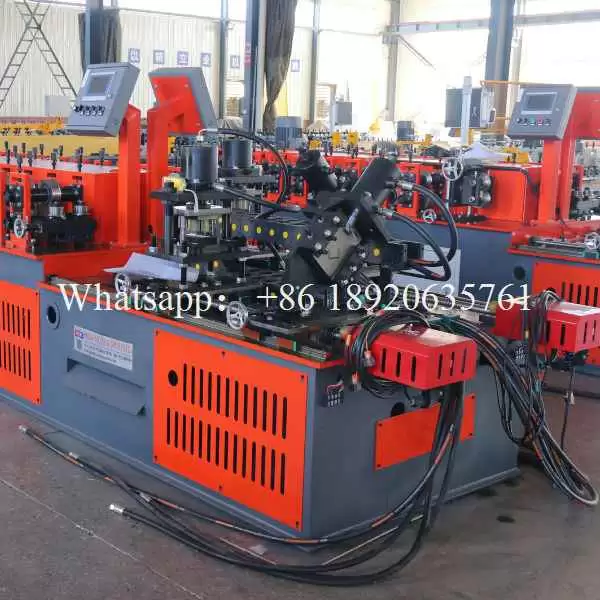

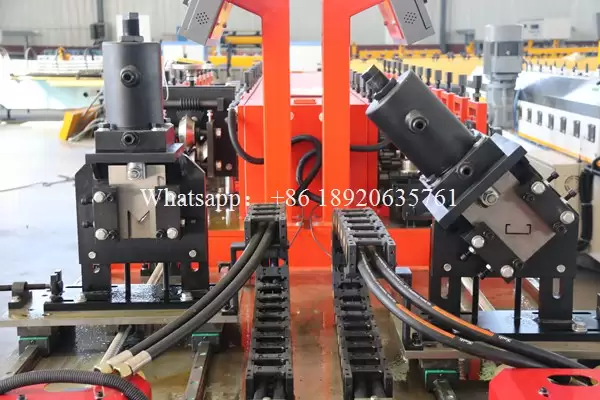

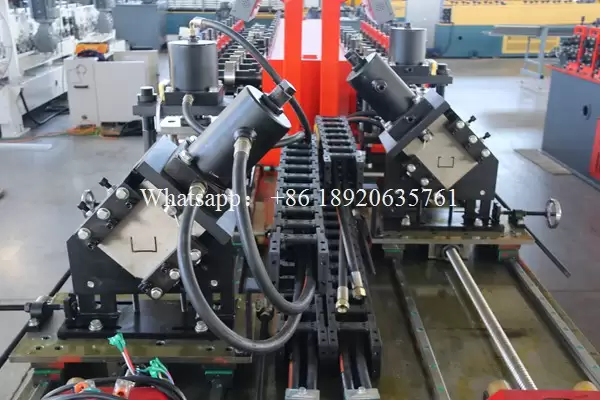

Shearing: Once the profiles have been formed, the next step is cutting. The C U light keel roll forming machine line is equipped with dual cutting heads that ensure precise and clean cuts. These cutting heads can switch between C and U profiles automatically, reducing downtime between different product runs.

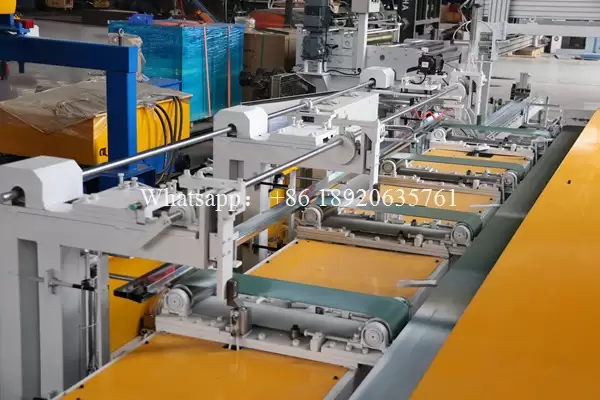

Stacking: After shearing, the finished profiles are stacked neatly, ready for packaging or transportation. The automatic stacking system reduces labor costs and ensures that the final product is organized and easy to handle.
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the C U light keel roll forming machine line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the C U light keel roll forming machine line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
