U China light keel roll forming machine
Precision Engineered: The China Light Keel Roll Forming Machine Line

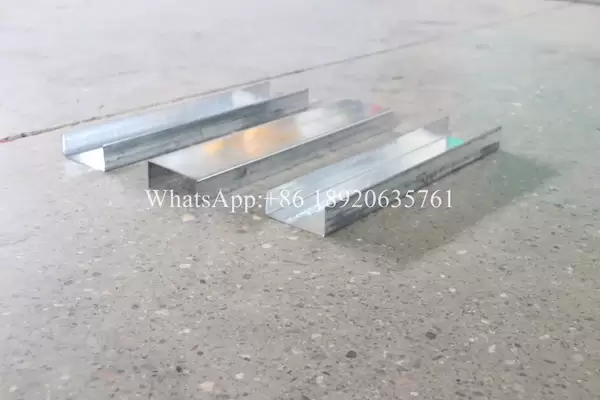

The China light keel roll forming machine line represents the pinnacle of automated manufacturing technology for producing high-precision U-shaped light steel keels. These essential components form the backbone of modern suspended ceilings and partition walls in commercial, industrial, and residential buildings worldwide. Engineered for efficiency, reliability, and exceptional output quality, this integrated production line is transforming how construction materials are fabricated.
Roll Forming Process Workflow Diagram
More parameters
| Product Name |
China light keel roll forming machine |
| Main motor power | 7.5 kw |
| Hydraulic station | 5.5 kw |
| Produce speed | 40 m/min |
| Shaft material | 45# Steel |

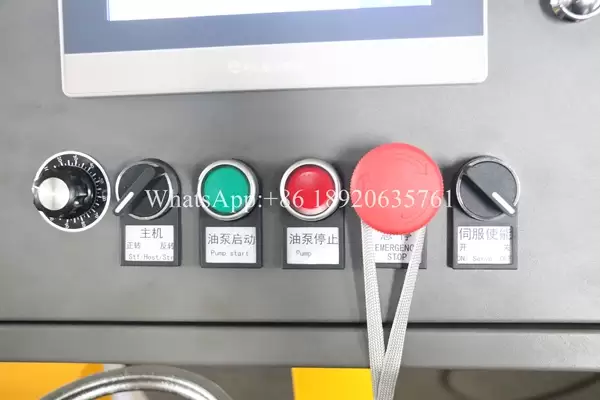

| Touch screen | PLC or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-62℃ |
| Cutting blade material | Cr12 |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 0.4-1.2mm |
| Rows | 12 |
Detailed Machine Operation Flow:
Automatic Decoiling & Feeding: The process initiates with a hydraulic or motorized decoiler, securely holding and feeding large steel coils into the line. An optional coil car facilitates efficient loading. An entry guide ensures precise strip alignment.
Precision Leveling: The material progresses through a multi-roller leveling unit. This critical stage meticulously removes any internal stresses, coil set, or surface irregularities from the strip. Perfect flatness is essential for achieving the dimensional accuracy required in the final U-keel profile. The number and configuration of leveling rolls are optimized for the target material thickness.

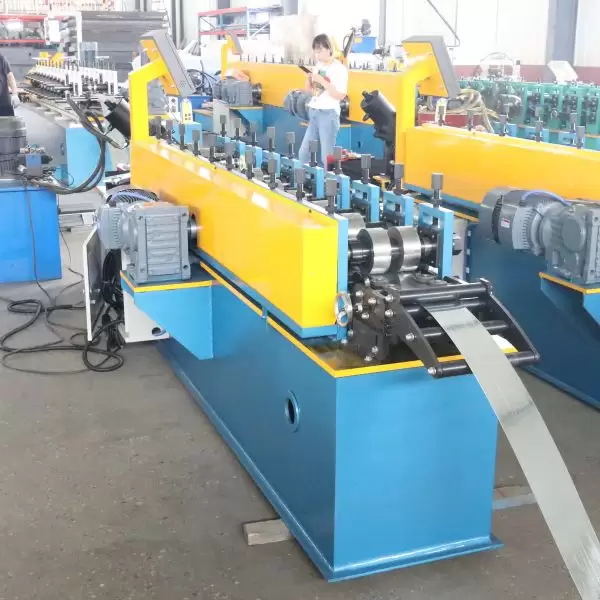

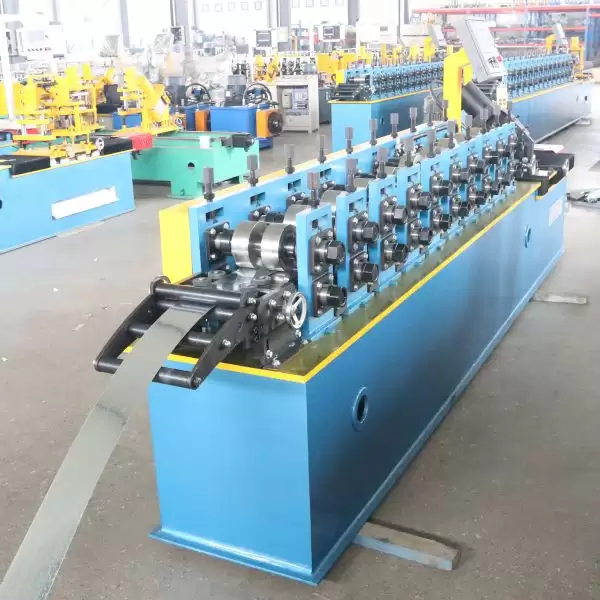

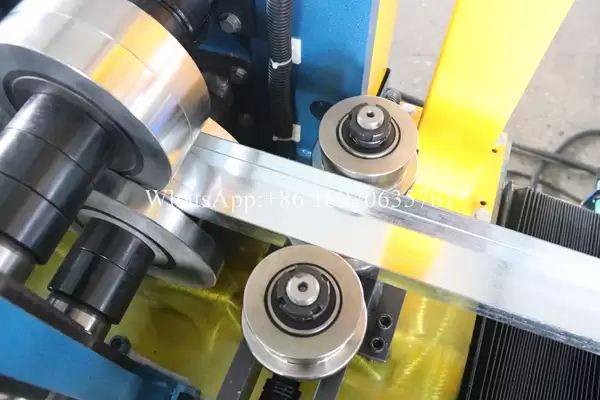

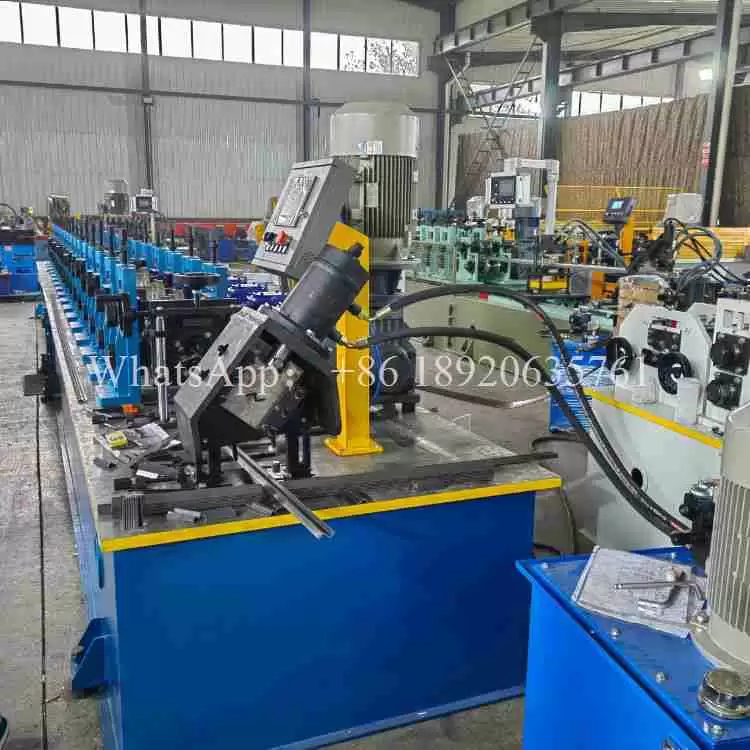

Progressive Roll Forming: The heart of the China light keel roll forming machine line is its meticulously engineered roll forming station. Comprising a sequence of precisely machined forming stands, the flat strip is gradually and smoothly transformed into the exact U-profile. Each set of hardened steel rolls imparts a specific bend angle, ensuring the final cross-section meets stringent tolerances without material deformation or surface marring. The forming process is incredibly smooth and efficient.

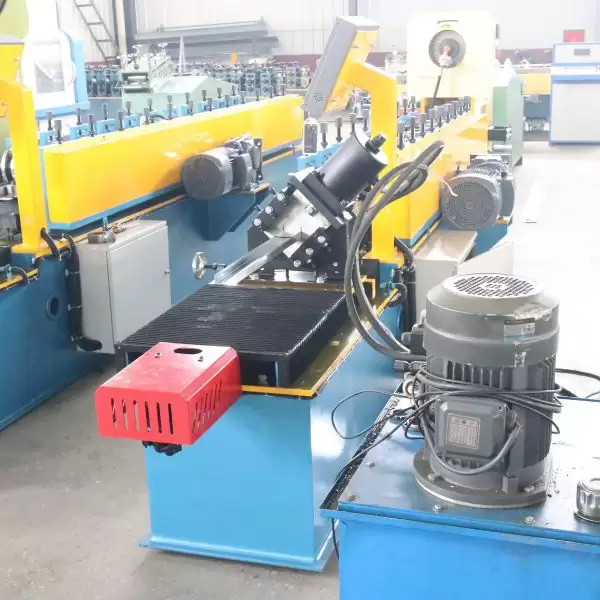

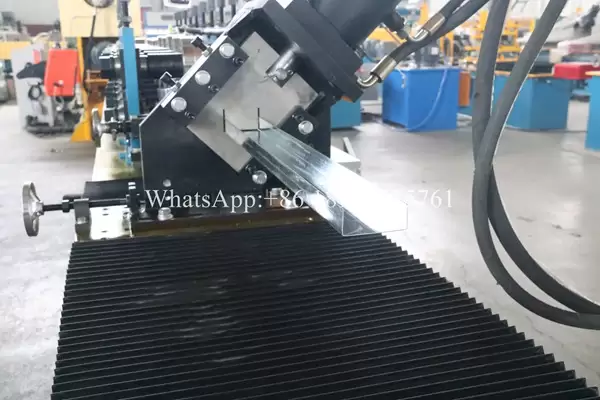

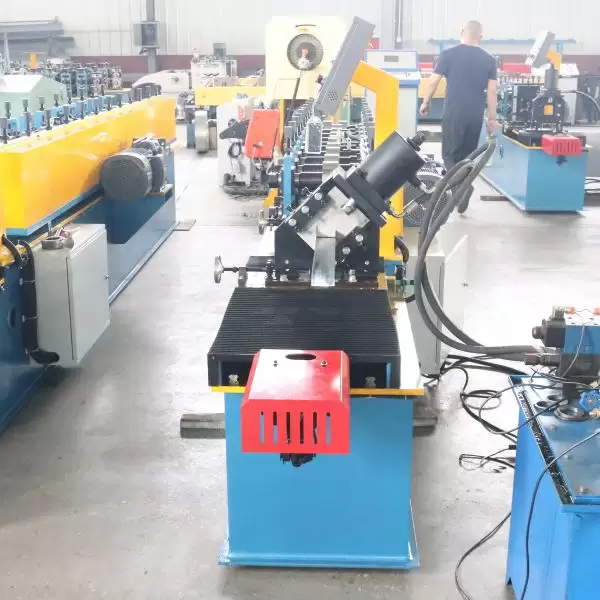

High-Speed Precision Cutting: Following forming, the continuous U-profile enters the cutting section. A servo-driven flying cut-off system is employed. This sophisticated mechanism synchronizes perfectly with the moving profile. Hydraulic or pneumatic shears deliver a clean, burr-free cut at pre-programmed lengths (commonly 3m, 3.6m, or customizable) without stopping the line flow, enabling maximum productivity. Encoder feedback guarantees cut length accuracy within fractions of a millimeter.
Automated Stacking & Output: The finished U-keels are conveyed to the automated stacking unit. This system employs belts, arms, or counters to neatly organize the cut pieces into predetermined stack patterns (e.g., bundles of 50 or 100). The stacks are then conveyed out of the line, ready for strapping, packaging, and shipment. Optional automatic strapping or binding can be integrated.
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the U China light keel roll forming machine line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the U China light keel roll forming machine line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
