Premium rack system bracing roll forming machine
Optimizing Warehouse Infrastructure: The Rack System Bracing Roll Forming Machine
In the demanding world of material handling and warehouse storage, the structural integrity of racking systems is paramount. Central to achieving this strength are the critical diagonal bracing components. Producing these efficiently and precisely requires specialized equipment: the rack system bracing roll forming machine. This integrated production line is engineered to transform raw coil steel into the high-strength braces that form the backbone of safe and reliable rack systems.
Workflow Diagram
More parameters
| Product Name | Premium rack system bracing roll forming machine |
| Main motor power | 7.5 kw（Polaroid） |
| Hydraulic station | Vane pump, 4.0 kw |
| Produce speed | 18-20 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |

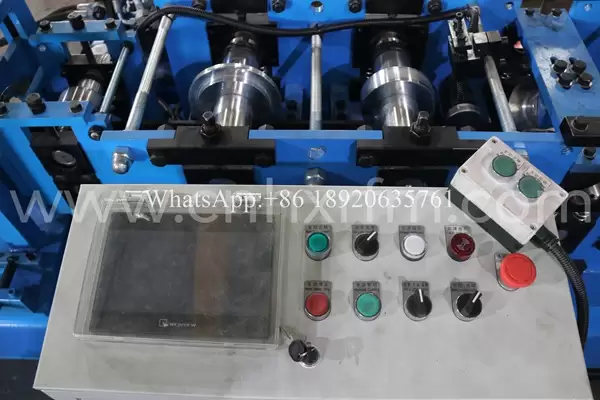

| Touch screen | Weilun or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-62℃ |

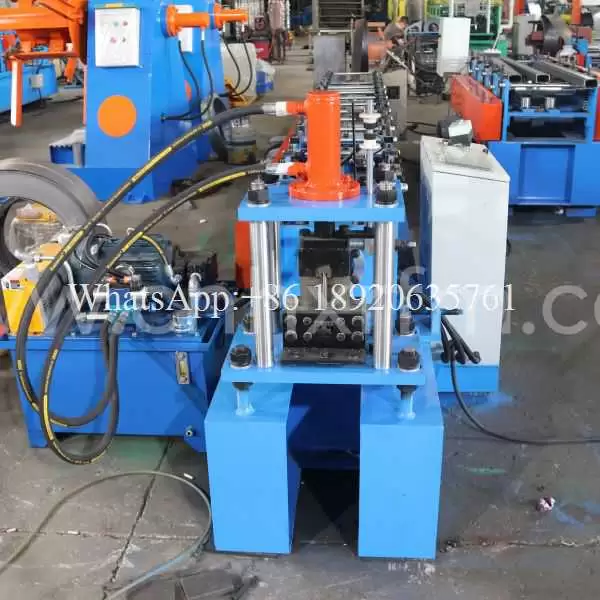

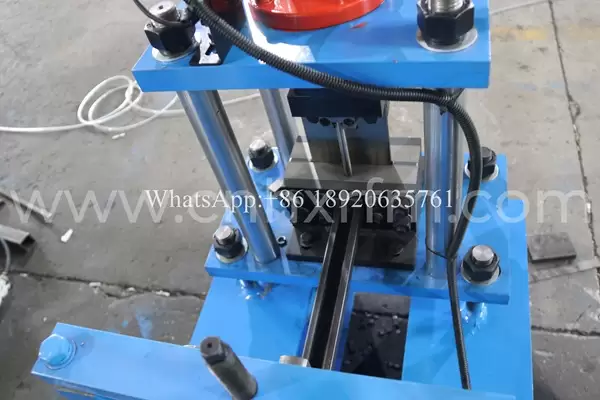

| Cutting blade material | Hydraulic back shear (three blades) cutter material Cr12MoV |
| Roller diameter | Φ65 mm |
| Voltage | 380v 60hz 3p be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 14 |
| Board height | 600-900 mm |
A key advantage of the modern rack system bracing roll forming machine is its inherent customizability. Manufacturers understand that rack systems vary significantly. Therefore, these machines are designed with flexibility in mind:
Profile Changes: Roll tooling can be designed and swapped to produce a wide range of bracing profiles (angles, channels, tubes) and dimensions (width, height, flange lengths).
Material Flexibility: Machines can be configured to handle different material grades and thicknesses (commonly from 1.5mm to 3.0mm+).
Length & Hole Patterns: Cutting systems can be programmed for various brace lengths. Integration with punching units allows for in-line hole punching based on specific rack designs.
Speed & Automation: Production speeds and the level of automation (e.g., automatic stacking, coil welding) can be tailored to output requirements.
In conclusion, the rack system bracing roll forming machine is more than just production equipment; it's a precision-engineered solution for manufacturing the essential structural components of warehouse racking. By automating the process from coil to finished brace with high accuracy, speed, and flexibility, it ensures consistent quality and cost-effectiveness. The combination of robust engineering, customization potential, and strong after-sales support makes the modern rack system bracing roll forming machine an indispensable asset for rack component manufacturers aiming for efficiency, reliability, and market leadership. This rack system bracing roll forming machine technology truly forms the foundation of safe warehouse infrastructure.
Application Scenario
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a premium rack system bracing roll forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the premium rack system bracing roll forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
