The Unsung Strength: Precision-Forming Warehouse Stability with Our Rack System Bracing Roll Forming Machine

For 28 years, we've engineered the machinery that builds the backbone of global warehousing. While uprights command attention, the true stability of any racking system lies in its bracing. Introducing our specialized solution: the high-performance Rack System Bracing Roll Forming Machine. Engineered specifically for the efficient, precise, and continuous production of galvanized steel braces – the critical diagonal components that transform upright frames into rigid, load-bearing structures for pallet racking and shelving systems.

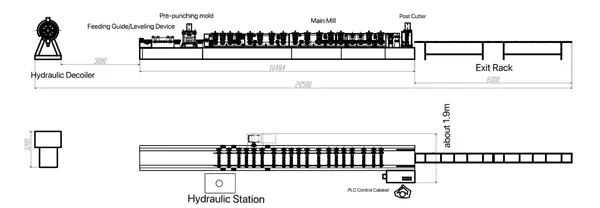

Workflow Diagram

More parameters

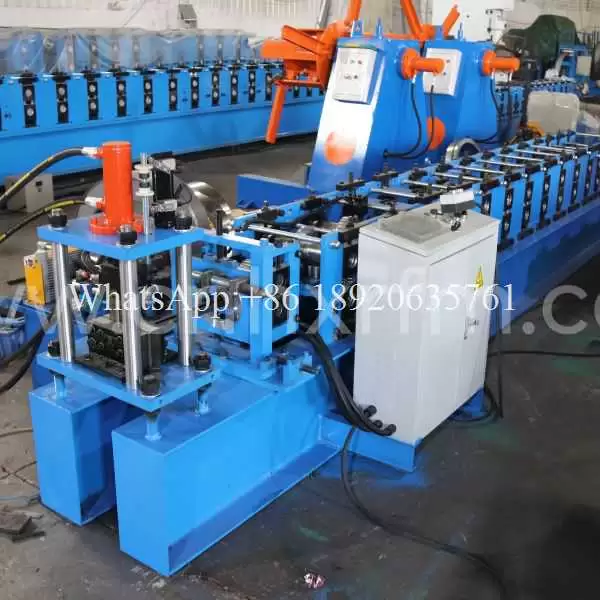

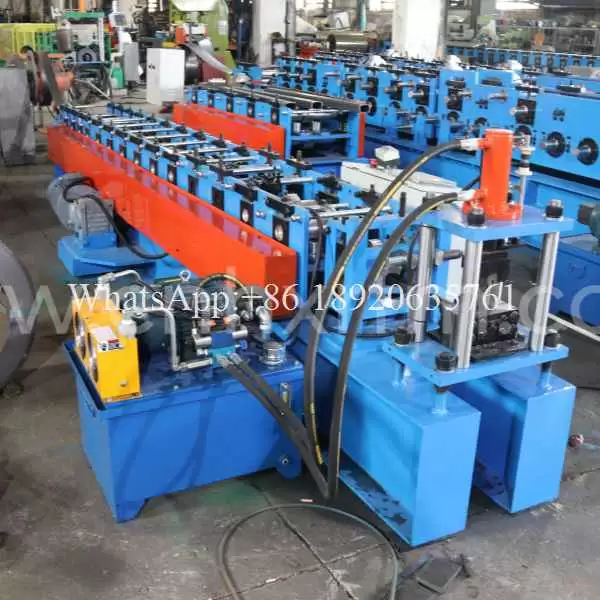

The Flow of Strength: How the Rack System Bracing Roll Forming Machine Works. Witness the seamless operation that produces the diagonal backbone of storage systems:

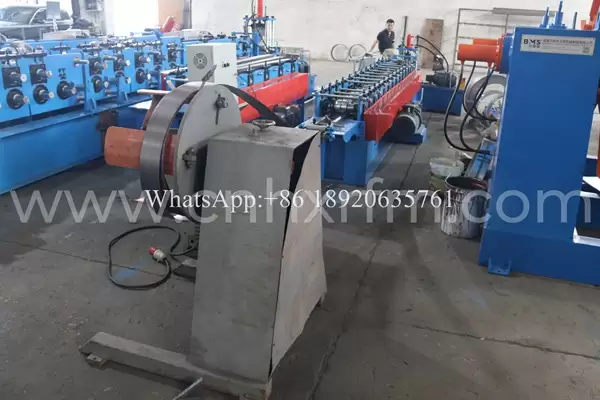

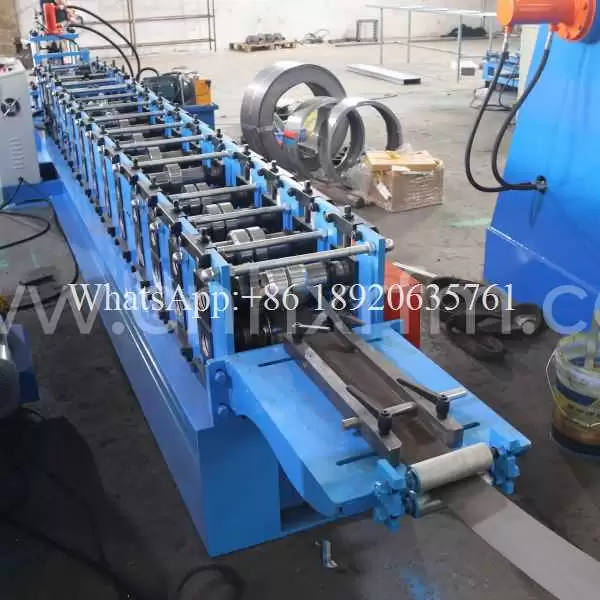

Material Feed: A large coil of galvanized steel strip is loaded onto the decoiler. The leading edge is threaded through the leveling unit.

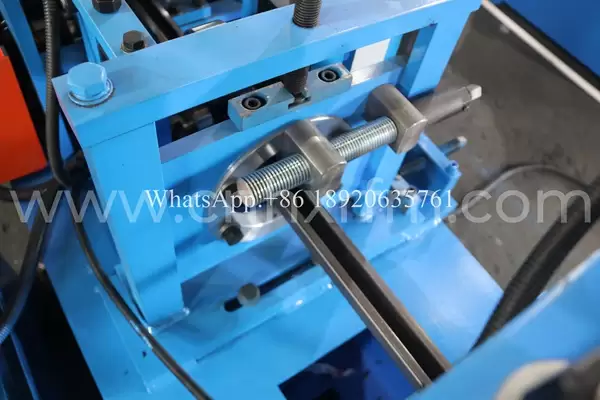

Critical Leveling: The leveling unit meticulously removes any curvature or residual stresses from the coiled strip, guaranteeing a perfectly flat starting point essential for maintaining precise angles.

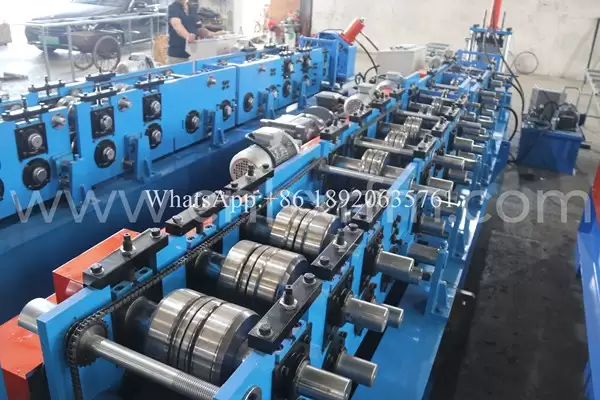

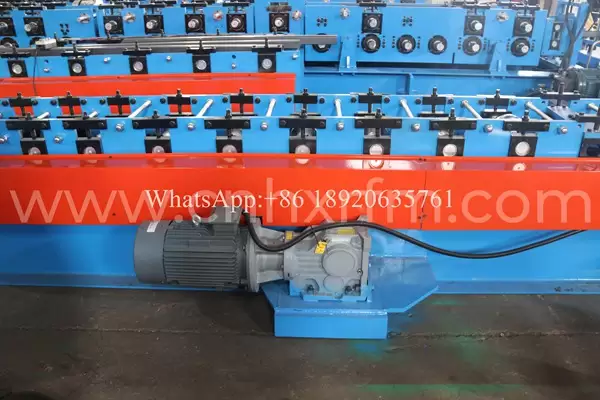

Progressive Angle Formation: The flat strip enters the forming section. At each consecutive station, top and bottom rolls gradually bend the metal. The geometry of these rolls is meticulously engineered to form the specific angle and profile shape of the brace efficiently and without distortion. Maintaining the exact angle consistently is a hallmark of a quality rack system bracing roll forming machine.

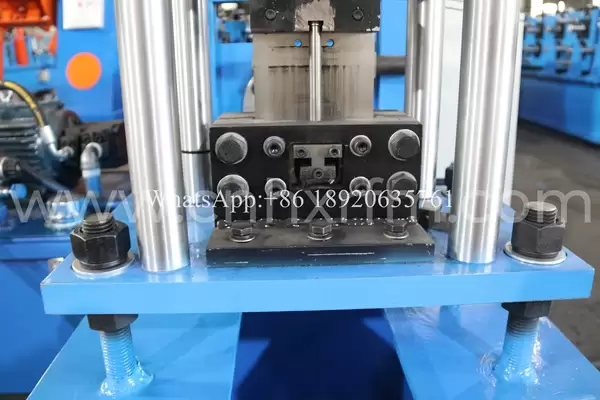

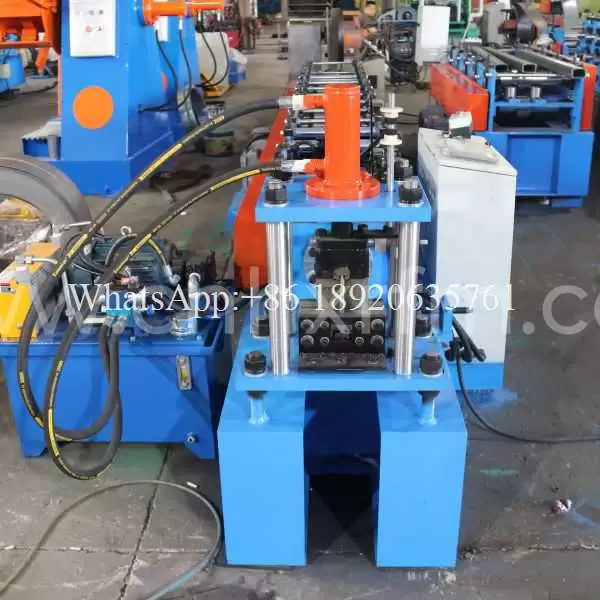

Precision Length Cutting: The continuous stream of formed, punched, and potentially end-formed braces reaches the cut-off. Advanced synchronization allows the cutting mechanism to move with the profile, making a clean, perpendicular cut to the exact programmed length without stopping production.

Output Handling: The completed galvanized rack braces are conveyed smoothly away from the rack system bracing roll forming machine, ready for packaging and shipment.

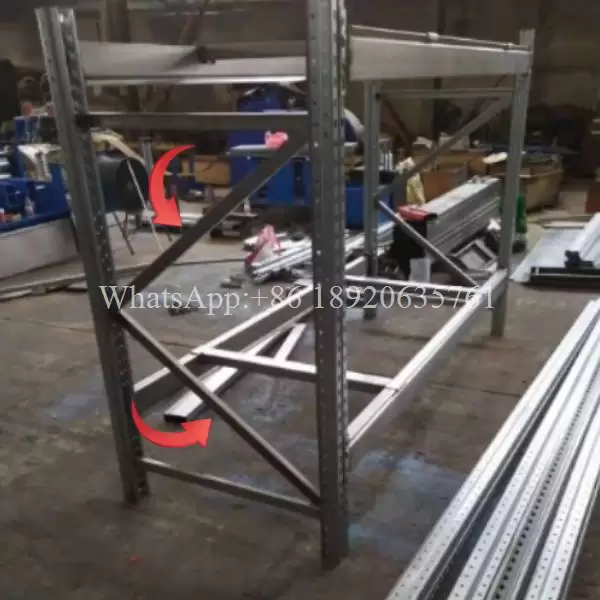

Application Scenario

Our photos with our customers

Why Choose Us?

About us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a rack system bracing roll forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the rack system bracing roll forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
