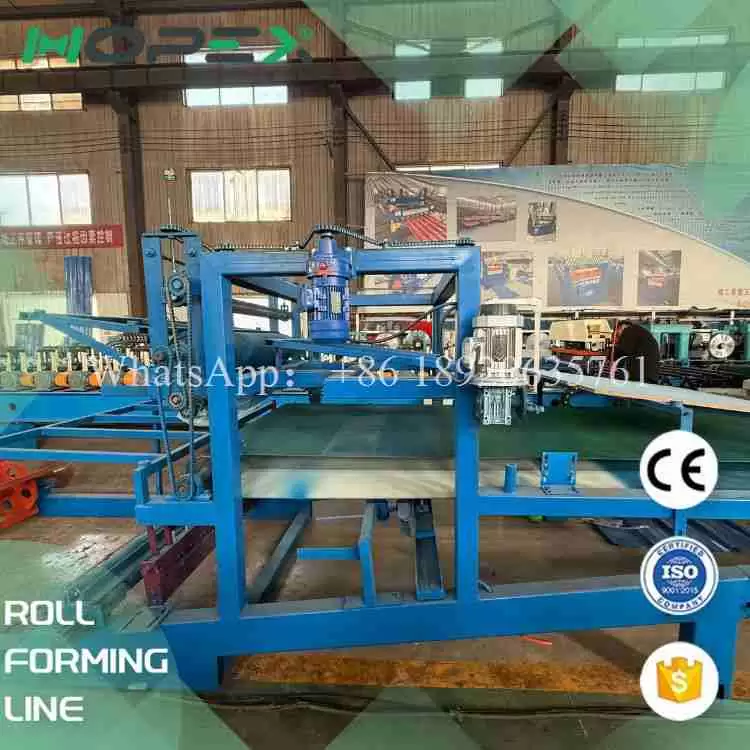

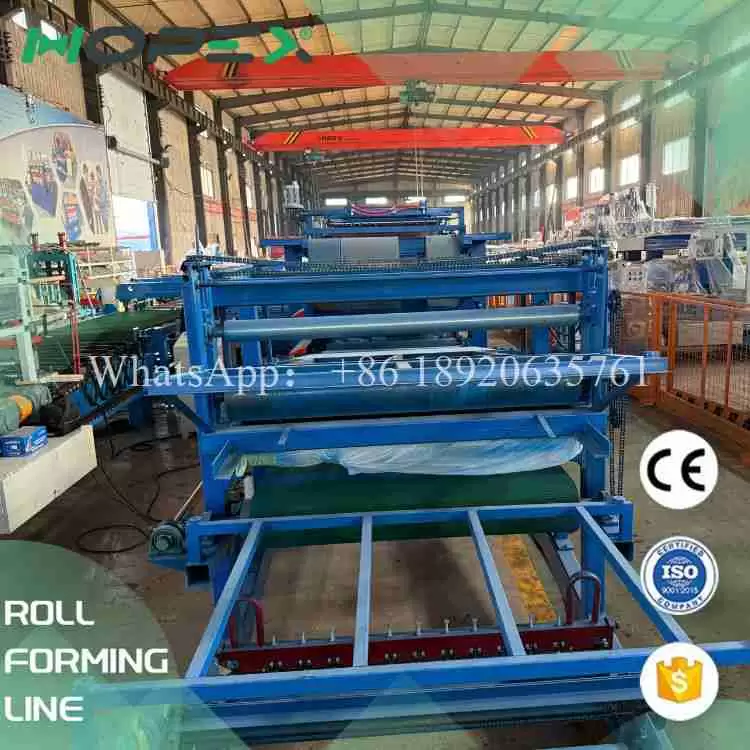

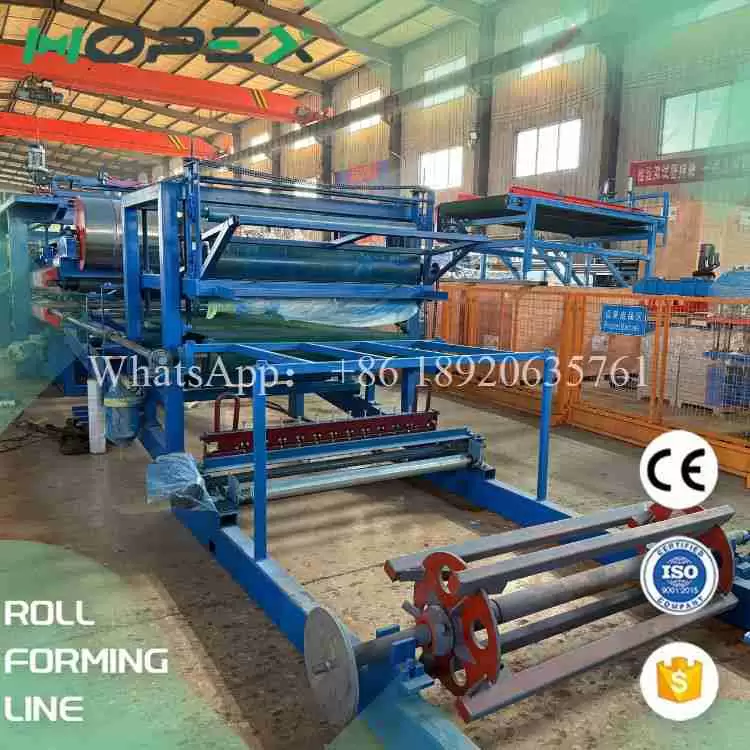

EPS Roof Tile & Wall Sandwich Panel Machine
Comprehensive Building Solution with EPS Sandwich Panel Machine Production Line
The modern construction industry continues to evolve towards solutions that prioritize energy efficiency, rapid installation, and long-term structural integrity. Expanded Polystyrene (EPS) sandwich panels have emerged as a versatile and highly effective building material, meeting these demands across diverse projects. Our EPS sandwich panel machine production line represents a complete, automated manufacturing system engineered to produce superior quality insulated panels for both wall and roof applications. This integrated EPS sandwich panel machine production line seamlessly combines advanced roll forming technology with precise composite bonding processes to deliver consistent, high-performance building components.
More parameters
| Product Name | EPS sandwich panel machine production line |
| Total power of equipment | 40 kw |
| Operating voltage | 380 V（Customizable） |
| Produce speed | 0-6 m/min |
| Electrical control system | The PLC is operated by Delta, featuring a 7-inch color touchscreen; the frequency converter is Delta; the counter is Omron; the motor is Shanghai Lichao; and the glue pump is Shanghai Shuangzhou. |
| Color steel sheet thickness | 0.2-0.6mm |

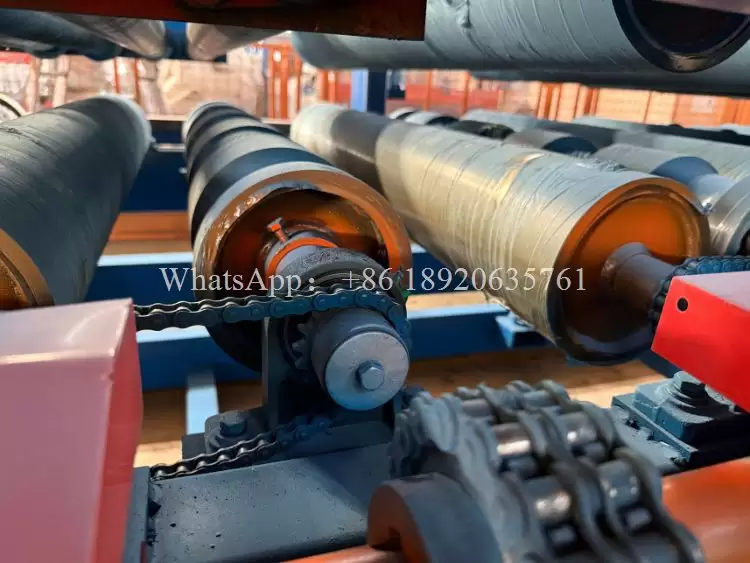

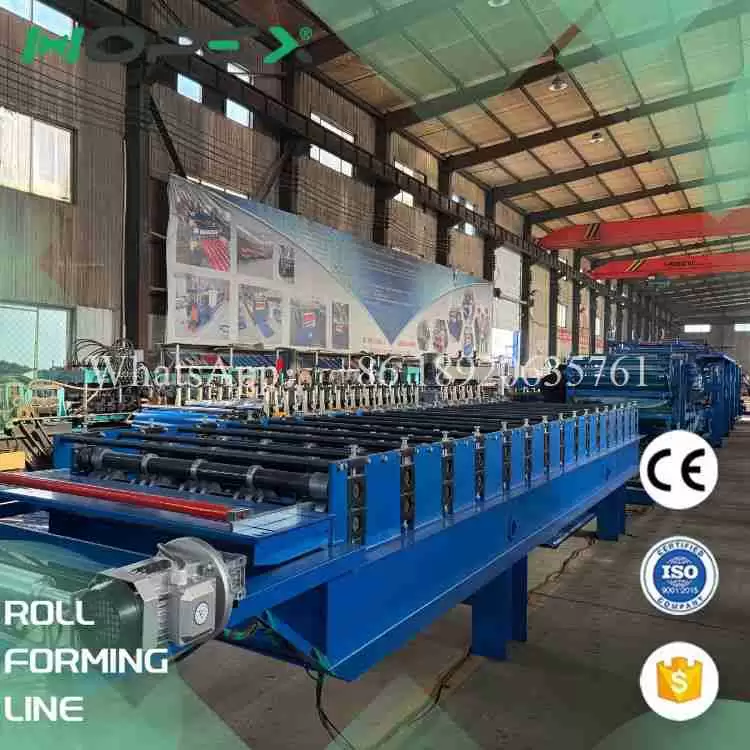

| Roll forming machine part | Forming row: 16 rows; Shaft diameter: ф70 mm; Motor: 5.5kw |
| Product thickness |
EPS: 50-250mm Rock wool: 50-100mm |

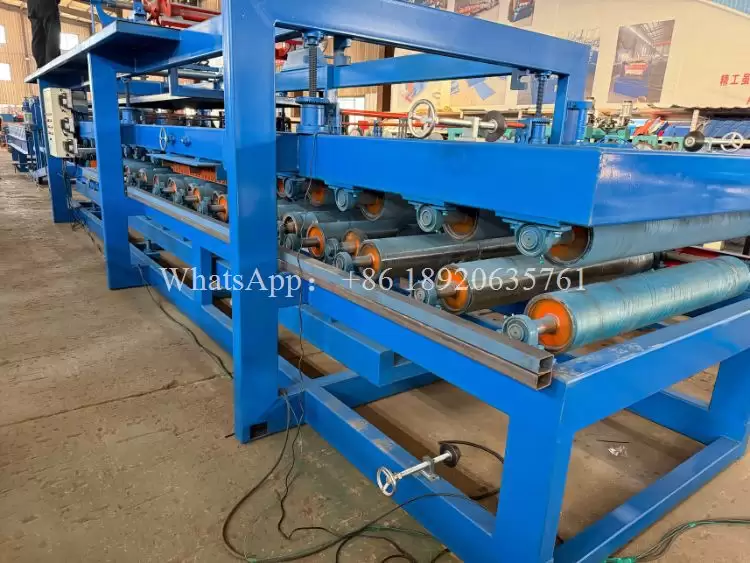

| Composite host section | 52-pass roll forming process (roller diameter 180mm) |
| Feeding width | 1000mm/1200mm |
| Production line size | Composite main unit length: 9 meters; Feeding mechanism: 6.5 meters; Cutting machine: 4 meters (recessed front cutting); Feeding section: 6-meter conveyor belt; Total equipment length: 38 meters; Total equipment width: 2.2 meters; Total equipment height: 2.4 meters |
| Equipment operating area | 45m*7m*4 m |
| Material and thickness | a. EPS foam thickness: 30-250mm b. Rock wool: 50-100mm |
| Glue pump dispensing volume | 0~0.4 kg per dose |
| Glue (black glue: white glue) | 1:1 |
| Glue application speed | 80 times/minute |
| Cutting system |
Weight：~ 1.0 t Drive motor：1.5kw×2 Sandwich Panel length: >= 1500mm |
Production Process

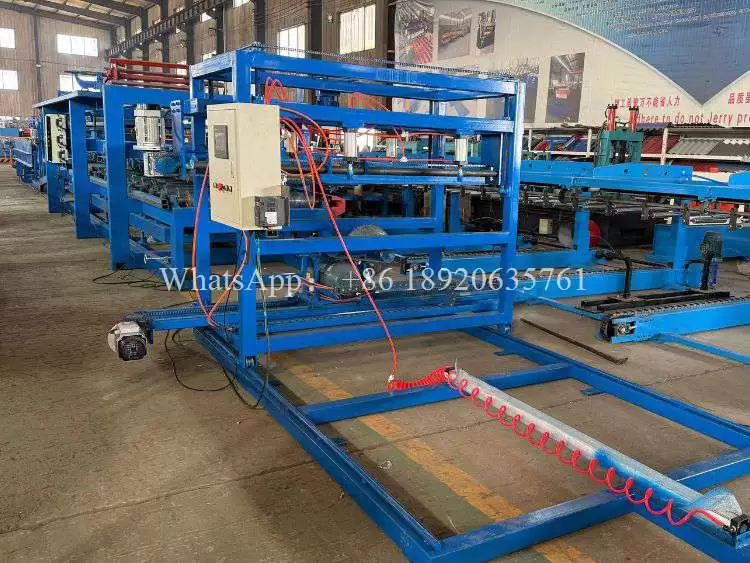

The core operation of our EPS sandwich panel machine production line follows a meticulously engineered and fully automated workflow. The process initiates with the automatic decoiling of pre-painted steel coils, which are then precisely leveled. The metal strip advances into the heart of the EPS sandwich panel machine production line – the precision roll forming station – where it is cold-formed into specific panel profiles. Simultaneously, the EPS insulation core is fed into the system. The key stage of composite panel formation then bonds the metal skin to the core under controlled conditions, creating a robust, unified structural element. Finally, a computer-controlled cutting unit accurately sections the continuous panel, and an automated stacking system prepares the finished products for shipment. This streamlined process ensures the panels produced by our EPS sandwich panel machine production line exhibit exceptional dimensional accuracy and uniform quality.
The panels manufactured by this EPS sandwich panel machine production line are designed for broad application in commercial, industrial, and agricultural construction. They serve as ideal exterior walls and roofing for factories, warehouses, cold storage facilities, and clean rooms, providing excellent thermal insulation, fire resistance, and aesthetic appeal. A significant advantage of our EPS sandwich panel machine production line is the comprehensive remote technical support we provide. Our engineers offer real-time video guidance for installation, operational troubleshooting, and preventive maintenance, ensuring your production remains efficient with minimal downtime.
Investing in our EPS sandwich panel machine production line is a strategic decision to enter or expand within the growing market for prefabricated building systems. It empowers manufacturers to supply the construction industry with high-performance, energy-saving panels that speed up project timelines and reduce long-term operational costs. By integrating this advanced EPS sandwich panel machine production line, you position your business at the forefront of modern, sustainable building material manufacturing.
Application scenarios
Our photos with our customers
Our Certificate
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a EPS sandwich panel machine production line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the EPS sandwich panel machine production line be completed in 30 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
