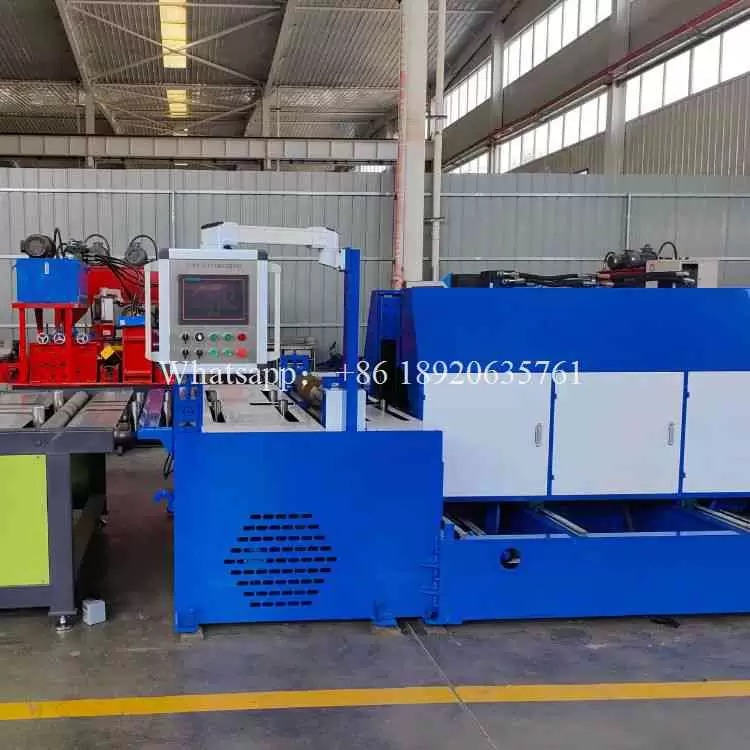

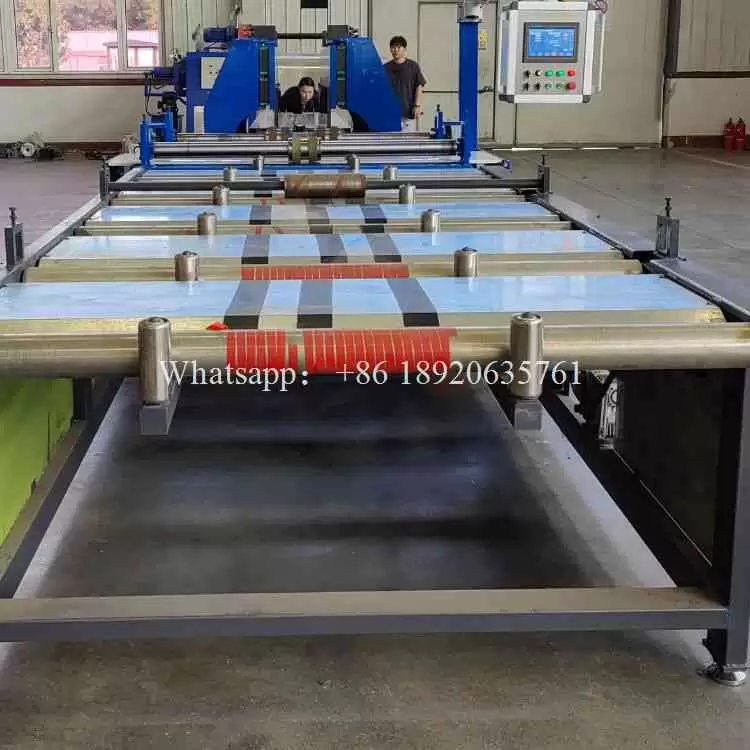

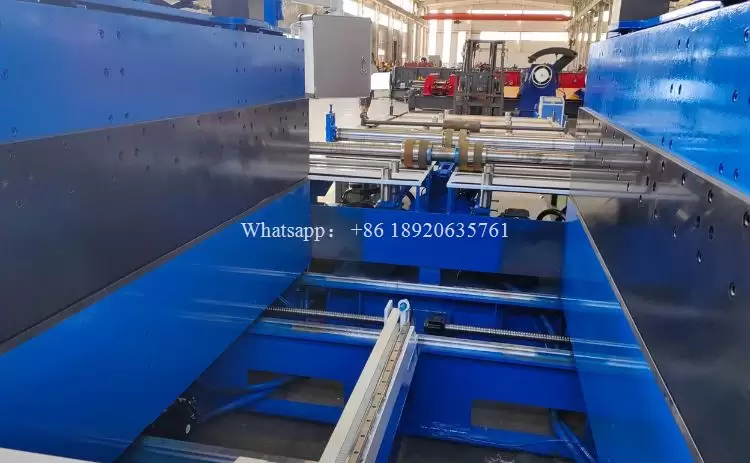

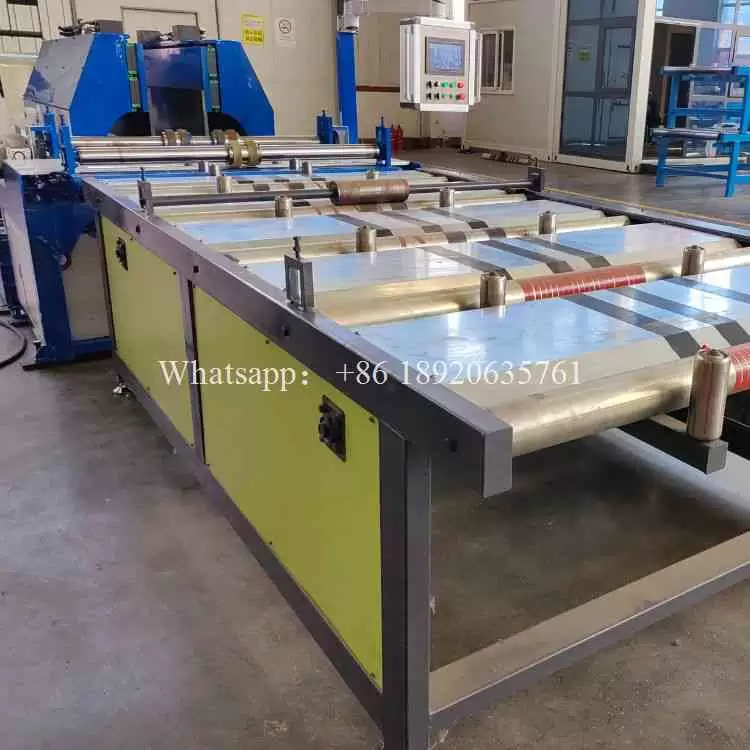

CNC Cable Tray Bending Machine
CNC Cable Tray Bending Machine: Revolutionizing Cable Support System Manufacturing
In the world of electrical infrastructure manufacturing, precision and efficiency are paramount. Our CNC Cable Tray Bending Machine is engineered to deliver exactly that. This advanced piece of equipment is designed to transform pre-sheared and pre-punched metal plates into accurately formed cable trays with unparalleled consistency.
Workflow Diagram

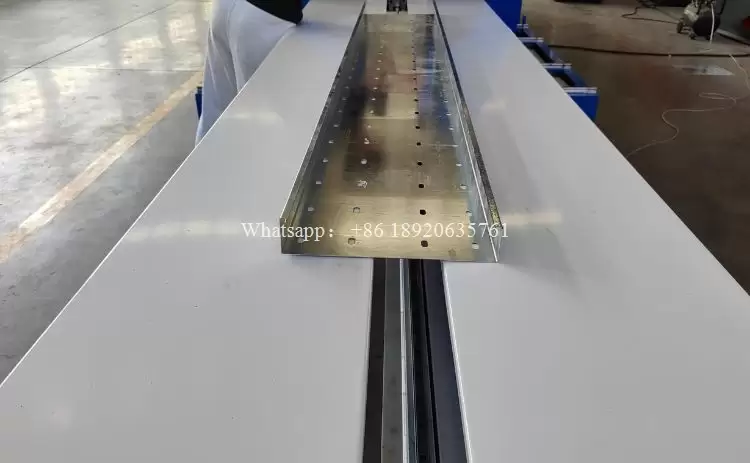

The core function of our CNC Cable Tray Bending Machine is to automate the critical bending process. Operators simply load the flat metal profile, and the machine takes over, executing complex bends according to digitally programmed parameters. This guarantees that every bend, angle, and dimension is produced with extreme accuracy, batch after batch. The versatility of this CNC Cable Tray Bending Machine is a key advantage. Whether you require standard shapes like ladder-type or trough-style trays, or something entirely custom, our machine can be programmed to accommodate. The bending width, angles, and overall form are fully customizable to meet specific project blueprints and load-bearing requirements.
Understanding the fast pace of project timelines, we have streamlined our process. Upon receiving your specifications, our engineering team can provide detailed design drawings within just three days. This rapid turnaround ensures your production schedule remains on track.
Furthermore, our commitment to customer support extends far beyond the factory floor. We offer comprehensive remote warranty services and real-time video guidance. Our experienced engineers can connect online to troubleshoot, provide operational training, and ensure your CNC Cable Tray Bending Machine is always performing at its peak, minimizing downtime and maximizing your productivity.
In essence, investing in our CNC Cable Tray Bending Machine is not just about acquiring a machine; it's about embracing a smarter, more reliable, and highly efficient manufacturing solution for all your cable tray production needs. It represents a significant leap forward in quality control and operational flexibility for any serious manufacturer.
More parameters
| Product Name | CNC Cable Tray Bending Machine |
| CNC bending part | Automatic feed port identification Servo opening and closing Precision-ground forming tools Opening and closing motor power (5.5kW) |

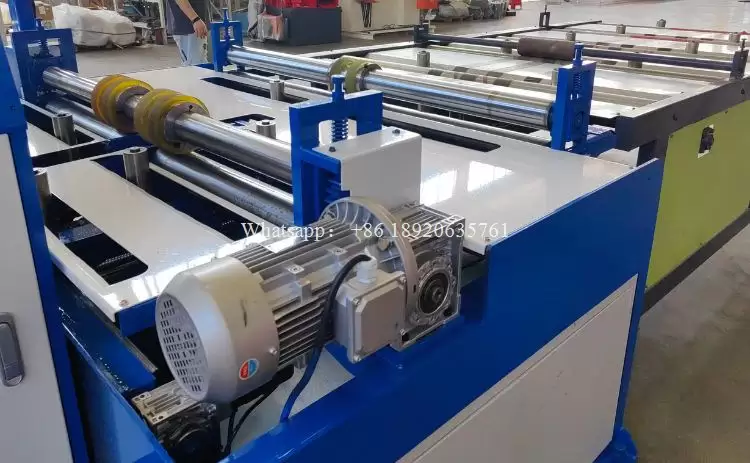

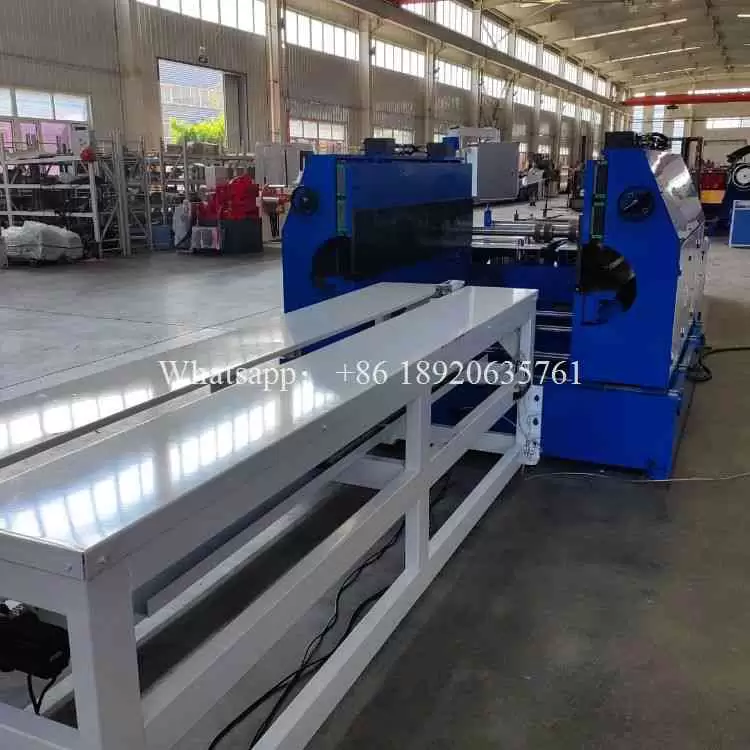

| Discharging station | 4-meter servo-assisted discharge Main motor power (1.5 kW) Anti-collision material limiter |
| Hydraulic station | Multiple solenoid valves Solenoid overflow valve Cooling system Motor power (7.5 x 2) kW Oil tank capacity (400 liters) |
| Produce speed |
4-6 m/min |
| Rolled strip material | Q235 cold rolled sheet, galvanized sheet |
| Voltage | 380V，50Hz，3p be customized |
| Feeding thickness | 1.5(±0.03)—2.0(±0.03) mm |
| Equipment footprint | 6.5×2.5×2M |
| Feeding width | 200-1250 mm |
| Molding specifications | 800/200-100/50 (single and double folding) |
Application Scenario
Our Certificate
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a CNC Cable Tray Bending Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the CNC Cable Tray Bending Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
