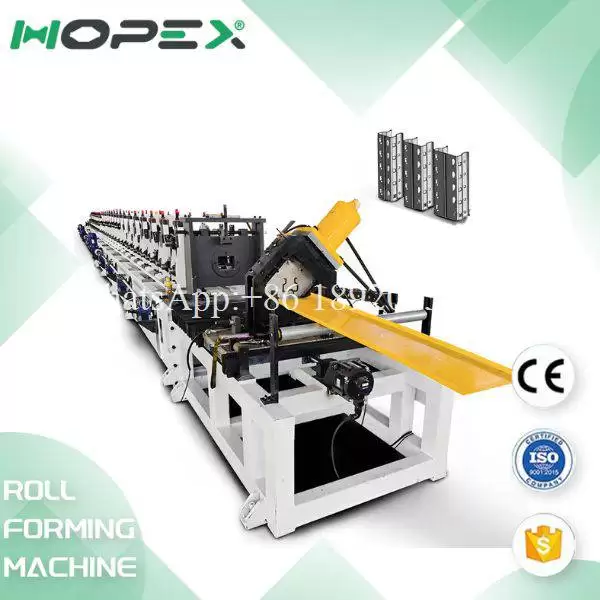

The Backbone of Your Storage: Mastering Upright Production with Our Advanced Upright Roll Forming Machine
For over 28 years, we have been at the forefront of manufacturing excellence, engineering robust solutions for the material handling and storage industry. A cornerstone of our expertise lies in the design and production of high-performance upright roll forming machines. These specialized workhorses are engineered for one critical task: the efficient, precise, and continuous production of the galvanized steel uprights that form the essential vertical framework of pallet racking, shelving systems, and warehouse storage solutions.

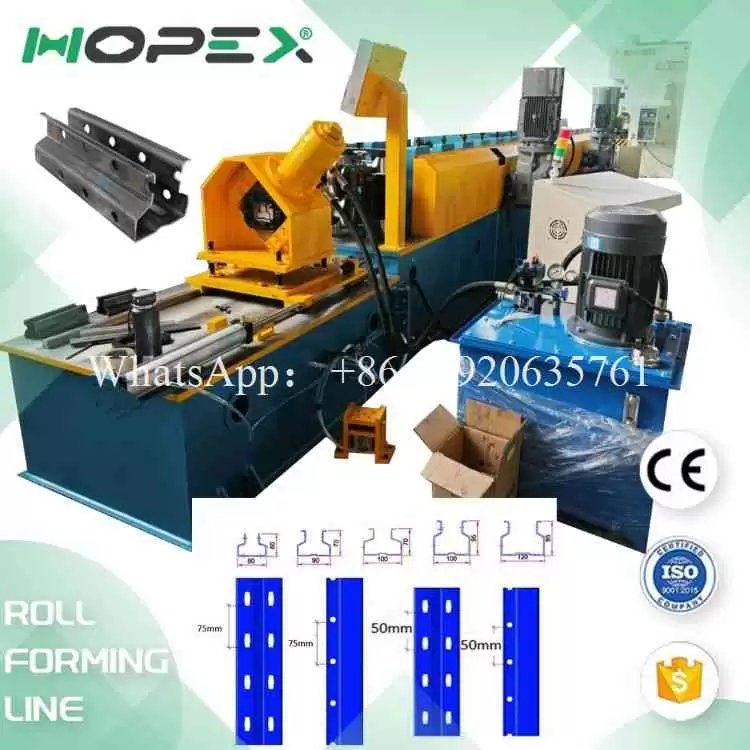

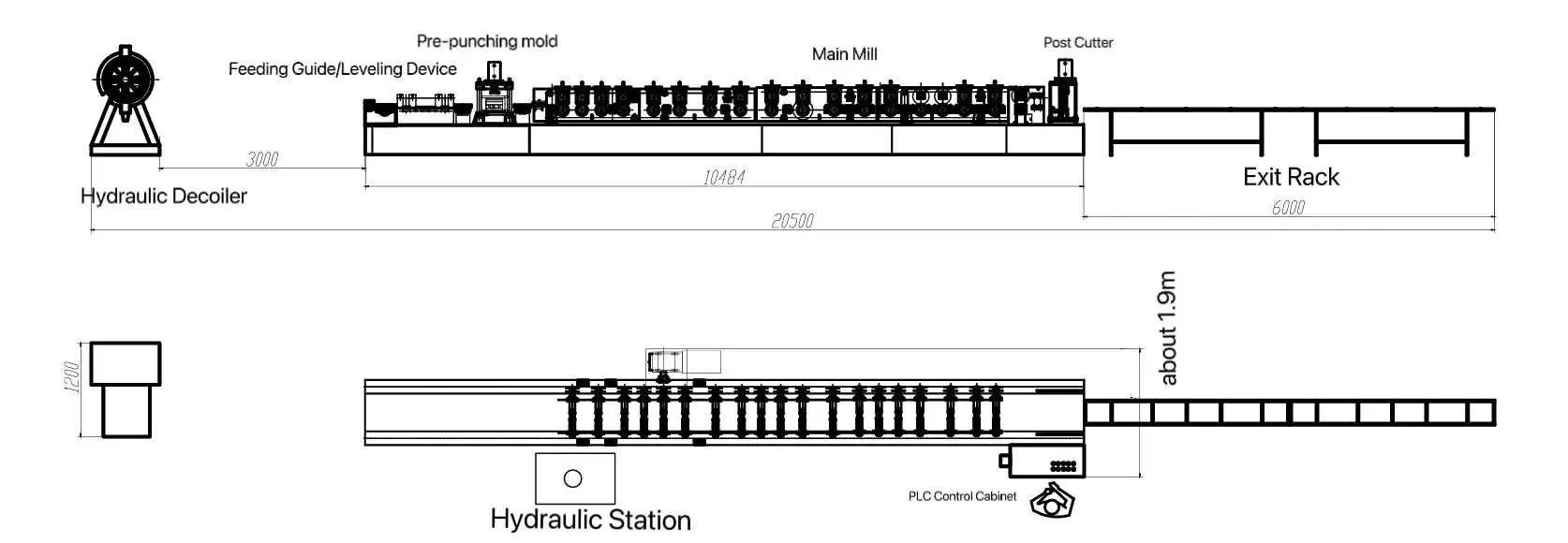

Workflow Diagram
More parameters
| Product Name | Automatic Upright Roll Forming Machine Manufacturer |
| Punching | 80 ton mechanical punch press |
| Main motor power | 18.5 kw（Polaroid） |
| Hydraulic station | Vane pump, 5.5kw |
| Produce speed | 6-8 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |
| Touch screen | Weilun or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-62℃ |
| Cutting blade material | Cr12MOV, treatment off 58 ℃ -62℃ |
| Roller diameter | Φ80mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 1.5-2.5mm |
| Rows | 18 |
| Board height | 600-900 mm |
Precision in Motion: The Upright Roll Forming Machine Workflow. Understanding the seamless operation of our upright roll forming machine highlights its efficiency:

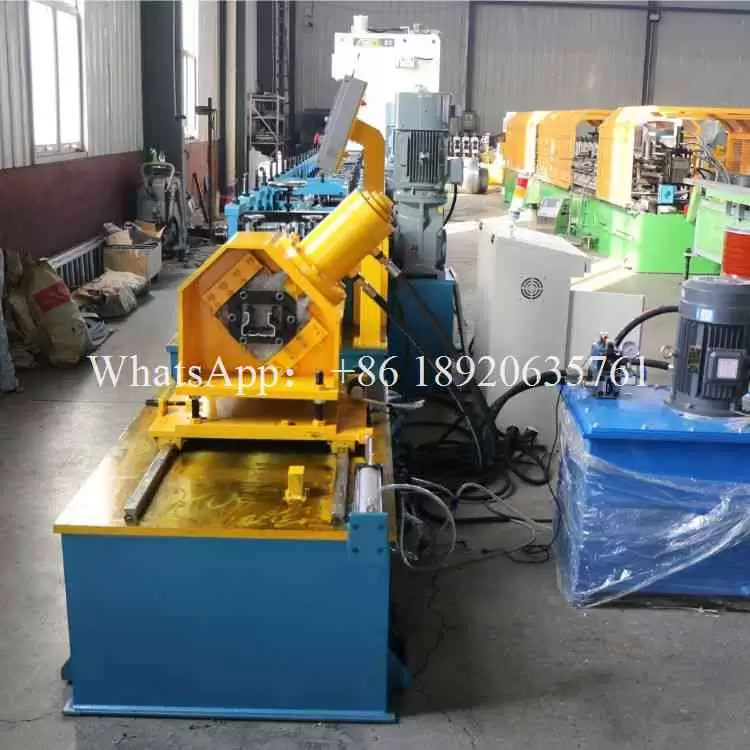

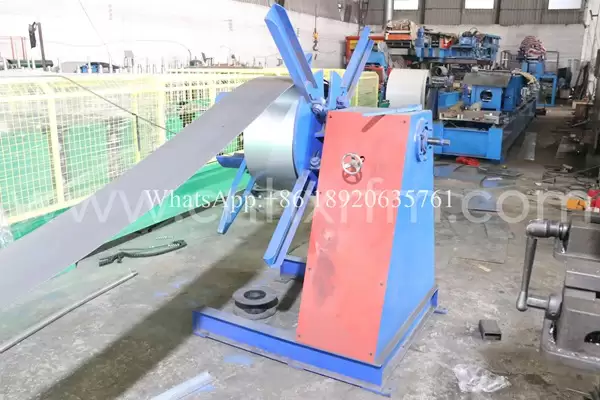

Material Loading & Feeding: A large coil of galvanized steel strip is mounted onto the decoiler. The leading end is fed through the leveler, ensuring perfect flatness.

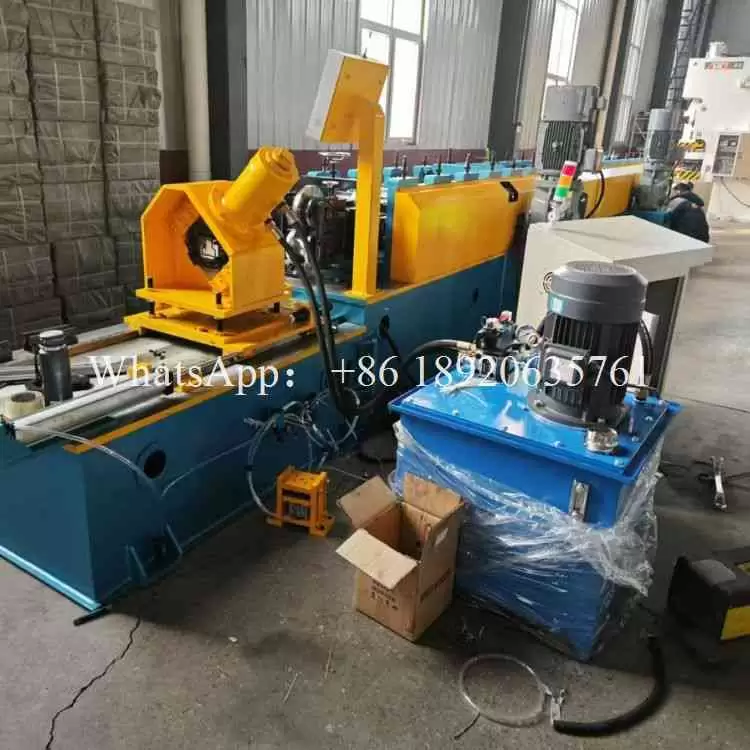

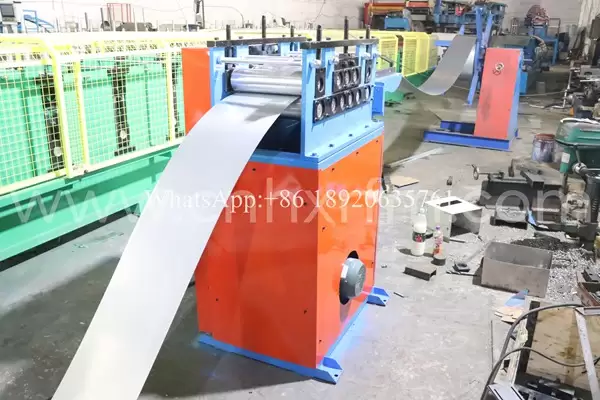

Precision Leveling: The leveling unit meticulously removes any curvature or twists from the coiled strip, guaranteeing a flat baseline for accurate forming.

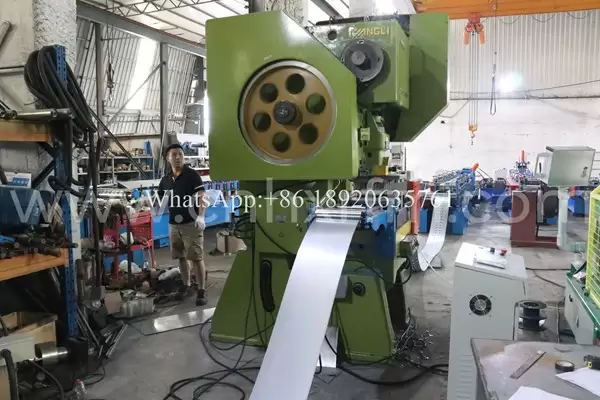

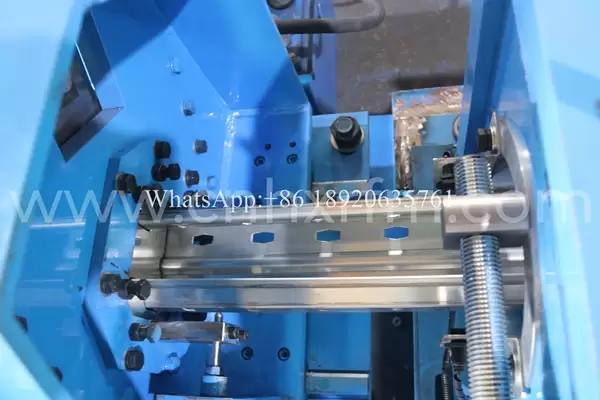

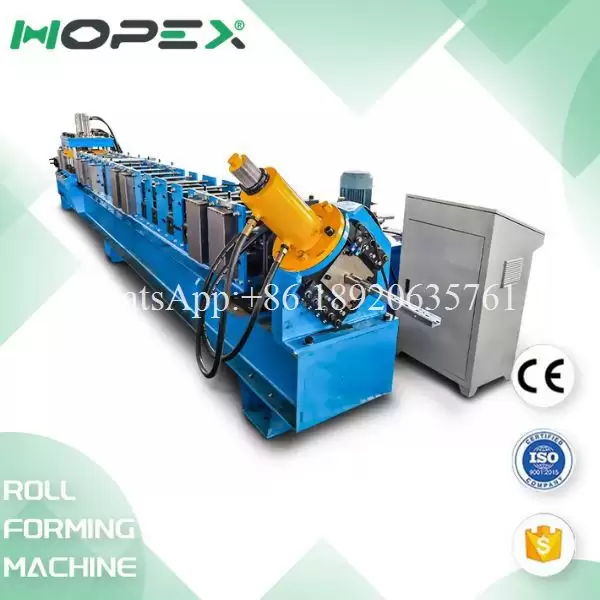

In-Line Punching (Critical for Uprights): As the partially or fully formed profile progresses, it reaches the punching station. Hydraulic or servo-driven punches, synchronized perfectly with the line speed, rapidly and accurately punch the required hole patterns (e.g., teardrop slots, round holes) into the web or flanges of the upright. This integration is a hallmark of a sophisticated upright roll forming machine, eliminating secondary operations.

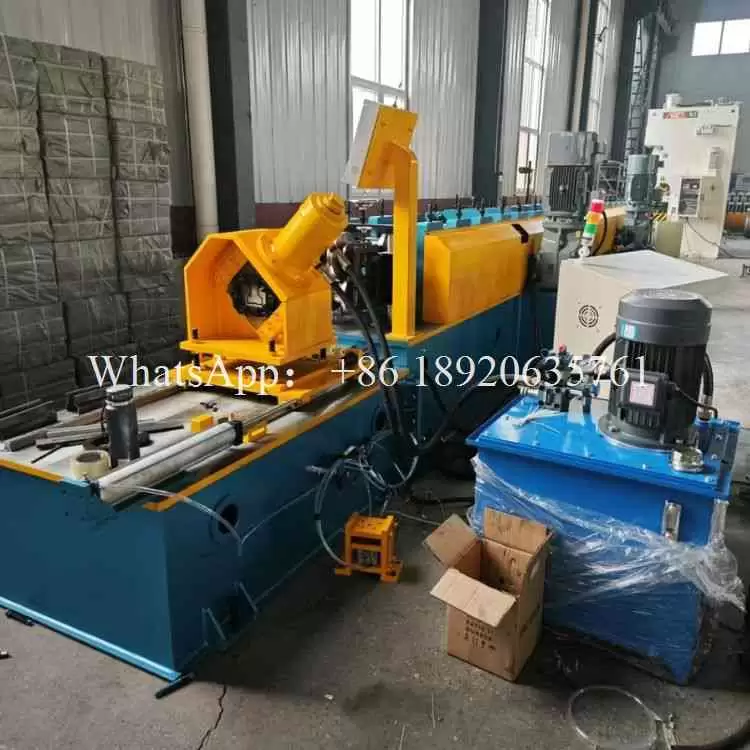

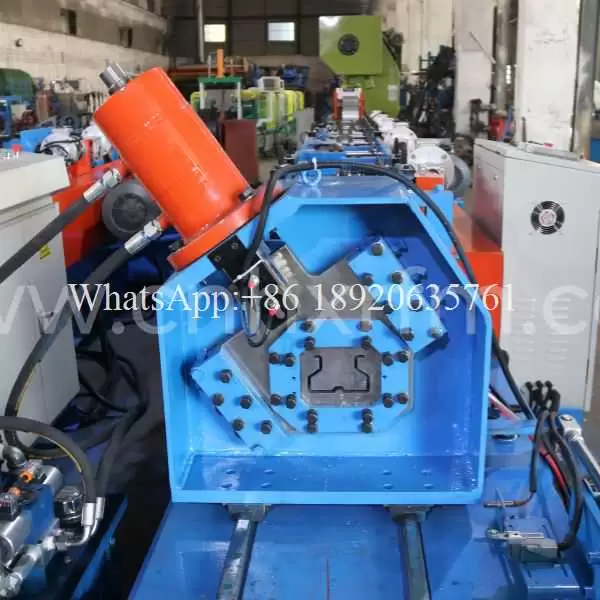

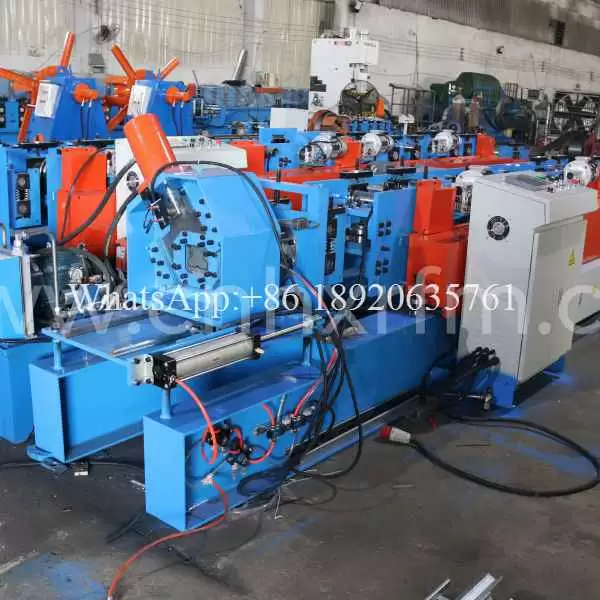

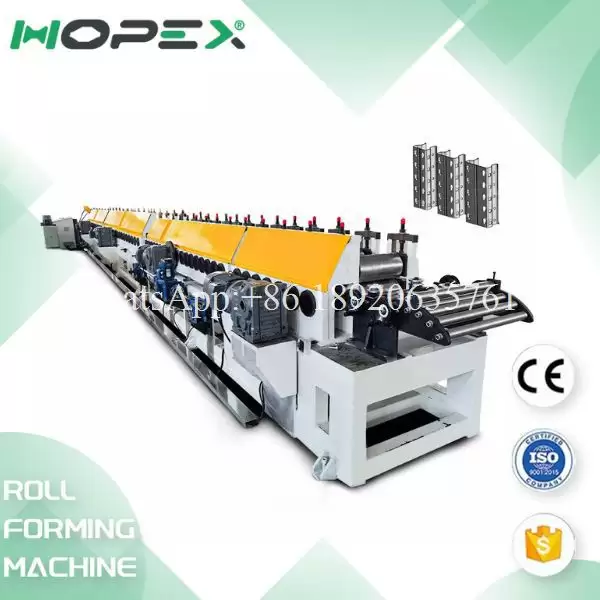

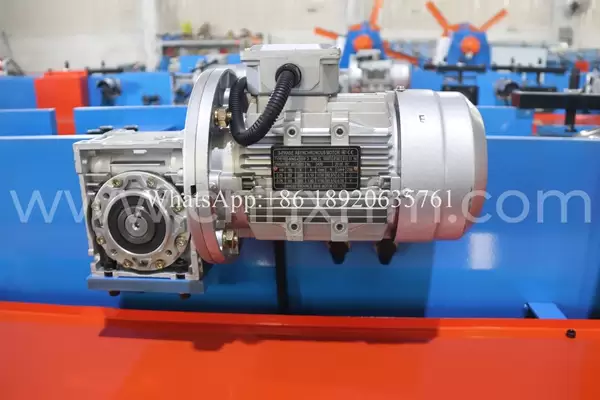

Progressive Roll Forming: The steel strip enters the forming section. At each consecutive station, pairs of powered top and bottom rolls incrementally bend the metal. The geometry of these rolls is meticulously calculated to transform the flat strip into the final, complex upright profile – be it teardrop, structural, or a custom design – without material stretching or distortion. Throughout this stage, the upright roll forming machine maintains exceptional dimensional consistency.

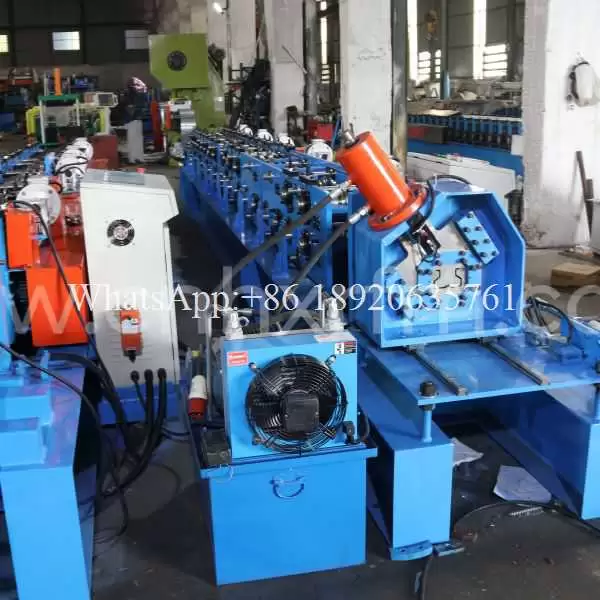

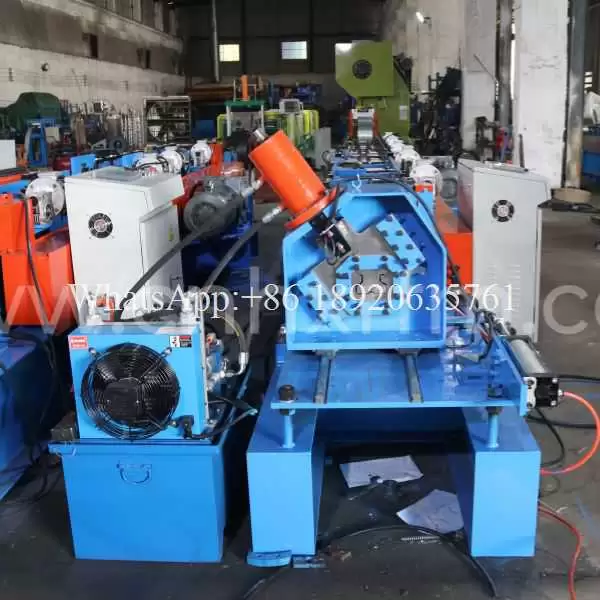

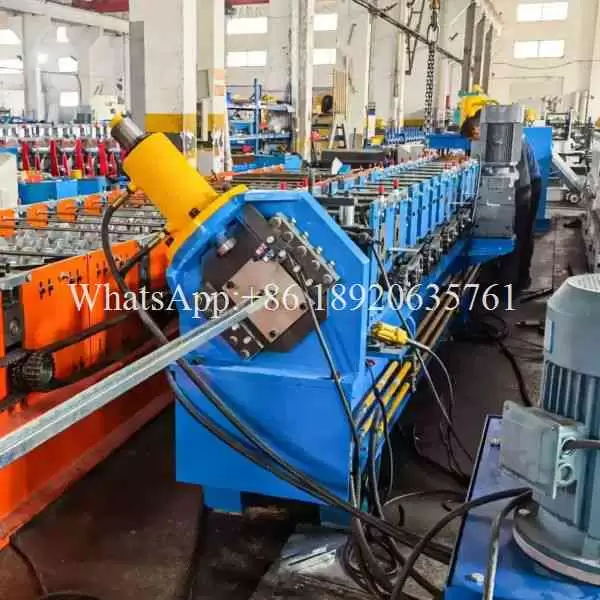

Precision Cutting: The continuously moving, fully formed and punched profile reaches the cut-off. Using advanced synchronization, the cutting mechanism (flying cutoff saw, shear, or servo cutter) severs the upright to the exact pre-programmed length without halting the line's forward motion.

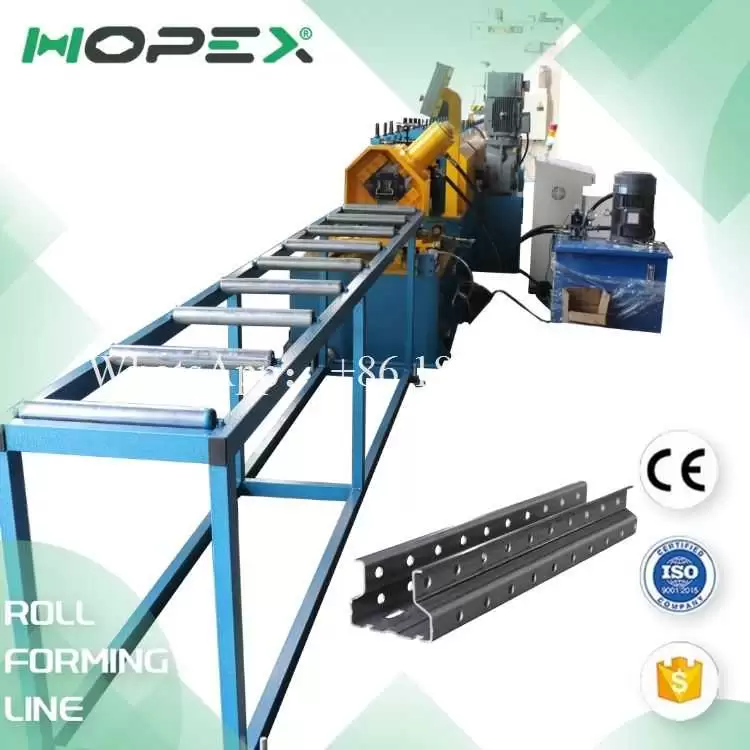

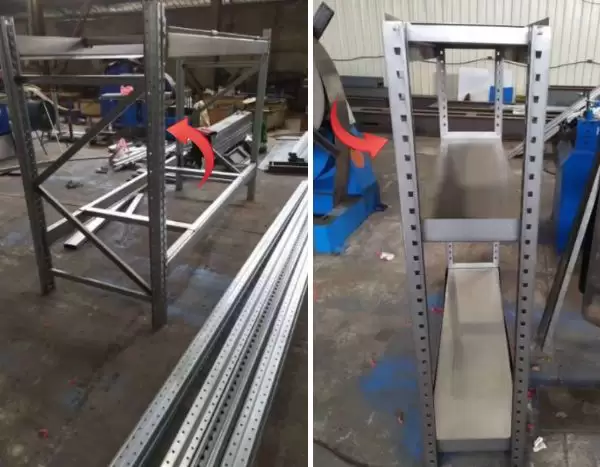

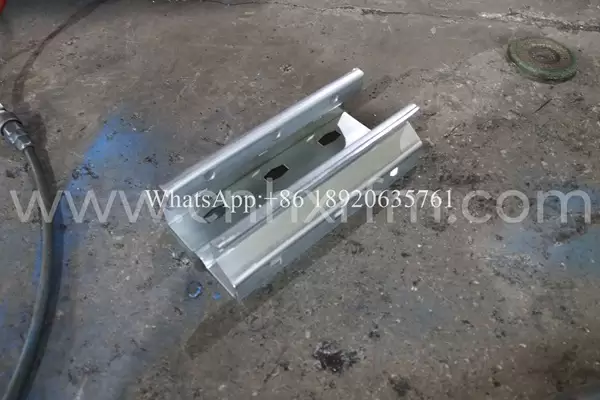

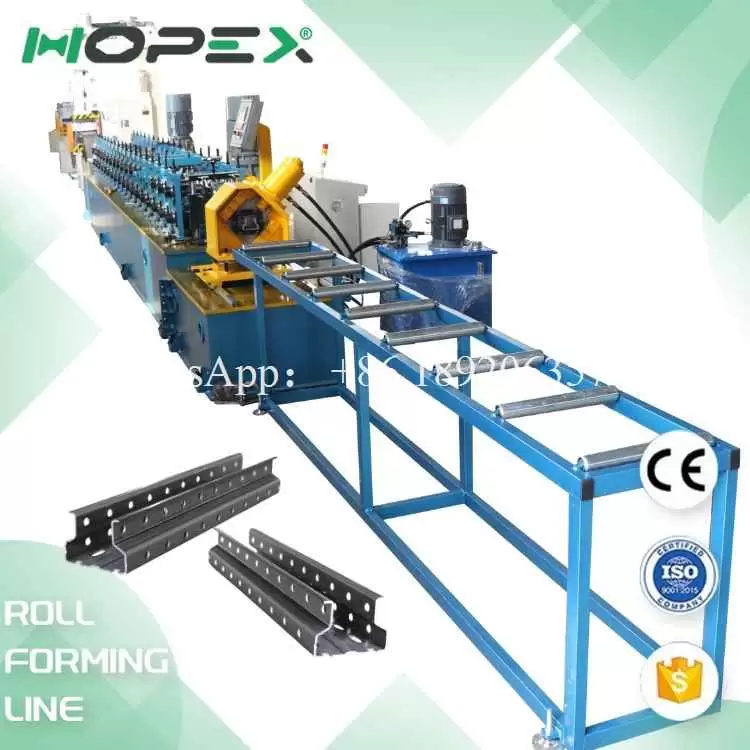

Finished Product Handling: The completed galvanized shelf uprights are conveyed smoothly away from the upright roll forming machine, ready for bundling, packaging, or further processing.
