The Floor Deck Machine Line: Precision Engine for Modern Building Systems

In the fast-paced world of modern construction, efficiency, precision, and structural integrity are non-negotiable. At the heart of producing the essential components for composite floors and roofs lies the floor deck machine line. This fully integrated, automated production system transforms raw steel coil into the precisely profiled decking sheets that form the backbone of countless commercial, industrial, and institutional buildings. Understanding the sophistication and advantages of the floor deck machine line reveals its indispensable role in meeting the demands of contemporary construction for speed, quality, and performance.

Roll Forming Process Workflow Diagram

More parameters

Workflow:

The production journey on a floor deck machine line begins with the Decoiling and Feeding Unit. Heavy coils of steel, typically galvanized or coated with proprietary alloys for corrosion resistance and ranging in thickness from 0.7mm to 1.5mm, are loaded onto a powered uncoiler. Modern floor deck machine line configurations incorporate advanced features like hydraulic mandrels for quick coil changes and sophisticated tension control systems – often utilizing servo-driven dancers or pneumatic brakes – to ensure a smooth, consistent, and stable feed of material into the subsequent stages. This initial control is critical for the entire floor deck machine line's stability.

Steel coil inherently possesses curvature (coil set) and may have minor surface imperfections from handling. The Levelling (or Flattening) Section addresses this. A core component of the floor deck machine line, this stage employs a series of precisely aligned, alternating rolls. As the steel strip passes through these rolls under significant pressure, internal stresses are relieved, and any curvature, twists, or minor dents are meticulously eliminated. The result is a perfectly flat, uniform strip – a fundamental prerequisite for achieving the dimensional accuracy required in the final floor deck profile and ensuring flawless feeding into the forming stage. Consistent, high-quality material entering the forming section is vital for the performance of the entire floor deck machine line.

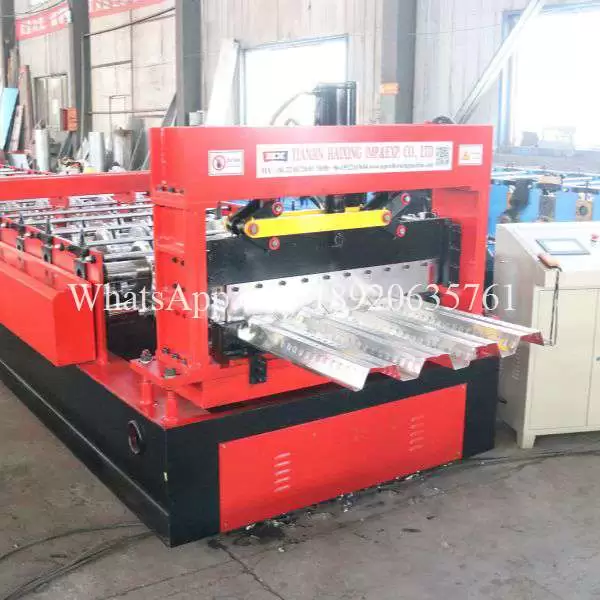

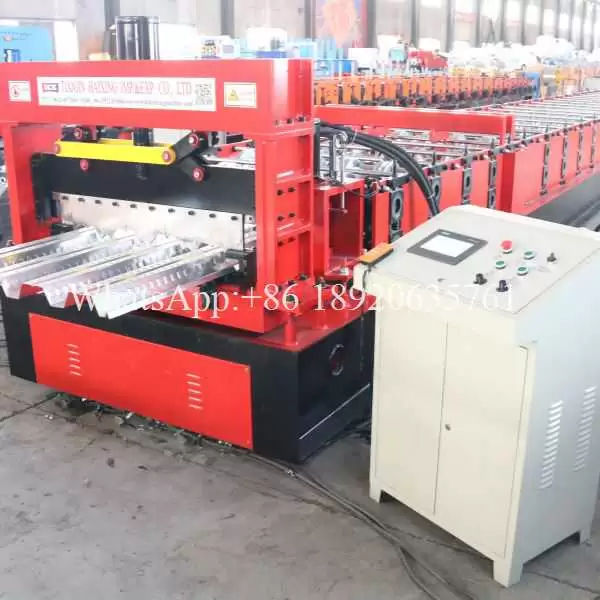

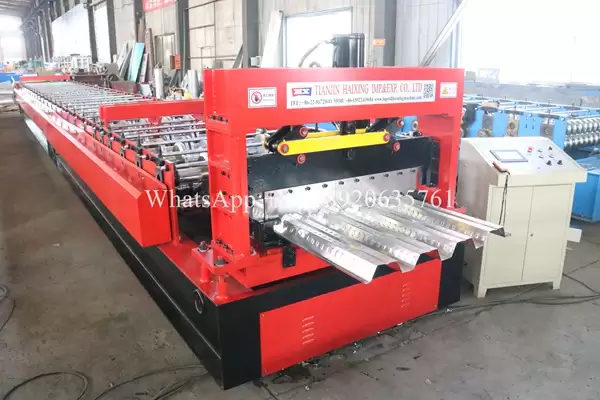

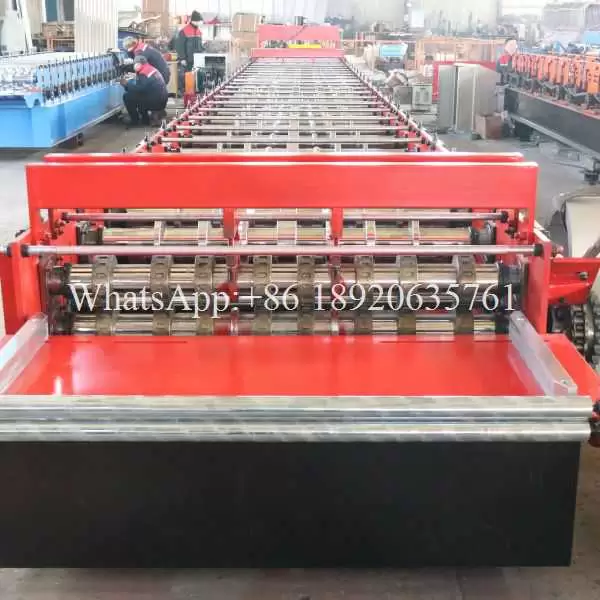

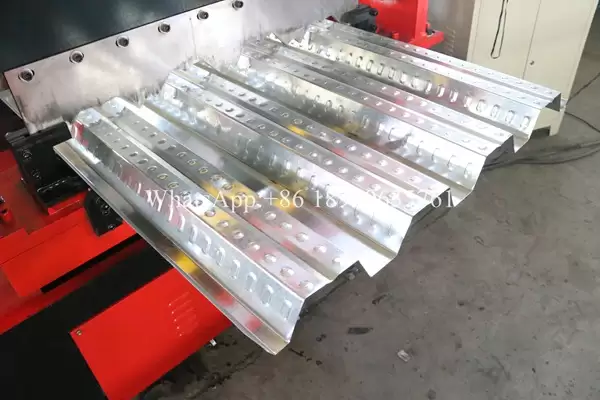

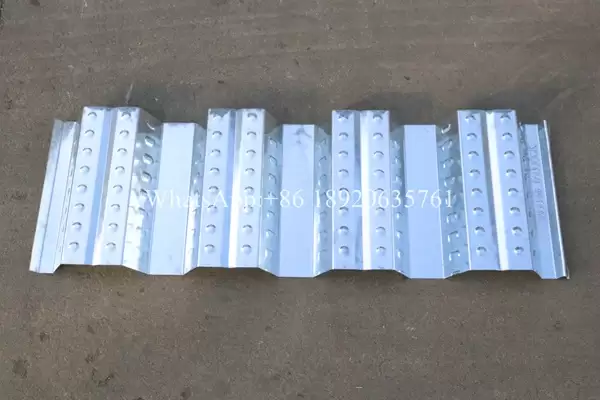

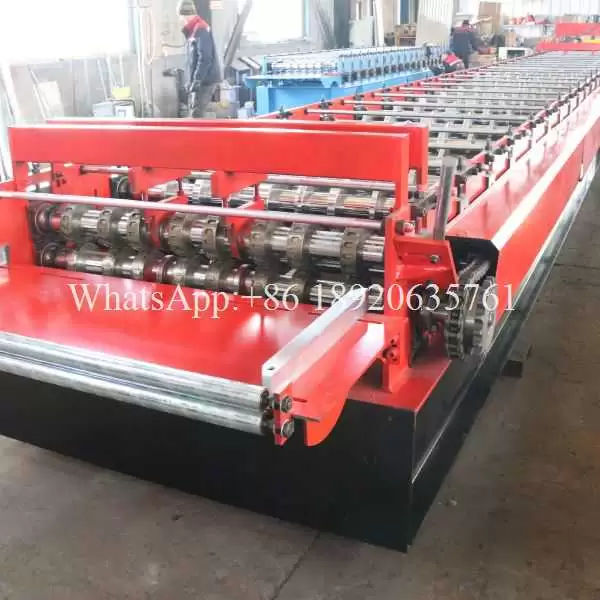

The undisputed core of the floor deck machine line is the Roll Forming Station. Here, the transformation from flat strip to complex structural profile occurs. The steel passes progressively through a sequence of precisely engineered roll stands. Each stand contains a matched set of hardened steel or carbide upper and lower rolls, machined to exacting tolerances. As the strip moves consecutively through each stand, the rolls incrementally bend the material, gradually forming the ribs, flutes, embossments (for enhanced composite bond), and edge details characteristic of structural floor deck profiles (such as dovetail, re-entrant, or cellular designs). The number of forming stands in a floor deck machine line (often 20 to 30+ for complex profiles) directly influences the quality of the bends and the intricacy achievable. Servo-driven side guides meticulously maintain the strip's lateral position throughout this critical process, ensuring profile consistency. The precision of this stage defines the structural capability of the final floor deck.

Once the steel achieves its final profile, it moves at line speed to the Cutting System. Synchronization and precision here are paramount. Modern floor deck machine line predominantly utilize sophisticated flying cut-off systems. A cutting unit – employing robust hydraulic shears or high-speed carbide-tipped circular saws – synchronizes its travel speed perfectly with the moving deck profile. At the precise length determined by the control system (using encoders or laser measurement), the cutter descends or traverses, making a clean, square cut without halting production. This enables the production of pre-set lengths ranging from short starter pieces to full building spans (commonly exceeding 12 meters), with cutting tolerances routinely held within ±1.0mm or better. Advanced floor deck machine line incorporate automatic marking systems (inkjet or punch) for panel identification and job site sequencing. The efficiency and flexibility of the floor deck machine line hinge significantly on this high-speed, accurate cutting capability.

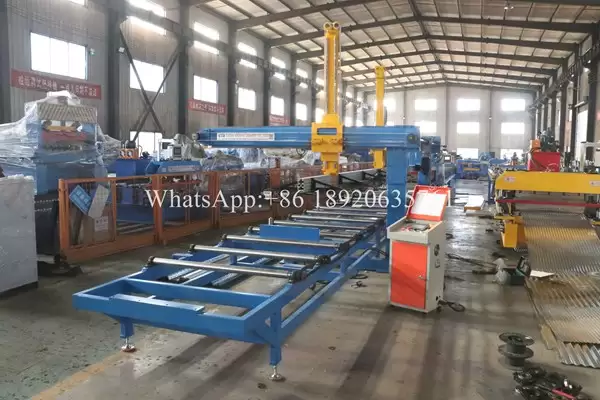

The final, crucial step in the automated workflow of the floor deck machine line is Stacking and Bundling. Cut deck panels are conveyed away from the cutting zone. Automated stacking systems – often robotic or utilizing sophisticated programmable lift-and-tilt mechanisms – gently collect the panels. They arrange them into neat, uniform stacks, meticulously aligned and typically automatically strapped or banded for secure transport and efficient handling on the construction site. Integrated palletizing may also be included. This automation ensures product integrity, minimizes manual handling risks, and prepares the finished floor deck bundles for immediate shipment and installation. The stacking efficiency completes the transformation from raw coil to ready-to-install building component within the floor deck machine line.

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the Premium floor deck machine line. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the Premium floor deck machine line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
