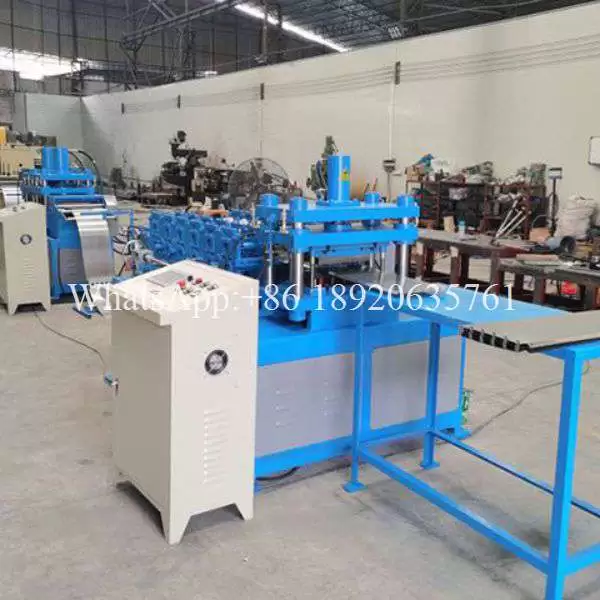

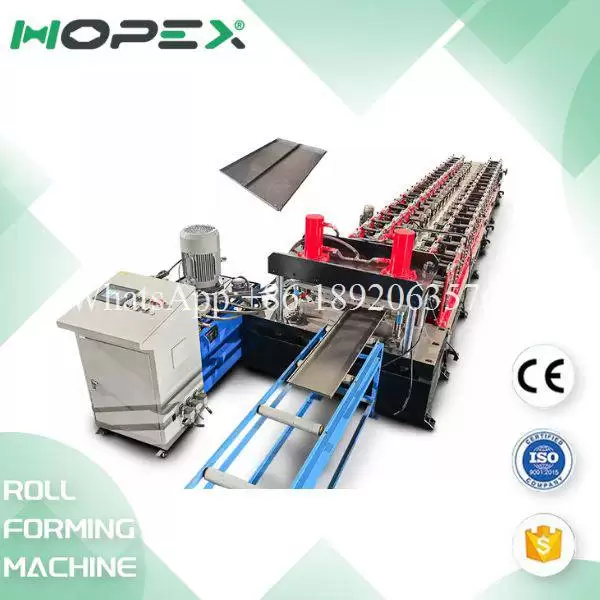

Automatic Shelves Panel Roll Forming Machine
The Essential Platform: High-Efficiency Shelving Panels from Our Advanced Shelves Panel Roll Forming Machine

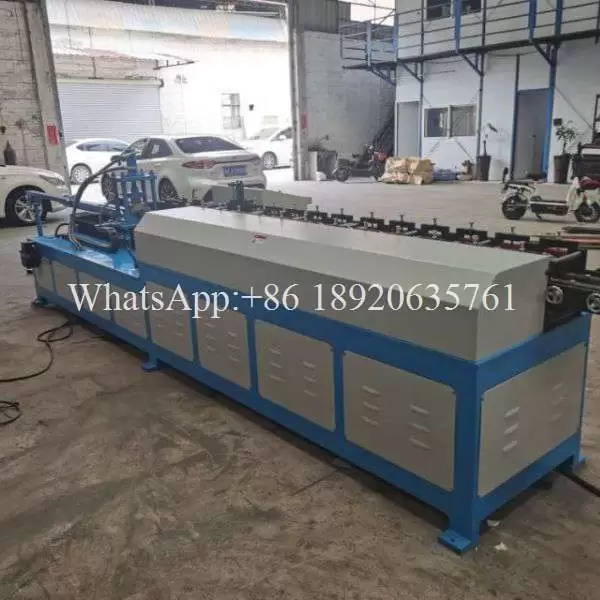

For years, we have been designing and manufacturing machinery that builds organized storage solutions around the world. While columns provide structure and beams carry the load, it is the shelf panels – the all-important platform – that directly carry the goods. Introducing our professional solution for increased surface efficiency: the shelves panel roll forming machine. Designed for high-volume, high-precision production of galvanized steel shelf panels, this machine transforms flat steel coils into durable, ready-to-use panels for shelving units, racking systems, workbenches and a wide range of storage applications.

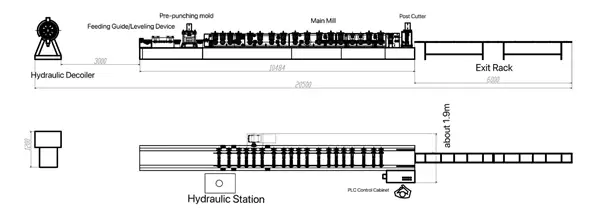

Workflow Diagram
More parameters
| Product Name | shelves panel roll forming machine |
| Main motor power | 15 kw（Siemens） |
| Hydraulic station | Vane pump, 7.5 kw |
| Produce speed | 20 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |
| Touch screen | Siemens or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-62℃ |
| Cutting blade material | Hydraulic back shear (three blades) cutter material Cr12MoV |
| Roller diameter | Φ75 mm |
| Voltage | 380v 60hz 3p be customized |
| Feeding thickness | 1.5-2.0 mm |
| Rows | 14 |
| Board height | 600-900 mm |

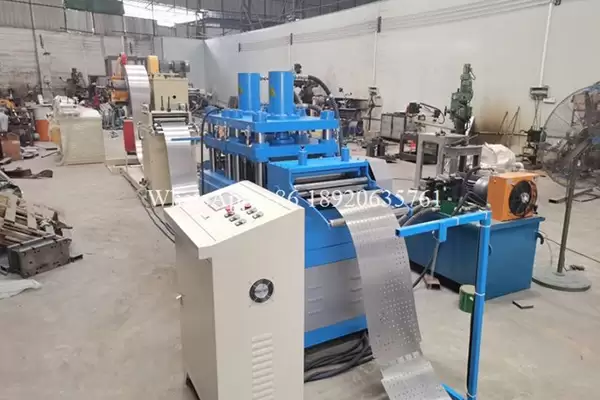

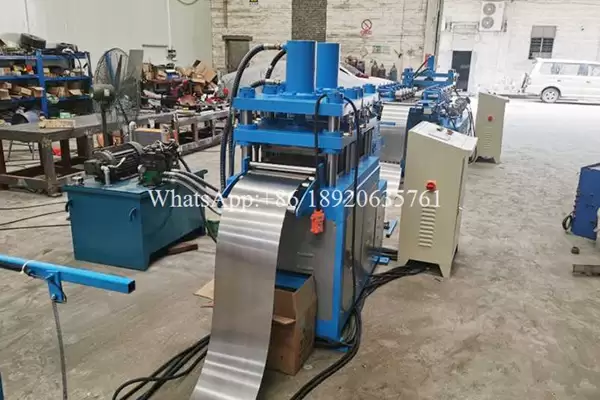

The Precision Workflow: From Coil to Finished Shelf Panel
Material Loading & Feeding: A coil of galvanized steel is loaded onto the decoiler. The leading edge is threaded through the leveler and entry guides.
Critical Leveling: The leveling unit meticulously removes any curvature or residual stresses, ensuring the strip is perfectly flat – the foundation for a flat shelf panel.
Pre-Punching (If Equipped): The flat strip passes through the punching station where servo or hydraulic punches create the desired hole pattern at high speed and precision.

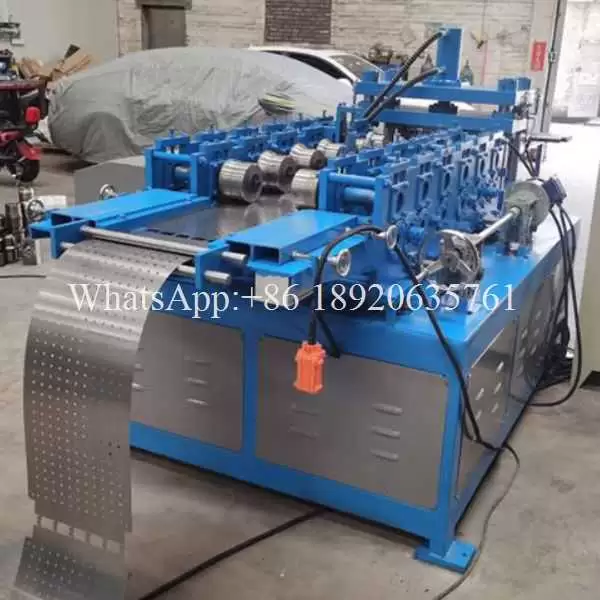

Progressive Panel Forming: The strip enters the main forming section:
Initial Forming: Early stations begin shaping the edges and initiating rib formations.

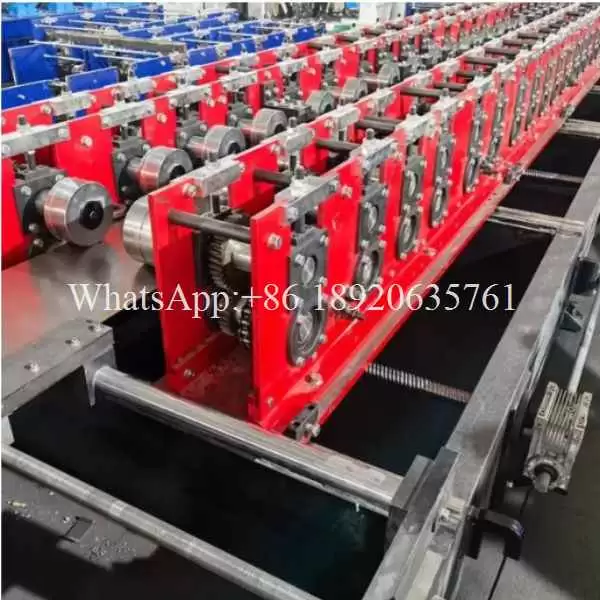

Rib & Edge Development: Subsequent stations progressively deepen and define the stiffening ribs and finalize the edge hemming/bending profiles. The geometry of the rolls is meticulously designed to achieve the required stiffness without causing material distortion or stretching. Throughout this stage, the shelves panel roll forming machine maintains consistent profile dimensions.
Final Sizing/Calibration: The last forming stations ensure the panel achieves its final precise shape, rib height, and overall flatness.

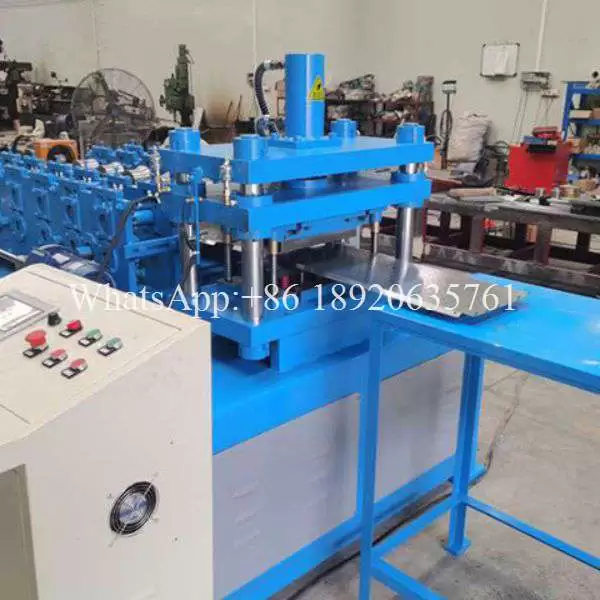

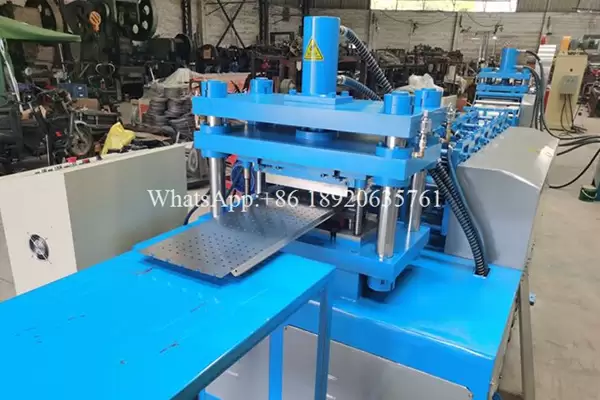

High-Speed Precision Cutting: The continuous panel stream reaches the flying cut-off. Perfectly synchronized with the line speed, the cutting mechanism (shear blade or saw) makes a clean, straight cut to the exact programmed length without stopping the line.

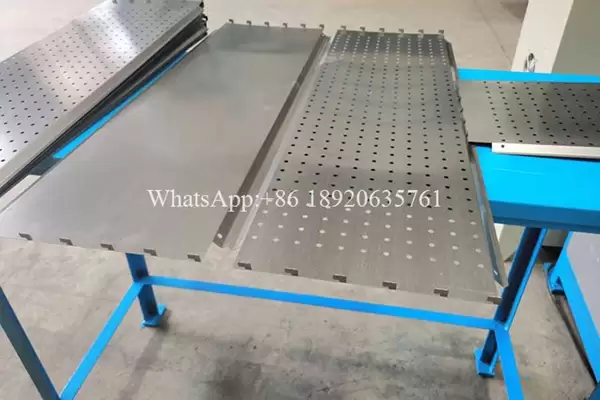

Automated Stacking & Handling: The cut panel is conveyed to the stacking system. Using belts, magnetic conveyors, and/or robotic arms, panels are neatly stacked in predefined bundles, ready for strapping, packaging, or shipment. This automation is a key efficiency feature of a modern shelves panel roll forming machine.

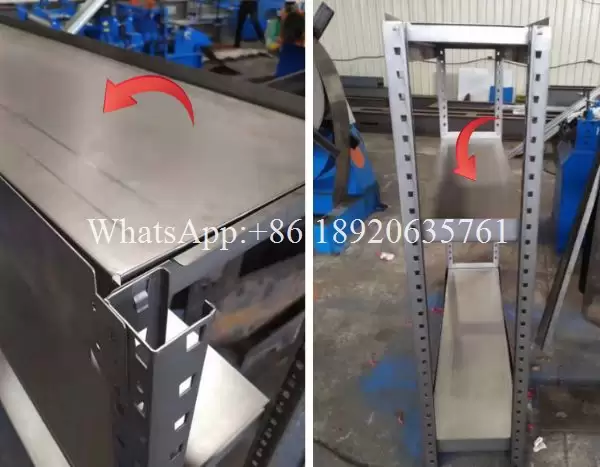

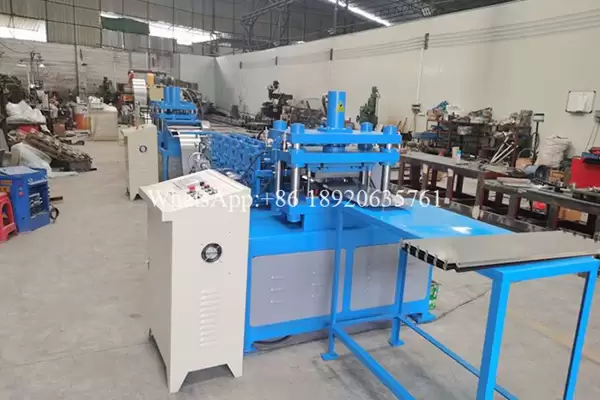

Application Scenario
Our photos with our customers
Why Choose Us?
About us
We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a shelves panel roll forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the shelves panel roll forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
