Overhead Track Roll Forming Machine Production Line
Precision-Driven for Smooth Movement: The Overhead Track Roll Forming Machine Production Line
In the realm of architectural hardware, the overhead track is the silent backbone of every sliding door system. Whether for residential barn doors, commercial partitions, or industrial warehouse entrances, the quality of the track directly determines the smoothness, durability, and safety of the entire door operation. Manufacturing this critical component demands exceptional precision, consistent straightness, and high production efficiency. Our Overhead Track Roll Forming Machine Production Line is specifically engineered to meet these exacting requirements. This automated, high-performance system is designed to transform steel coil into precision-formed overhead tracks with unparalleled accuracy and speed, offering manufacturers a complete solution for producing superior sliding door components.
More parameters
| Product Name | Heavy-Duty Overhead Track Roll Forming Machine Production Line |
| Transmission Method | Gearbox transmission, cast iron gantry, 50 mm thick. |
| Decoiler |
Hydraulic core expansion, hydraulic hold-down arm, motorized unwinding function; load capacity: 3 tons; unwinding inner diameter: 480–520 mm; maximum unwinding outer diameter: 1600 mm.
|
| Motor Power |
Two 18.5 kW K97 series hardened-tooth gear reducers; one 5.5 kW motor for the pressing and cutting pump station. |
| Produce speed | 8-15 m/min |
| Shaft material | 45# Steel |
| Rolling materials | Cr12 Mold Steel: Vacuum Quenching Treatment — Hardness HRC 58–62 |
| Screen Language | Chinese, English, Russian（Customizable） |
| Roller diameter | Φ90 mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 4.0(±0.03) mm |
| Rows | 20 |
Streamlined and Efficient Production Process

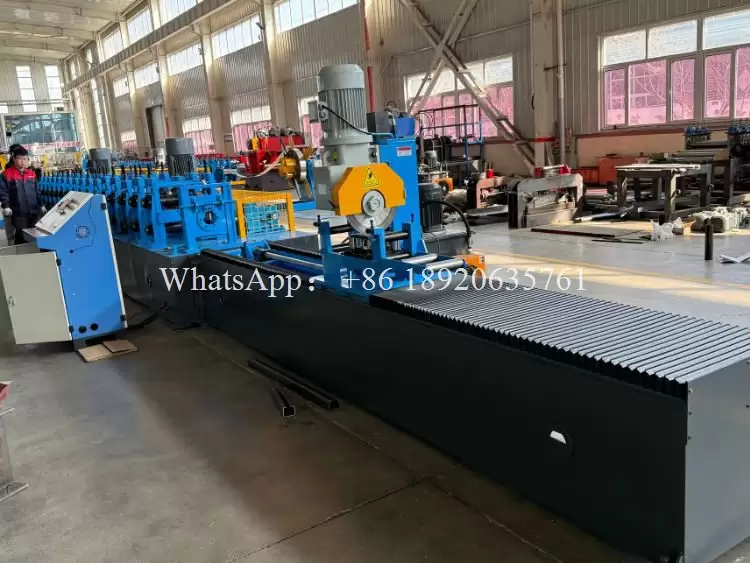

Hydraulic Decoiler → Precision Roll Forming Station → High-Speed Servo Saw Cutting
Main Components of the Overhead Track Roll Forming Machine Production Line

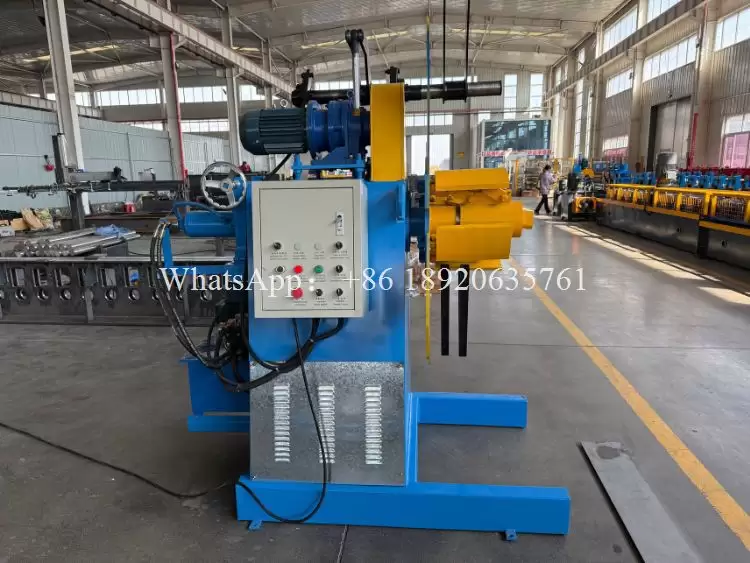

Decoiler: Hydraulic Core Expansion, Hydraulic Hold-down Arm, Motorized Uncoiling Function; Load Capacity: 3 tons; Uncoiling Inner Diameter: 480–520 mm; Maximum Uncoiling Outer Diameter: 1600 mm; Features: Elevated Base and Hold-down Arm.

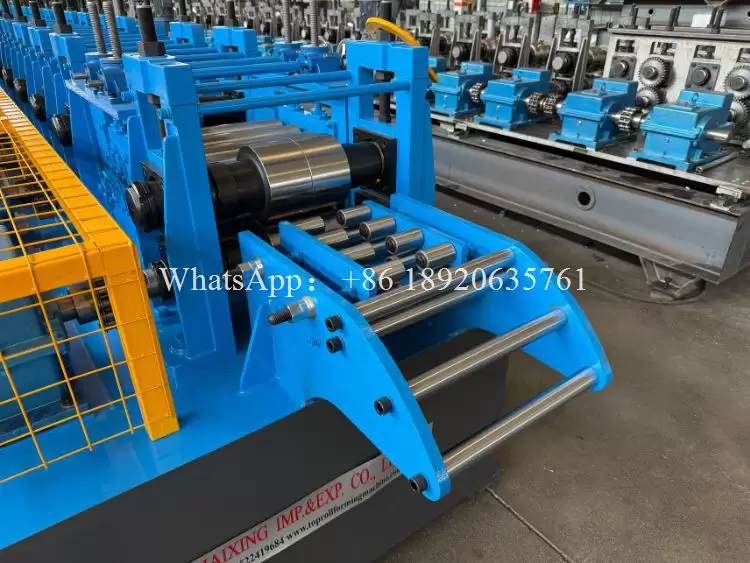

Feeding table: 1. 5-Rolls; 2. Leveling Shaft Diameter: 70 mm; 3. Material: 40Cr (High-Frequency Quenched)

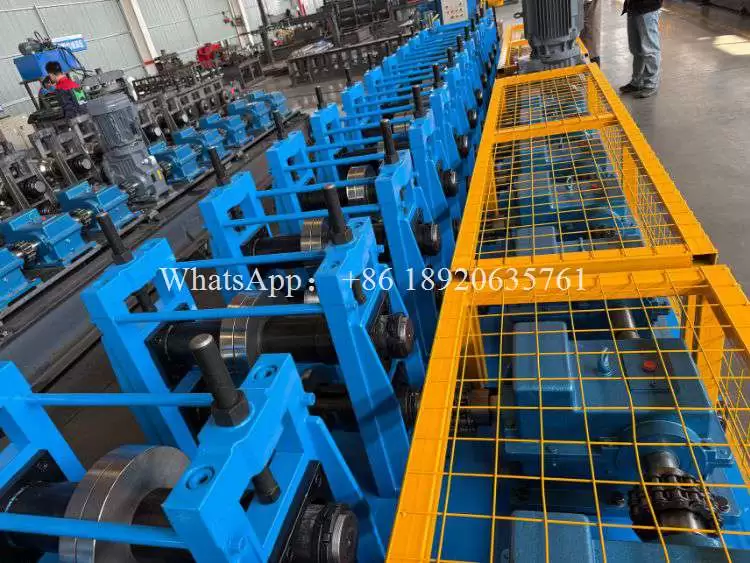

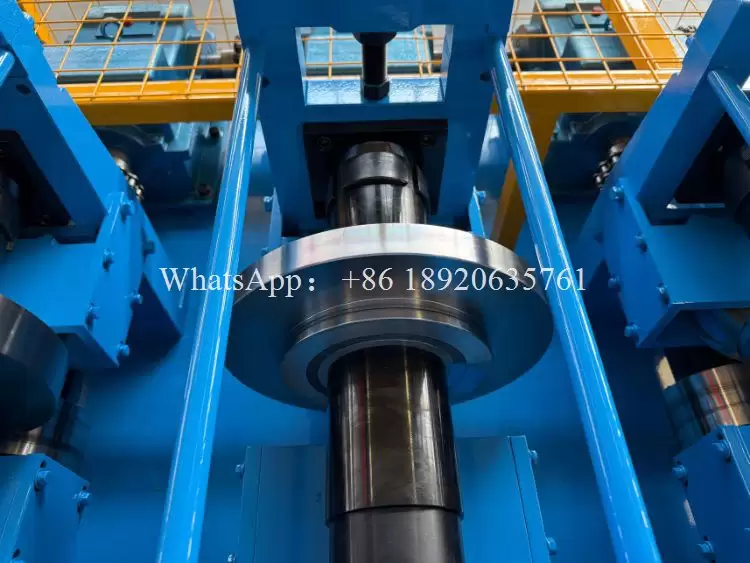

Roll forming Part: 20 Forming Stations; Roll Material: Cr12 Mold Steel (Vacuum Quenched), Hardness: HRC 58–62.
Motors: Two 18.5 kW K97 Series Hard-Tooth Gear Reducers

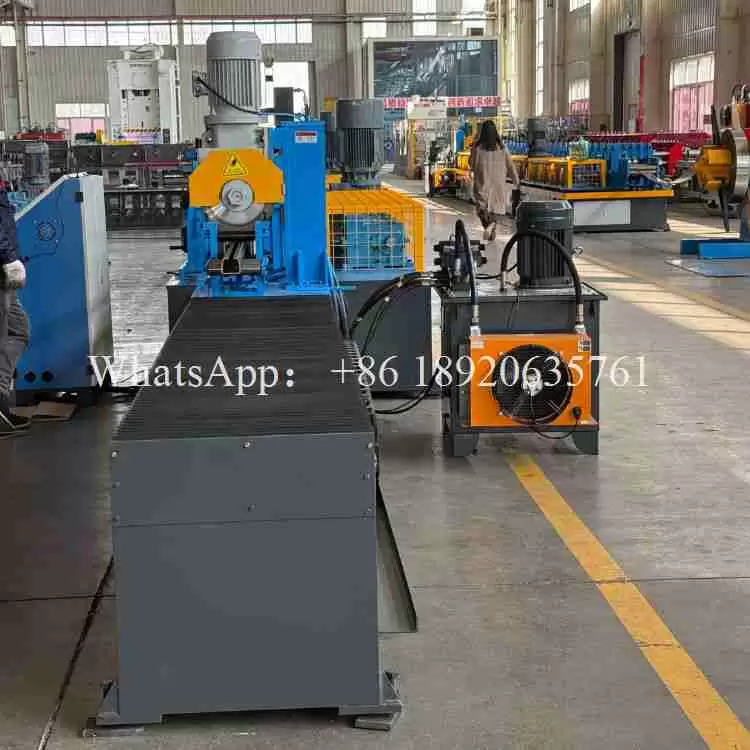

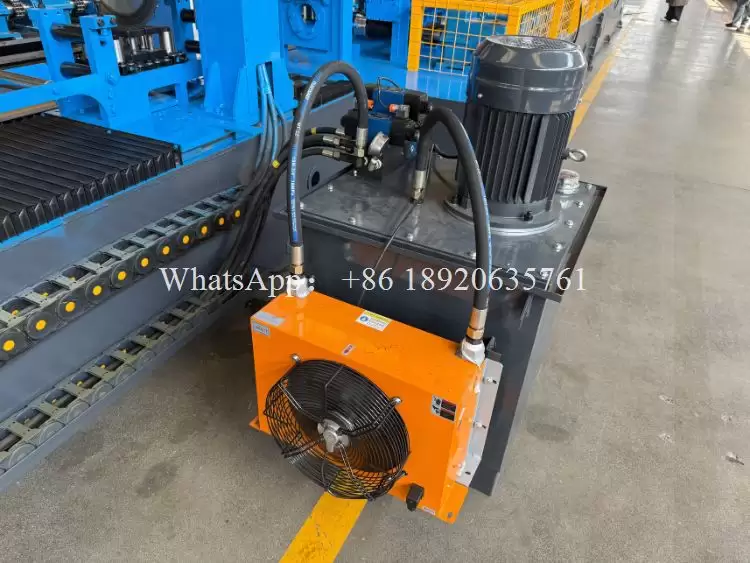

Cut-off Pump Station Motor: 5.5 kW

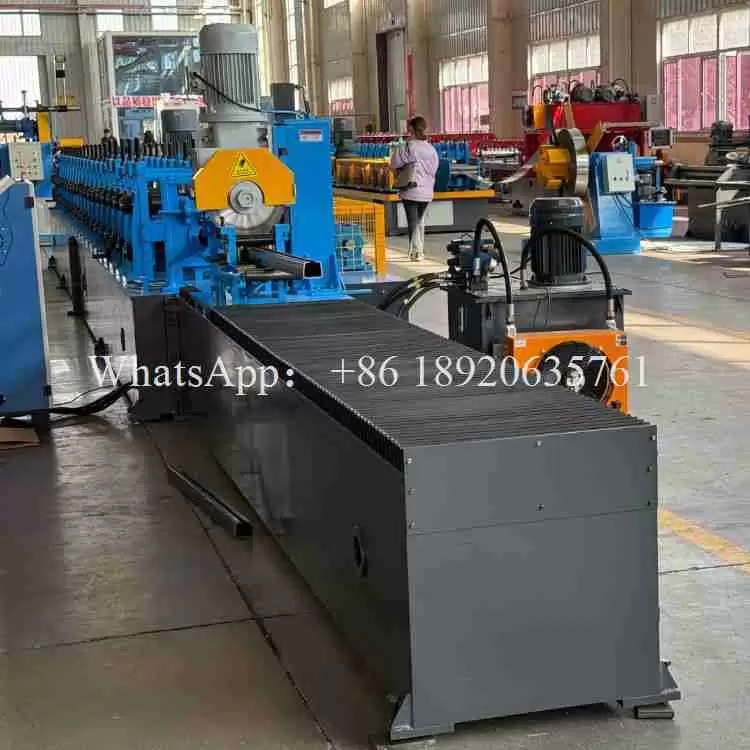

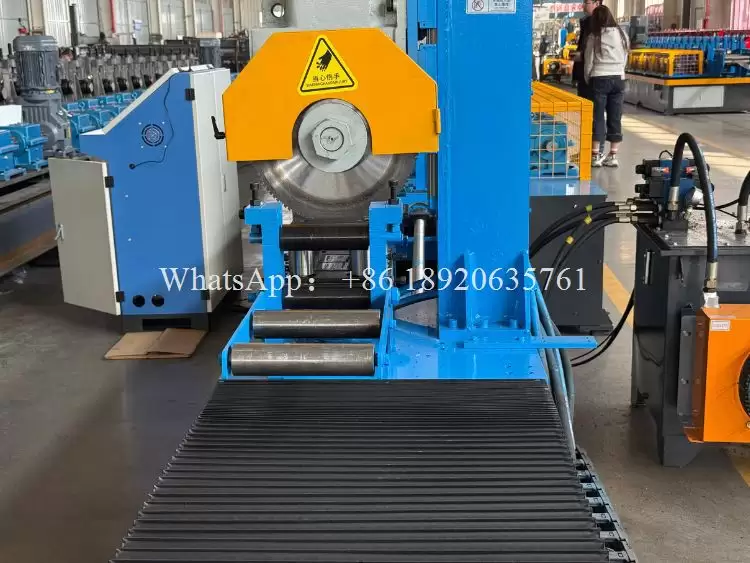

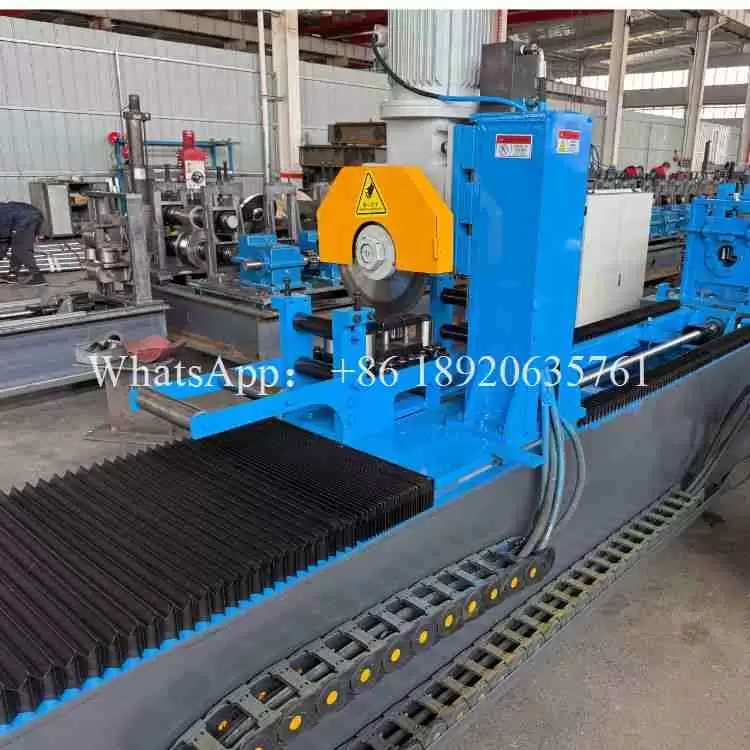

Cutting Blade: Servo Shearing, Saw Cut

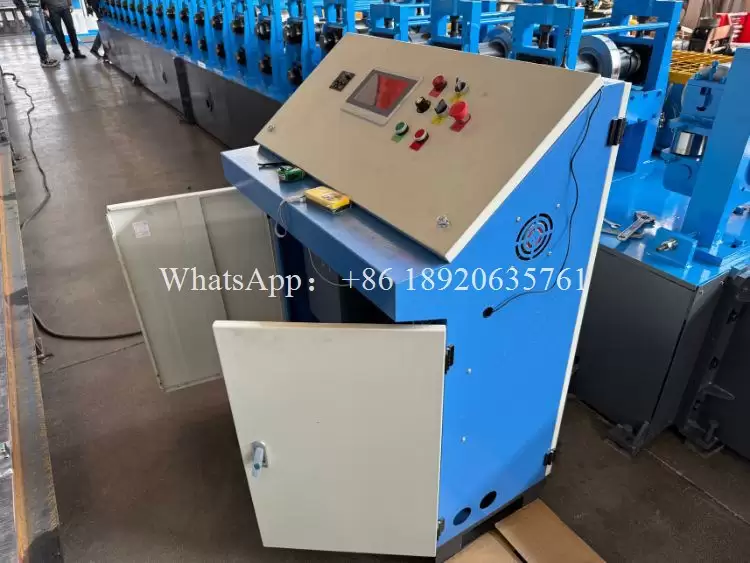

Electrical Control Box
Overhead Track Roll Forming Machine Production Line Key Advantages and Distinctive Features
• Uncompromising Precision and Straightness
• High Efficiency with Servo-Controlled Cutting
• Complete Customization Flexibility:
• Robust Construction for Continuous Operation:
• Comprehensive Technical Support
Application Scenarios
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Overhead Track Roll Forming Machine Production Line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Full-automatic Overhead Track Roll Forming Machine Production Line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
