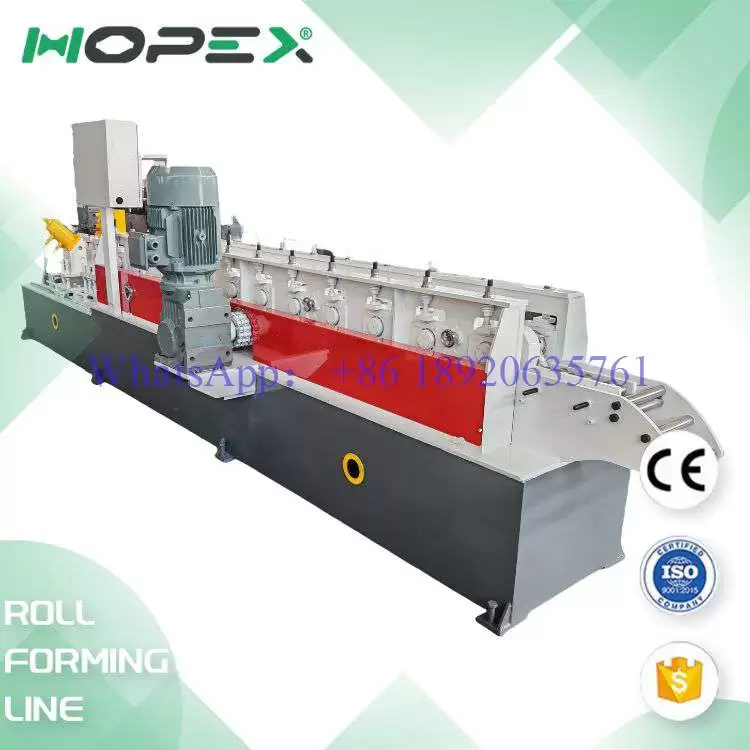

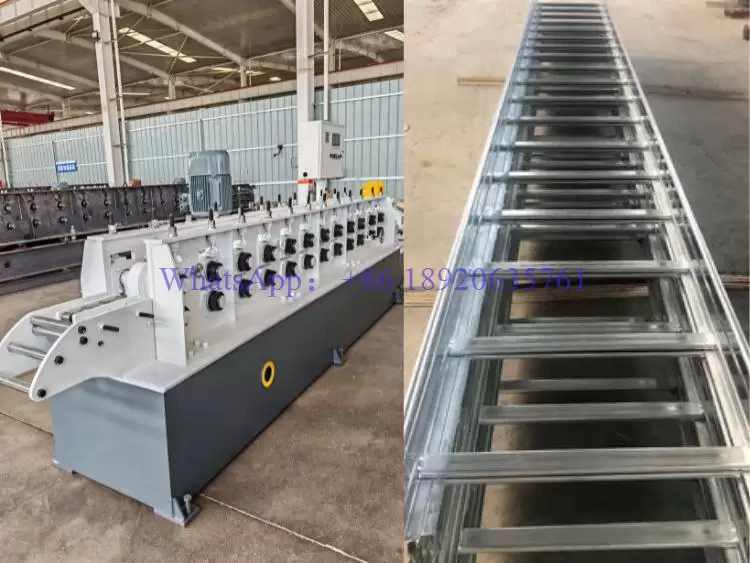

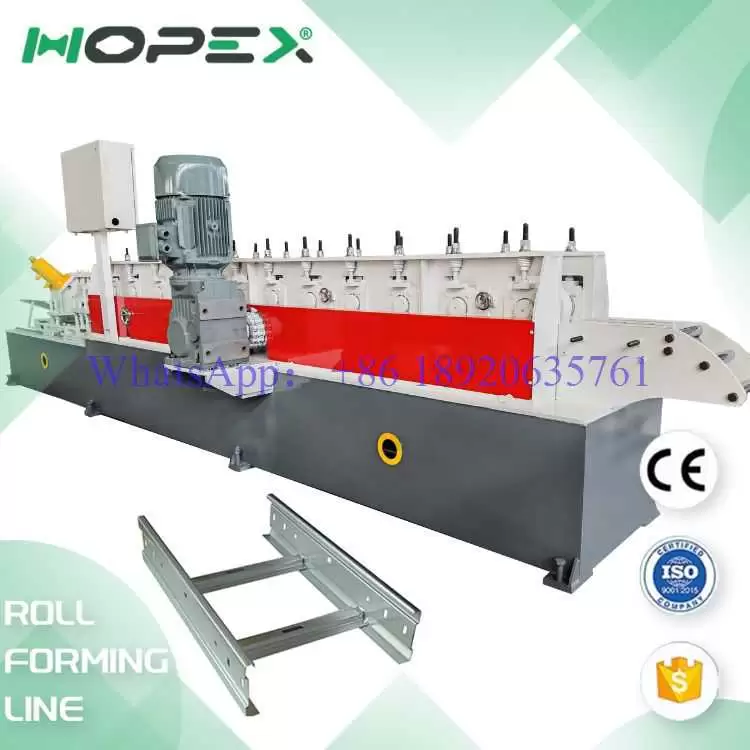

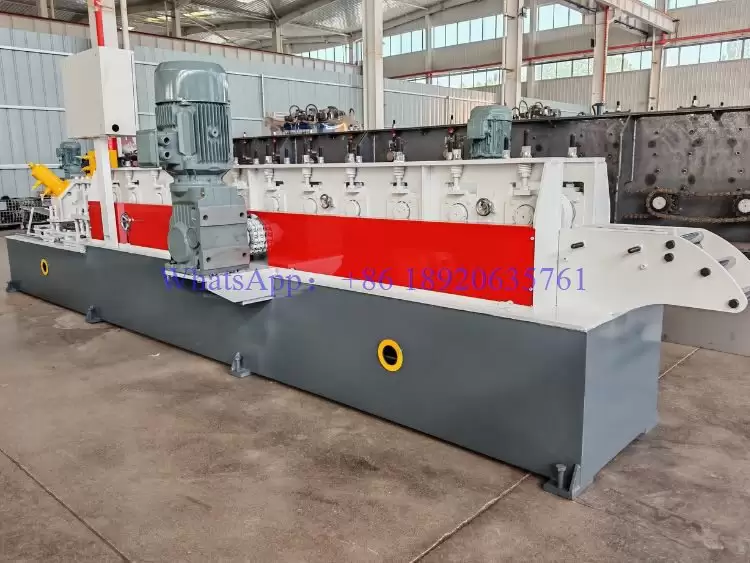

Cable Ladder Roll Forming Machine
Advanced Manufacturing Solutions with Cable Ladder Roll Forming Machine
The telecommunications and power distribution industries continue to evolve with increasing demands for reliable, durable, and customizable cable management systems. Proper cable organization is crucial for safety, maintenance, and operational efficiency in various applications, from industrial plants to commercial buildings. As a specialized manufacturer of cold roll forming equipment, we are proud to introduce our state-of-the-art Cable Ladder Roll Forming Machine, a complete production solution engineered to manufacture high-quality cable ladder systems with exceptional precision and efficiency. This advanced Cable Ladder Roll Forming Machine represents our commitment to delivering innovative manufacturing technology that meets the rigorous demands of modern cable management infrastructure.
Workflow Diagram
The production process of our Cable Ladder Roll Forming Machine incorporates a comprehensive, automated workflow that ensures consistent quality from raw material to finished product. The operation begins with an automatic decoiling system that feeds steel coils into the production line with precise tension control. The material then proceeds through a precision leveling mechanism that ensures perfect flatness before advancing to the punching and shearing station. Here, computer-controlled punching units create exact holes and cutouts according to project specifications. The heart of the system is the advanced roll forming section, where the steel strip passes through a series of engineered rollers that gradually shape it into the required cable ladder profiles. Following the forming stage, the automated receiving and stacking systems organize the finished products for convenient handling and shipment.
What truly distinguishes our Cable Ladder Roll Forming Machine is its exceptional customization capability, particularly in hole punching configurations. The equipment allows comprehensive adjustments to hole shapes, sizes, and spacing patterns, enabling manufacturers to produce cable ladders that meet specific installation requirements and load-bearing capacities. This flexibility ensures perfect compatibility with various cable types and installation environments. To support rapid project implementation, we provide an efficient 3-day drawing approval service. Our engineering team delivers detailed technical schematics and layout plans for client review, ensuring the production configuration meets all specifications before manufacturing begins.
What truly distinguishes our Cable Ladder Roll Forming Machine is its exceptional customization capability, particularly in hole punching configurations. The equipment allows comprehensive adjustments to hole shapes, sizes, and spacing patterns, enabling manufacturers to produce cable ladders that meet specific installation requirements and load-bearing capacities. This flexibility ensures perfect compatibility with various cable types and installation environments. To support rapid project implementation, we provide an efficient 3-day drawing approval service. Our engineering team delivers detailed technical schematics and layout plans for client review, ensuring the production configuration meets all specifications before manufacturing begins.
Beyond the advanced machinery, we provide comprehensive technical support to ensure optimal performance throughout the equipment's operational lifecycle. Our remote service program includes real-time video guidance from experienced engineers, who can assist with machine installation, operational training, maintenance procedures, and troubleshooting through digital platforms. This support system ensures that your Cable Ladder Roll Forming Machine maintains peak performance while minimizing potential downtime, regardless of your geographical location.
More parameters
| Product Name | Cable Ladder Roll Forming Machine |
| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |

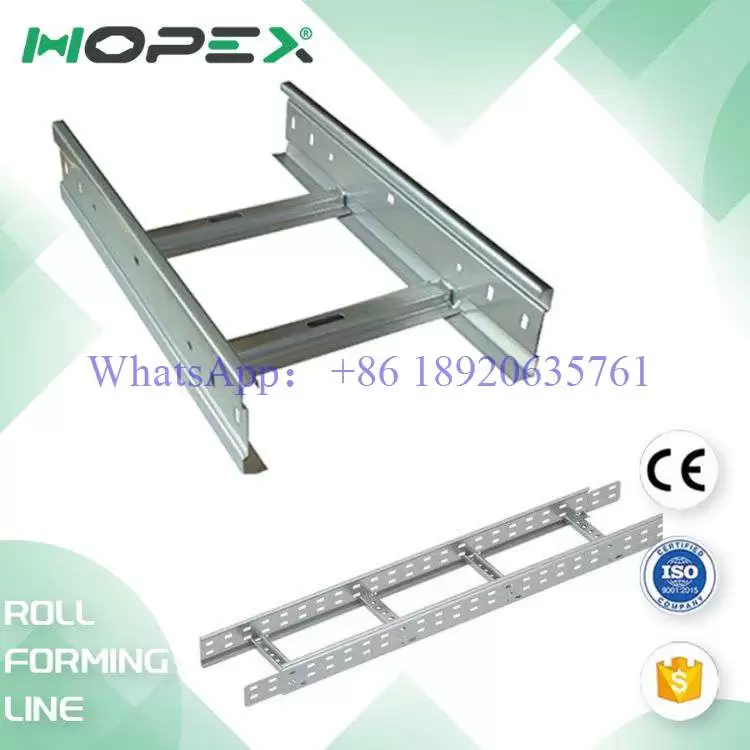

| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
Application Scenario
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Cable Ladder Roll Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Cable Ladder Roll Forming Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
